Navigation System (for CrewMax)

NAVIGATION: NAVIGATION SYSTEM (for CrewMax): 21-10: Panel Switch Error

DTC 21-10 - Panel Switch Error

DTC 21-11 - Touch Switch Error

DTC 23-10 - Panel Switch Error

DTC 23-11 - Touch Switch Error

DTC 24-10 - Panel Switch Error

DTC 24-11 - Touch Switch Error

DTC 25-10 - Panel Switch Error

DTC 25-11 - Touch Switch Error

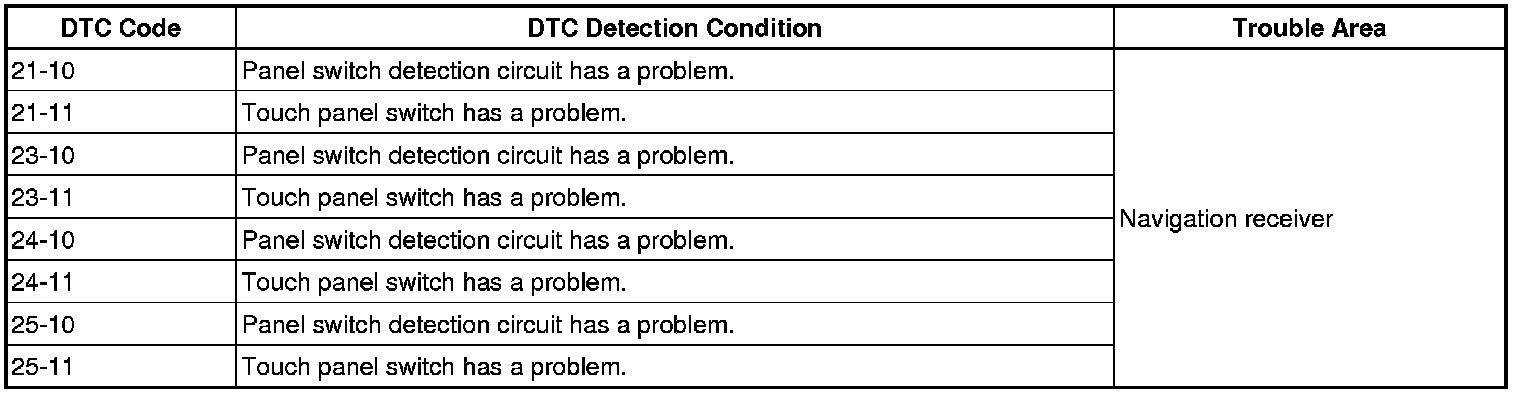

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs Navigation System (for CrewMax).

PROCEDURE

1. REPLACE NAVIGATION RECEIVER
(a) Replace the navigation receiver (for Column Shift Type).
(b) Replace the navigation receiver (for Floor Shift Type).
NEXT -- END
