Navigation System (for Double Cab)

NAVIGATION: NAVIGATION SYSTEM (for Double Cab): 58-44: Player Error

DTC 58-44 - Player Error

DTC 80-44 - Player Error

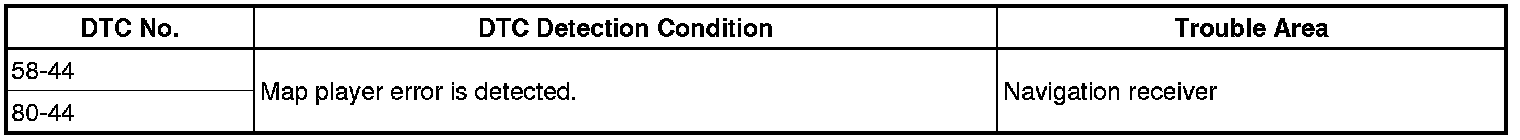

DESCRIPTION





INSPECTION PROCEDURE

HINT: After the inspection is completed, clear the DTCs (Navigation System (for Double Cab)).

PROCEDURE

1. CHECK NAVIGATION RECEIVER
(a) Check if a disc can be inserted or ejected normally.
OK:
A disc can be inserted or ejected normally.

Result





C -- REPLACE NAVIGATION RECEIVER
B -- REPLACE NAVIGATION RECEIVER
A -- Continue to next step.
2. DTC CLEAR AND RECHECK
(a) Clear the DTCs (Navigation System (for Double Cab)).
(b) Recheck for DTCs and check if the same trouble occurs again.
OK:
Same problem does not occur.

Result





C -- REPLACE NAVIGATION RECEIVER
B -- REPLACE NAVIGATION RECEIVER
A -- END
