2UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0451: Evaporative Emission Control System Pressure Sensor Range / Performance
DTC P0451 - Evaporative Emission Control System Pressure Sensor Range / Performance
DTC P0452 - Evaporative Emission Control System Pressure Sensor / Switch Low Input
DTC P0453 - Evaporative Emission Control System Pressure Sensor / Switch High Input
DTC SUMMARY
HINT: The canister pressure sensor is built into the canister pump module.
DESCRIPTION
The description can be found in the EVAP (Evaporative Emission) System (Component Tests and General Diagnostics).
MONITOR DESCRIPTION
1 DTC P0451: Canister pressure sensor noise or fixed/flat
If the canister pressure sensor voltage output fluctuates rapidly for 10 seconds, the ECM stops the EVAP system monitor. The ECM interprets this as noise from the canister pressure sensor, and stops the EVAP system monitor. The ECM then illuminates the MIL and sets the DTC.
Alternatively, if the sensor voltage output does not change for 10 seconds, the ECM interprets this as the sensor being fixed/flat, and stops the monitor. The ECM then illuminates the MIL and sets the DTC.
(Both malfunctions are detected by 2 trip detection logic.)
2 DTC P0452: Canister pressure sensor voltage low
If the canister pressure sensor output [pressure] is below 42.1 kPa-a (315.9 mmHg-a), the ECM interprets this as an open or short circuit malfunction in the canister pressure sensor or its circuit, and stops the EVAP system monitor. The ECM then illuminates the MIL and sets the DTC (1 trip detection logic).
3 DTC P0453: Canister pressure sensor voltage high
If the canister pressure sensor output [pressure] is 123.8 kPa-a (928.4 mmHg-a) or more, the ECM interprets this as an open or short circuit malfunction in the canister pressure sensor or its circuit, and stops the EVAP system monitor. The ECM then illuminates the MIL and sets the DTC (1 trip detection logic).
MONITOR STRATEGY

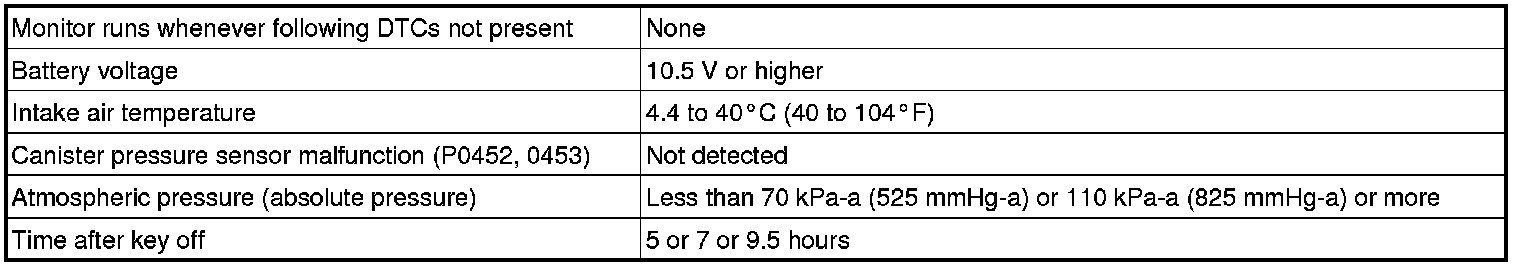

TYPICAL ENABLING CONDITIONS
P0451 (Noise monitor):
P0451 (Fixed/flat monitor):
P0452 and P0453:
TYPICAL MALFUNCTION THRESHOLDS
P0451: Canister pressure sensor noise
P0451: Canister pressure sensor fixed/flat
P0452: Canister pressure sensor low voltage
P0453: Canister pressure sensor high voltage

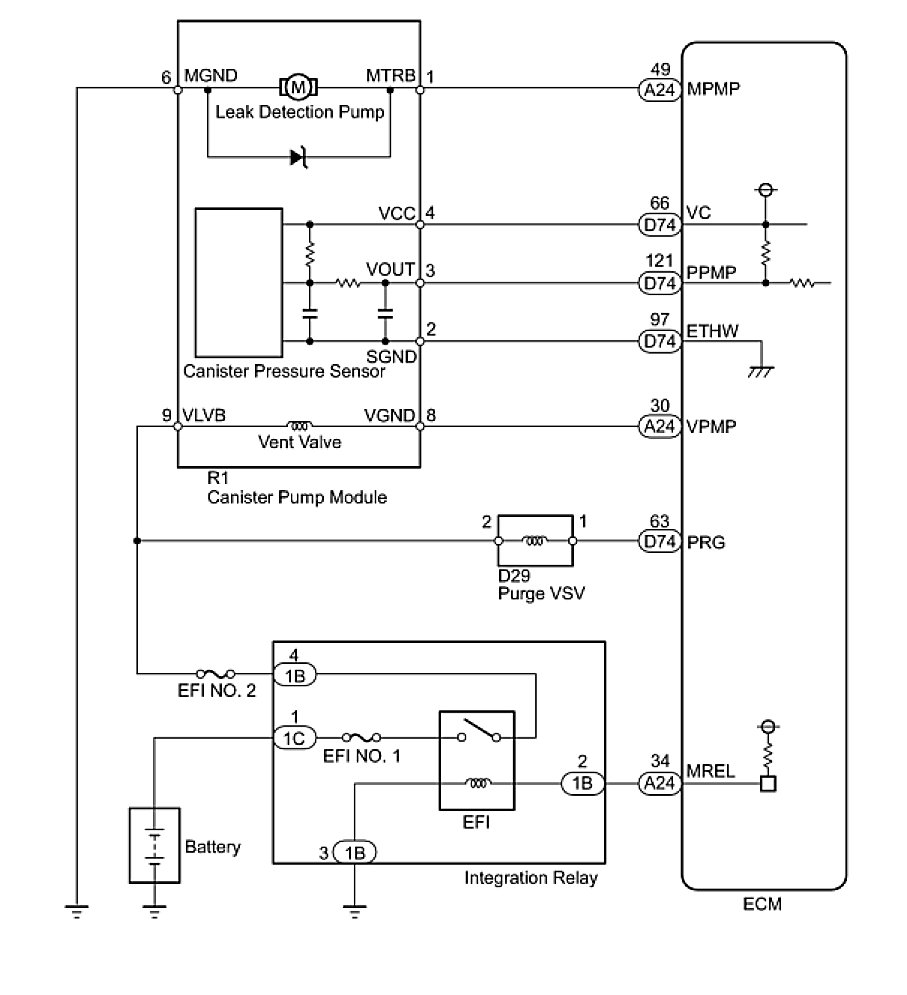

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
- When a vehicle is brought into the workshop, leave it as it is. Do not change the vehicle condition. For example, do not tighten the fuel cap.
- Do not disassemble the canister pump module.
- The Techstream is required to conduct the following diagnostic troubleshooting procedure.
PROCEDURE
1. CONFIRM DTC AND EVAP PRESSURE
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON (do not start the engine).
(c) Turn the Techstream ON.
(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(e) Read DTCs.
(f) Enter the following menus: Powertrain / Engine and ECT / Data List / EVAP / Vapor Pressure Pump.
(g) Read the EVAP (Evaporative Emission) pressure displayed on the Techstream.
Result
C -- GO TO EVAP SYSTEM
B -- CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
A -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
(a) Turn the ignition switch off.
(b) Disconnect the D74 ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Result
B -- REPLACE ECM
A -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
(a) Disconnect the R1 canister pump module connector.
(b) Disconnect the D74 ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Result
B -- REPAIR OR REPLACE HARNESS OR CONNECTOR
A -- REPLACE CHARCOAL CANISTER ASSEMBLY
4. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
(a) Disconnect the R1 canister pump module connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
(c) Turn the ignition switch to ON.
(d) Measure the voltage according to the value(s) in the table below.
Standard voltage:
Result
B -- REPAIR OR REPLACE HARNESS OR CONNECTOR
A -- Continue to next step.
5. REPLACE CHARCOAL CANISTER ASSEMBLY
(a) Replace the canister assembly (Removal).
NOTE: When replacing the canister, check the canister pump module interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose.
NEXT -- CHECK WHETHER DTC OUTPUT RECURS (AFTER REPAIR)
6. REPAIR OR REPLACE HARNESS OR CONNECTOR
HINT: If the exhaust tailpipe has been removed, go to the next step before reinstalling it.
NEXT -- CHECK WHETHER DTC OUTPUT RECURS (AFTER REPAIR)
7. REPLACE ECM
(a) Replace the ECM (Removal).
NEXT -- Continue to next step.
8. CHECK WHETHER DTC OUTPUT RECURS (AFTER REPAIR)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON and turn the Techstream ON.
(c) Wait for at least 60 seconds.
(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.
HINT: If no pending DTCs are displayed on the Techstream, the repair has been successfully completed.
NEXT -- COMPLETED
