Removal
1NZ-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:REMOVAL 1.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2.
REMOVE ENGINE UNDER COVER RH
3.

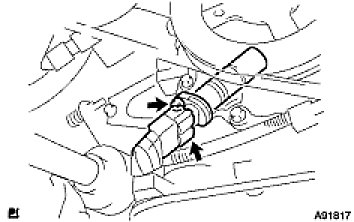

REMOVE
CRANKSHAFT POSITION SENSOR (a)
Disconnect the crankshaft position sensor connector.
(b)
Remove the bolt and remove the
crankshaft position sensor.
