Computers and Control Systems: Description and Operation








1NZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM:

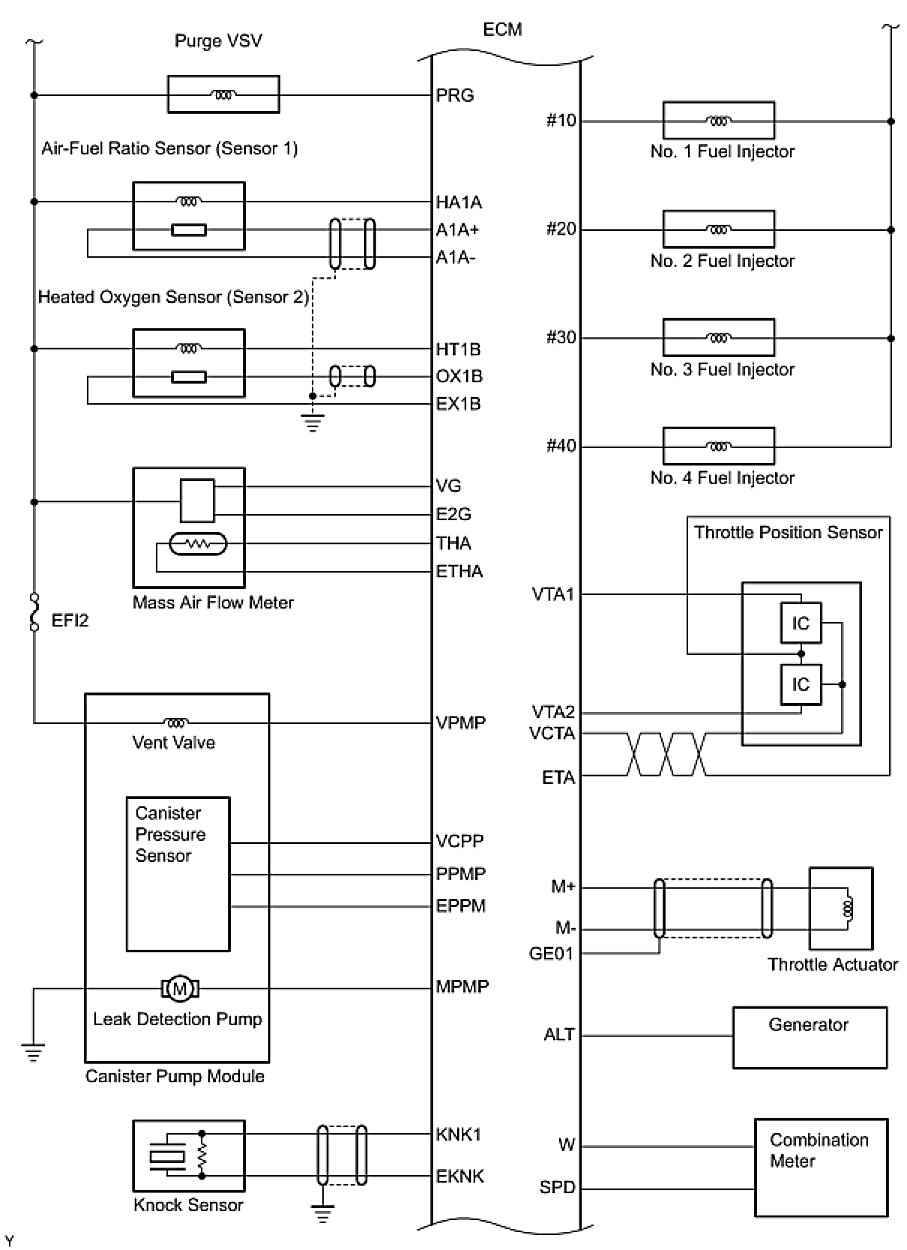

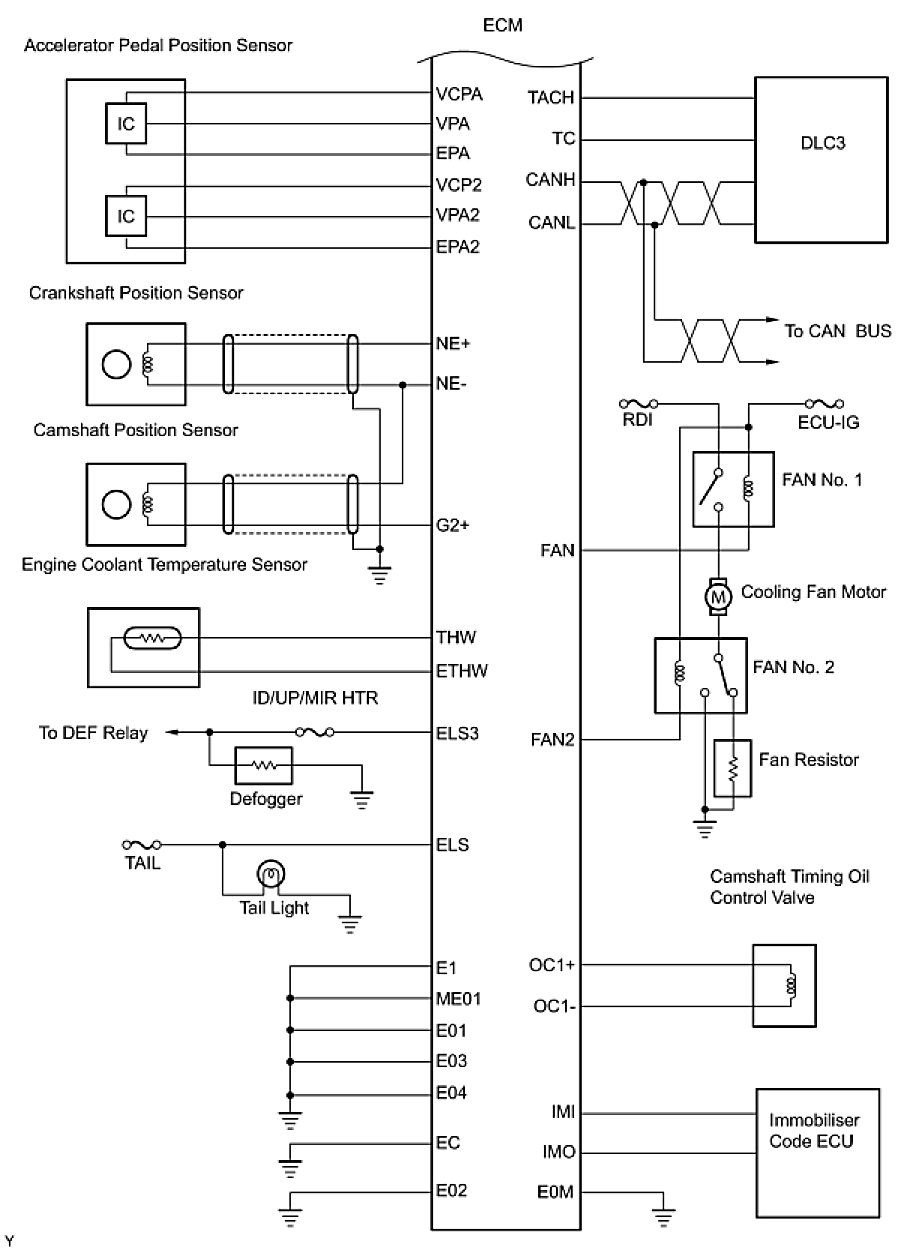

SYSTEM DIAGRAM
