Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2008
>>
Yaris L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

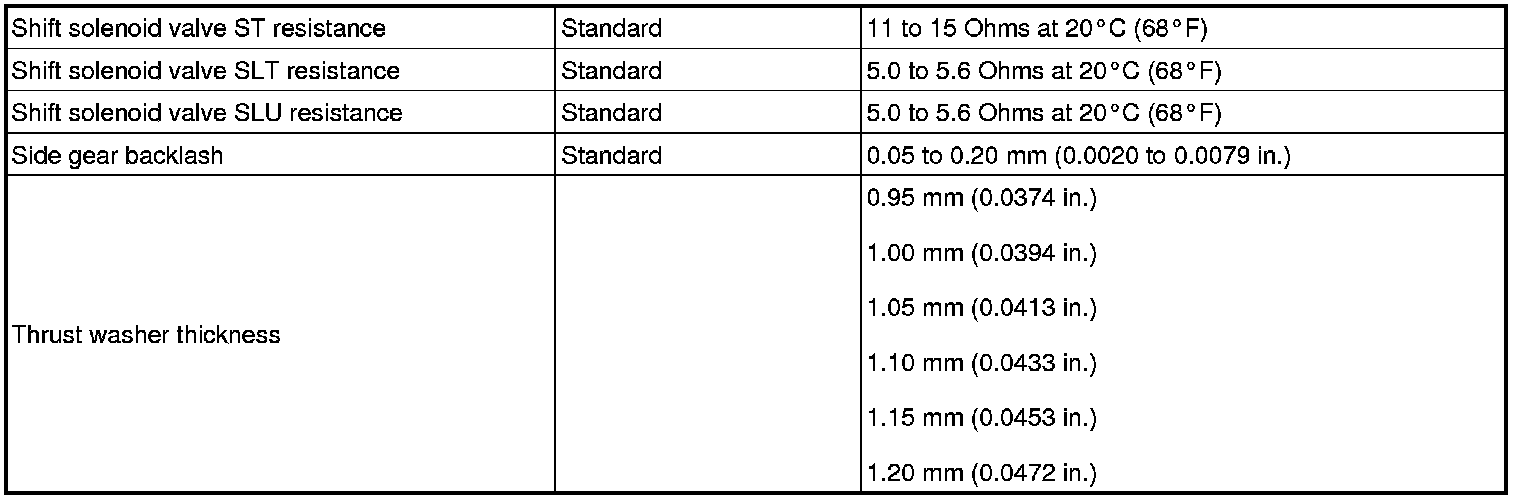

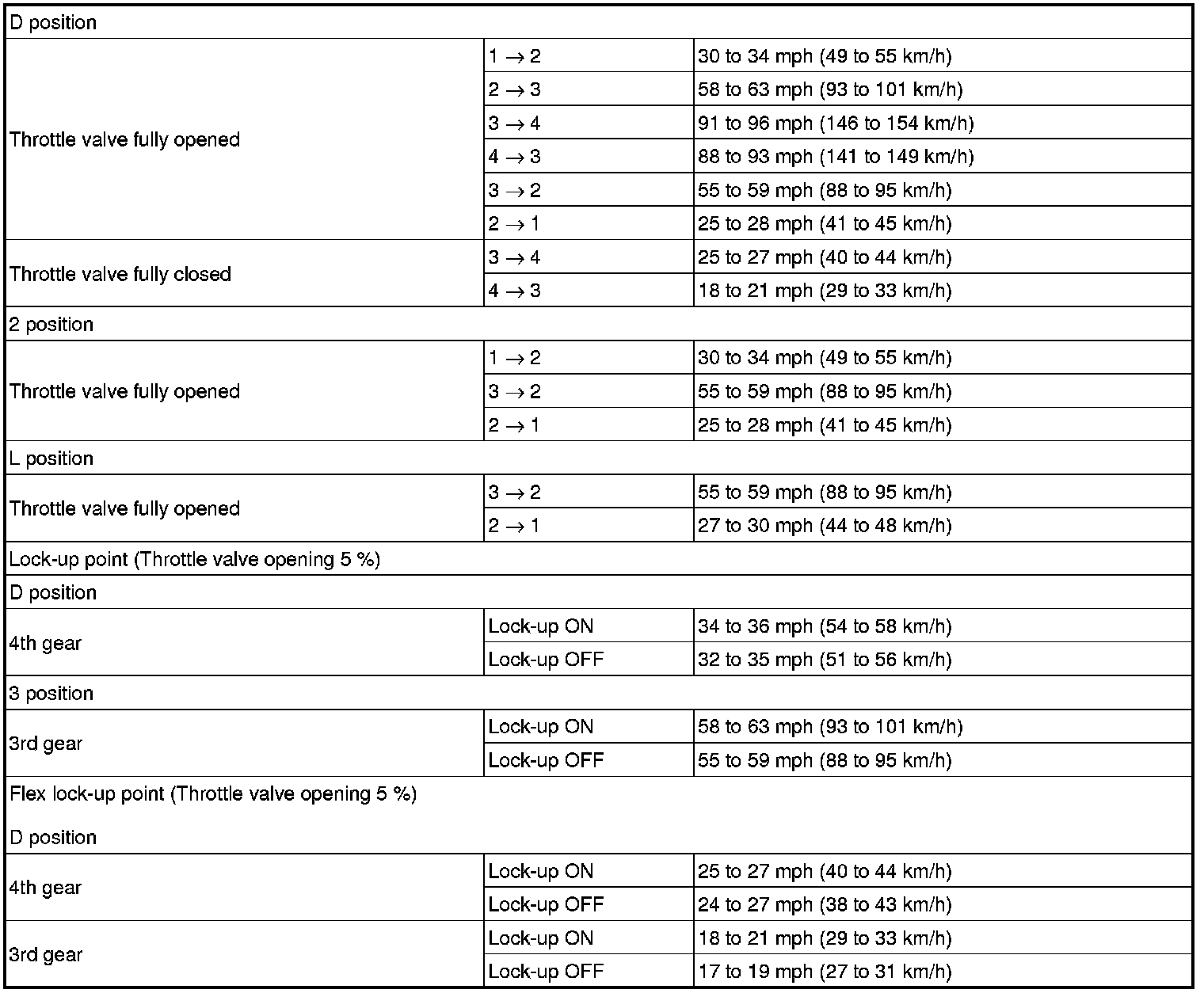

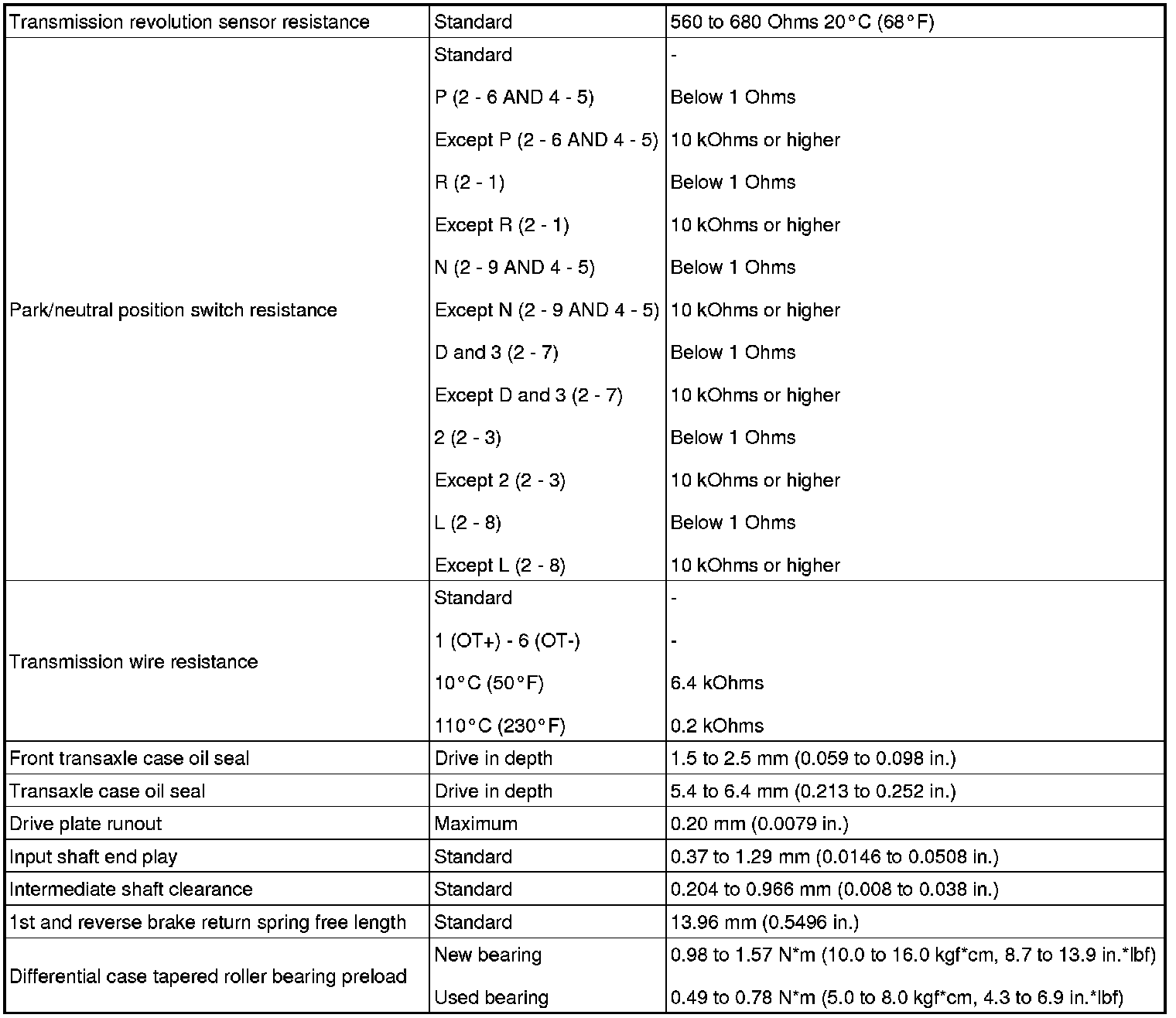

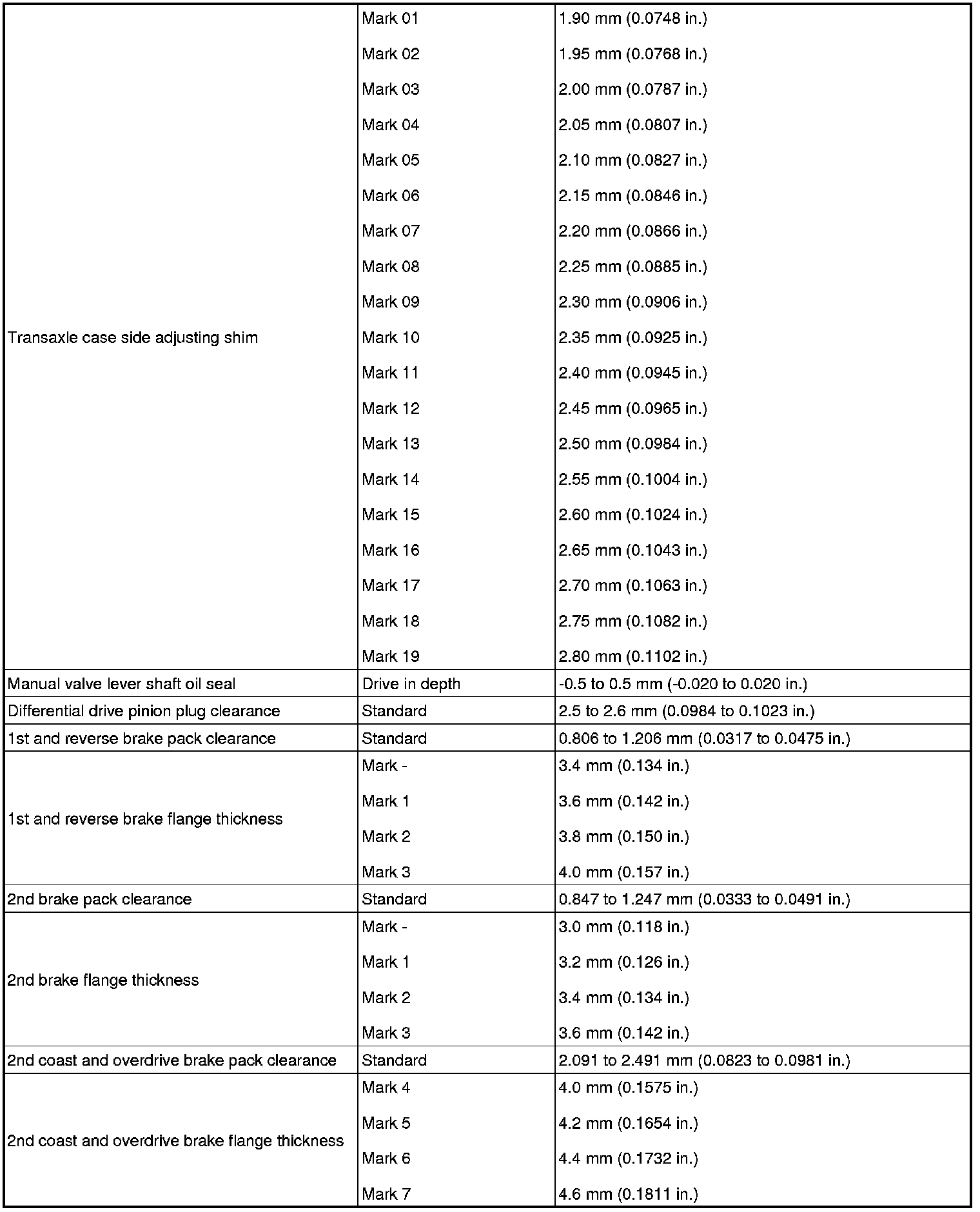

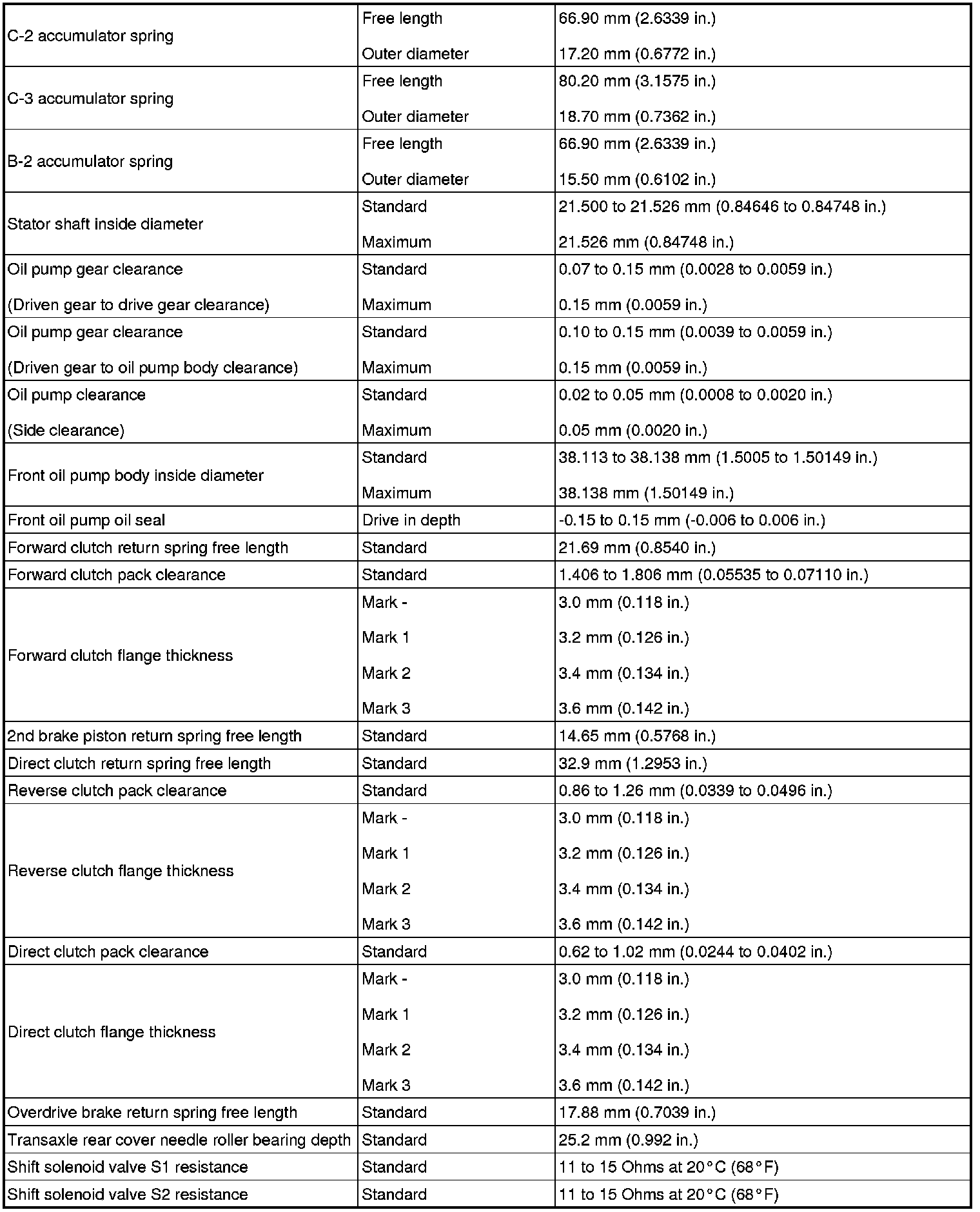

SERVICE SPECIFICATIONS: U340E AUTOMATIC TRANSAXLE:
SERVICE DATA
AUTOMATIC TRANSAXLE
