U340E Automatic Transaxle
>>
Torque Specifications
Torque Specifications
SERVICE SPECIFICATIONS: U340E AUTOMATIC TRANSAXLE:

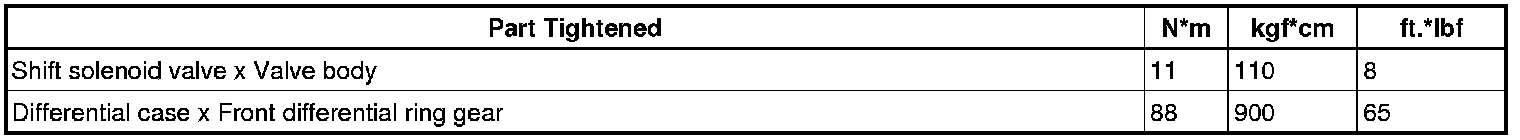

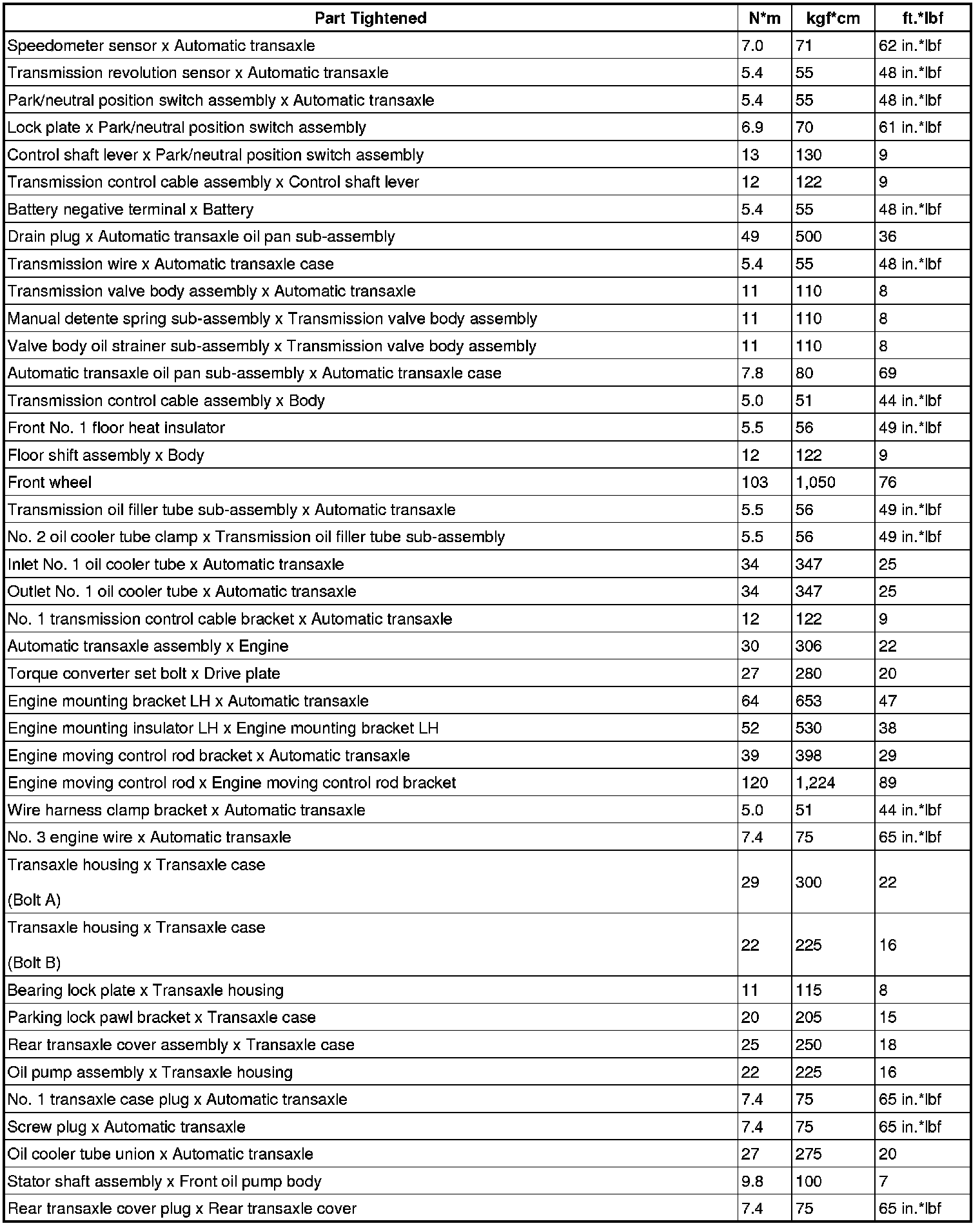

TORQUE SPECIFICATIONS
