Flywheel





Torque: 49 Nm (500 kgf-cm, 38 ft-lbf)

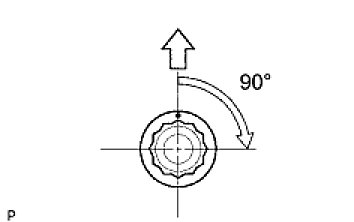

Mark a paint mark on each bolt head on the engine upper side.





Tighten the bolts 90° in the sequence shown in the illustration.
