Torque Specifications

SERVICE SPECIFICATIONS: AIR CONDITIONING:

TORQUE SPECIFICATIONS

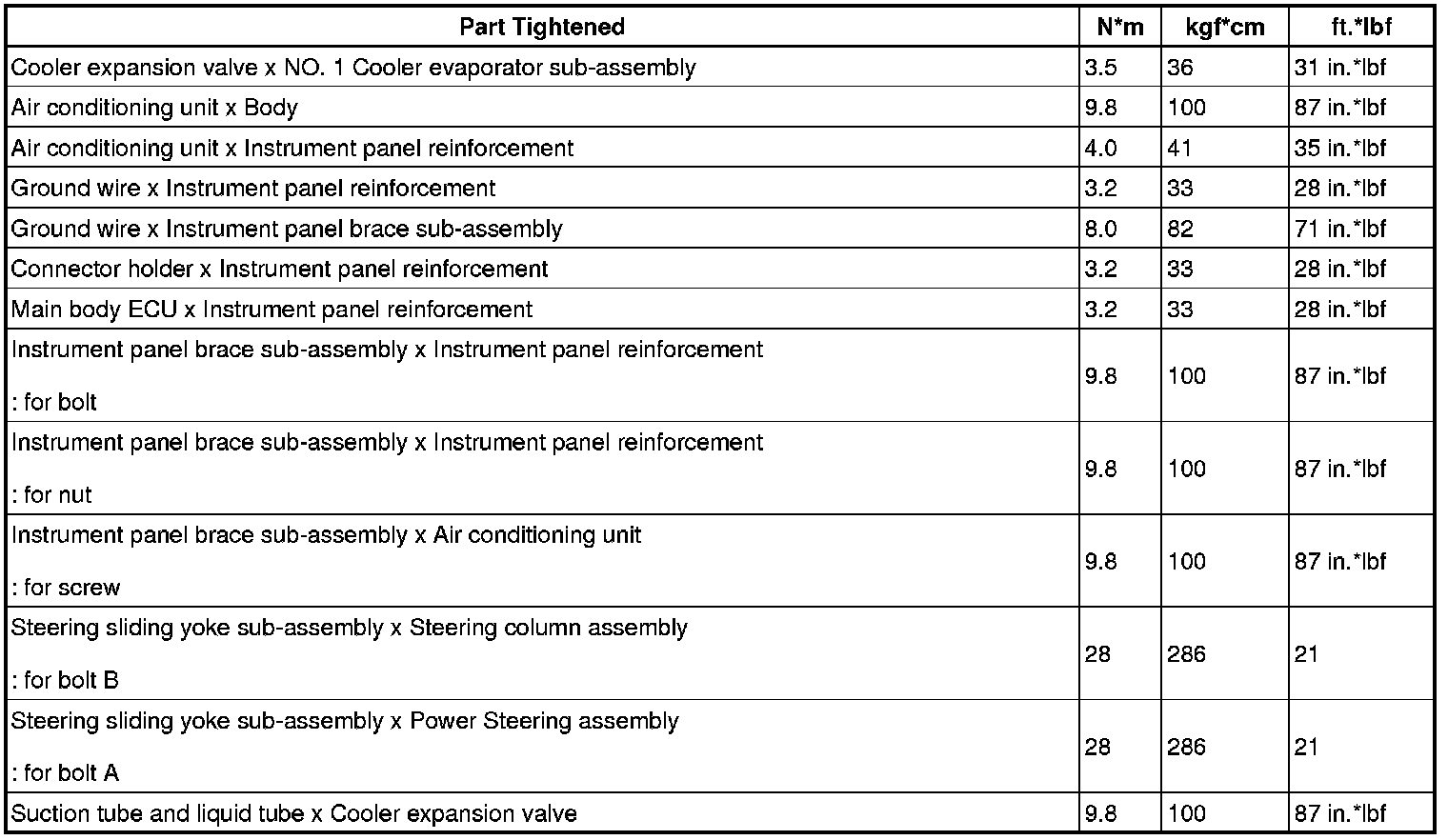

AIR CONDITIONING UNIT

COMPRESSOR AND PULLEY

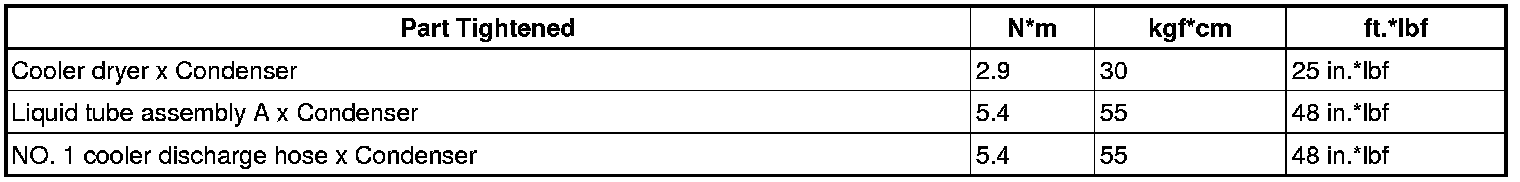

CONDENSER
