Torque Specifications

SERVICE SPECIFICATIONS: LIGHTING:

TORQUE SPECIFICATIONS

HEADLIGHT ASSEMBLY (for Sedan):

HEADLIGHT ASSEMBLY (for Hatchback):

SIDE TURN SIGNAL LIGHT ASSEMBLY (for Hatchback):

FOG LIGHT ASSEMBLY (for Sedan):

FOG LIGHT ASSEMBLY (for Hatchback):

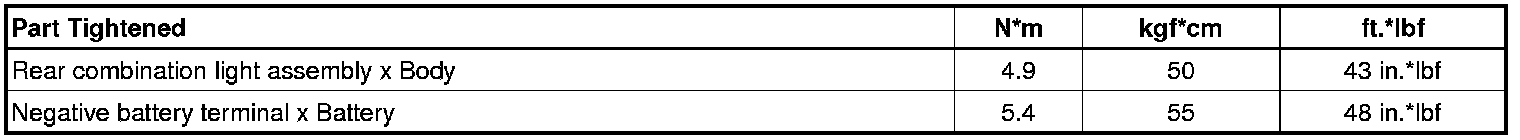

REAR COMBINATION LIGHT ASSEMBLY (for Sedan):

REAR COMBINATION LIGHT ASSEMBLY (for Hatchback):

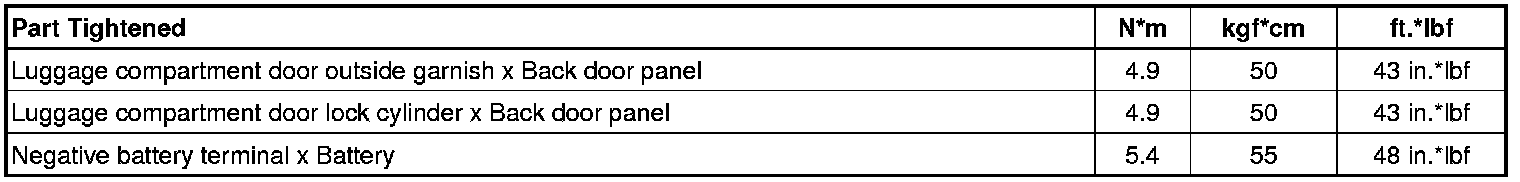

LICENSE LIGHT ASSEMBLY (for Sedan):

LICENSE LIGHT ASSEMBLY (for Hatchback):

HIGH MOUNTED STOP LIGHT ASSEMBLY (for Sedan with Rear Spoiler):

HIGH MOUNTED STOP LIGHT ASSEMBLY (for Sedan without Rear Spoiler):

HIGH MOUNTED STOP LIGHT ASSEMBLY (for Hatchback):

MAP LIGHT:

ROOM LIGHT:

LUGGAGE COMPARTMENT ROOM LIGHT (for Sedan):

LUGGAGE COMPARTMENT ROOM LIGHT (for Hatchback):

HEADLIGHT DIMMER SWITCH:

HAZARD WARNING SWITCH (for Sedan):

HAZARD WARNING SWITCH (for Hatchback):

STOP LIGHT SWITCH (for Sedan):

STOP LIGHT SWITCH (for Hatchback):

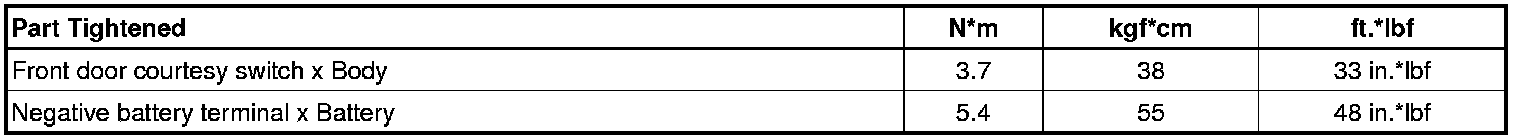

FRONT DOOR COURTESY SWITCH (for Sedan):

FRONT DOOR COURTESY SWITCH (for Hatchback):

REAR DOOR COURTESY SWITCH:

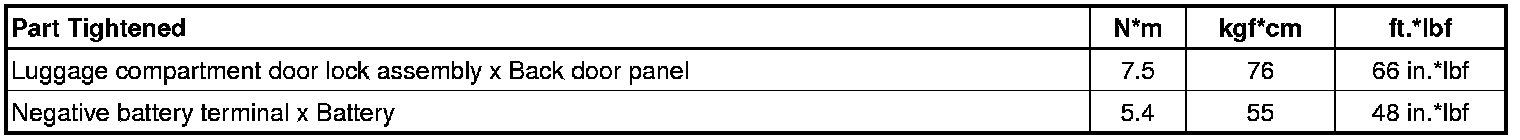

BACK DOOR COURTESY SWITCH (for Sedan):

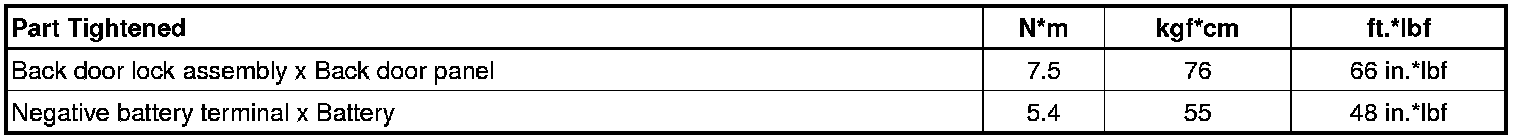

BACK DOOR COURTESY SWITCH (for Hatchback):

FOG LIGHT RELAY (for Sedan):

FOG LIGHT RELAY (for Hatchback):
