Installation
WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH (for Hatchback):INSTALLATION 1.
INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
(a)

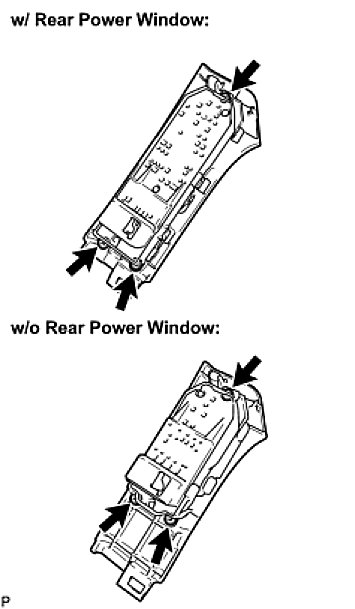

Install the power window regulator master switch with the 3 screws.
2.
INSTALL FRONT ARMREST BASE PANEL UPPER
Reassembly 3.
INSTALL DOOR ARMREST COVER
Reassembly 4.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
