Disassembly

AIR CONDITIONING: AIR CONDITIONING PANEL: DISASSEMBLY

DISASSEMBLY

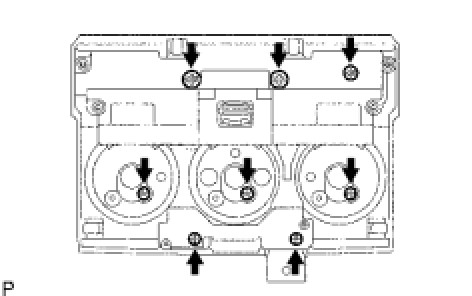

1. REMOVE COOLER CONTROL SWITCH BULB (EXCEPT INDEPENDENCE TEMPERATURE CONTROL)





(a) Remove the 8 cooler control switch bulbs from the air conditioning control assembly.

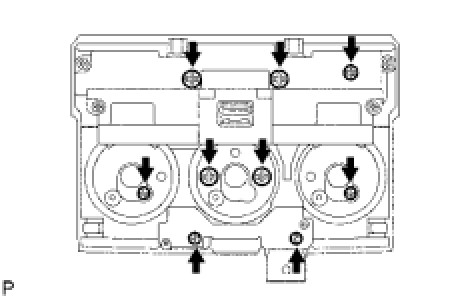

2. REMOVE COOLER CONTROL SWITCH BULB (INDEPENDENCE TEMPERATURE CONTROL)





(a) Remove the 9 cooler control switch bulbs from the air conditioning control assembly.
