Rod Bearing Cap Torque and Sequence

PISTON SUB-ASSEMBLY WITH CONNECTING ROD

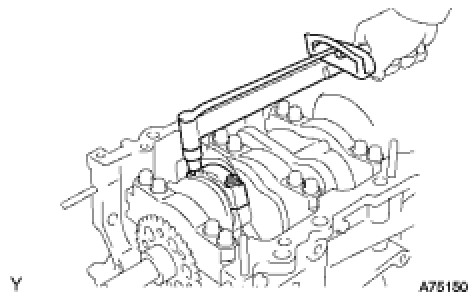

Tighten the bolts alternately with the specified torque.

Torque 25 Nm (250 kgf-cm, 18 ft-lbf)





Mark the front side of each connecting cap bolt with paint.
Retighten the cap bolts 90° as shown.
Check that the crankshaft turns smoothly.
