Vehicle Lifting: Service and Repair








INTRODUCTION: REPAIR INSTRUCTION: VEHICLE LIFT AND SUPPORT LOCATIONS

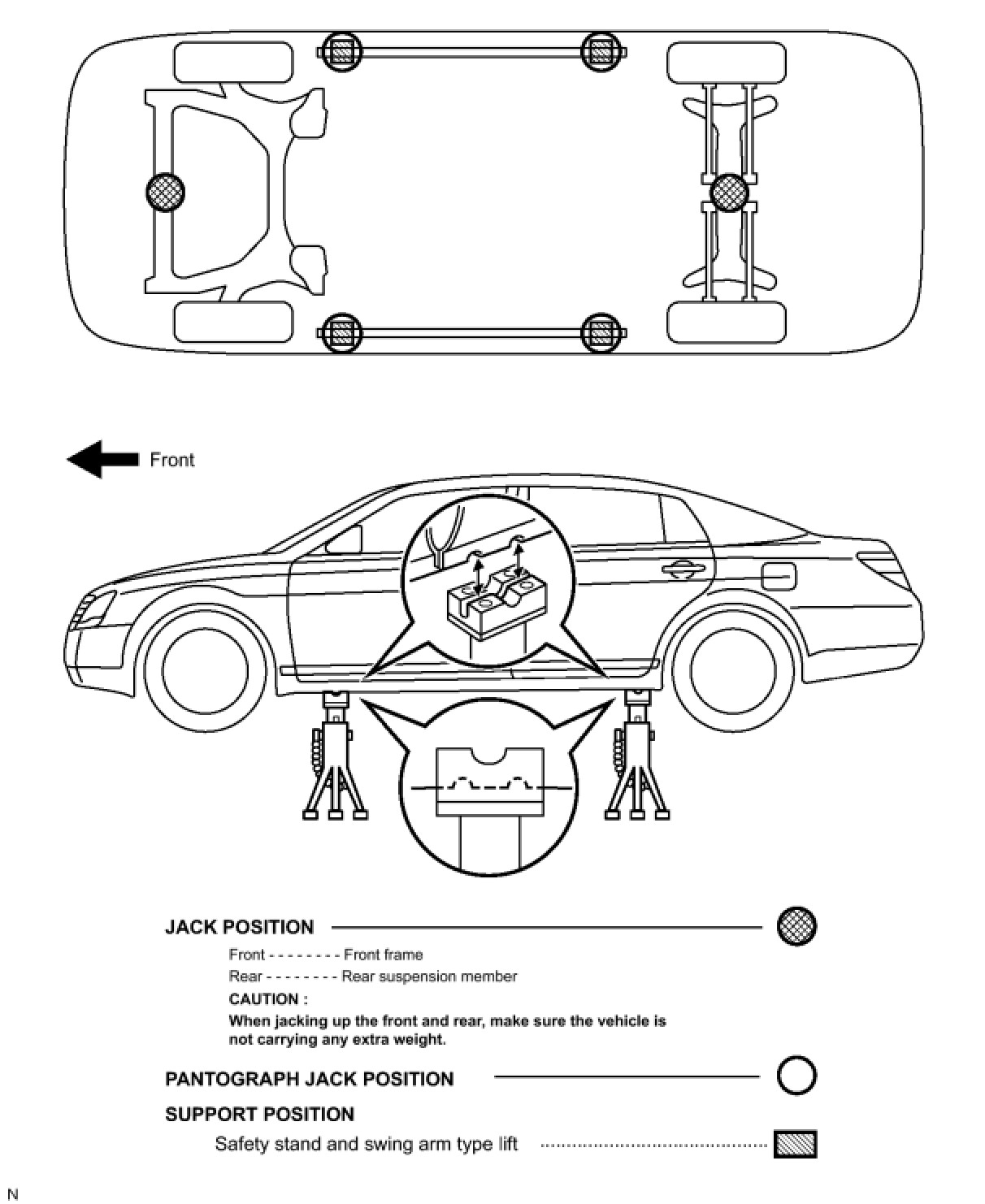

VEHICLE LIFT AND SUPPORT LOCATIONS
