Steering Column Control Module: Locations

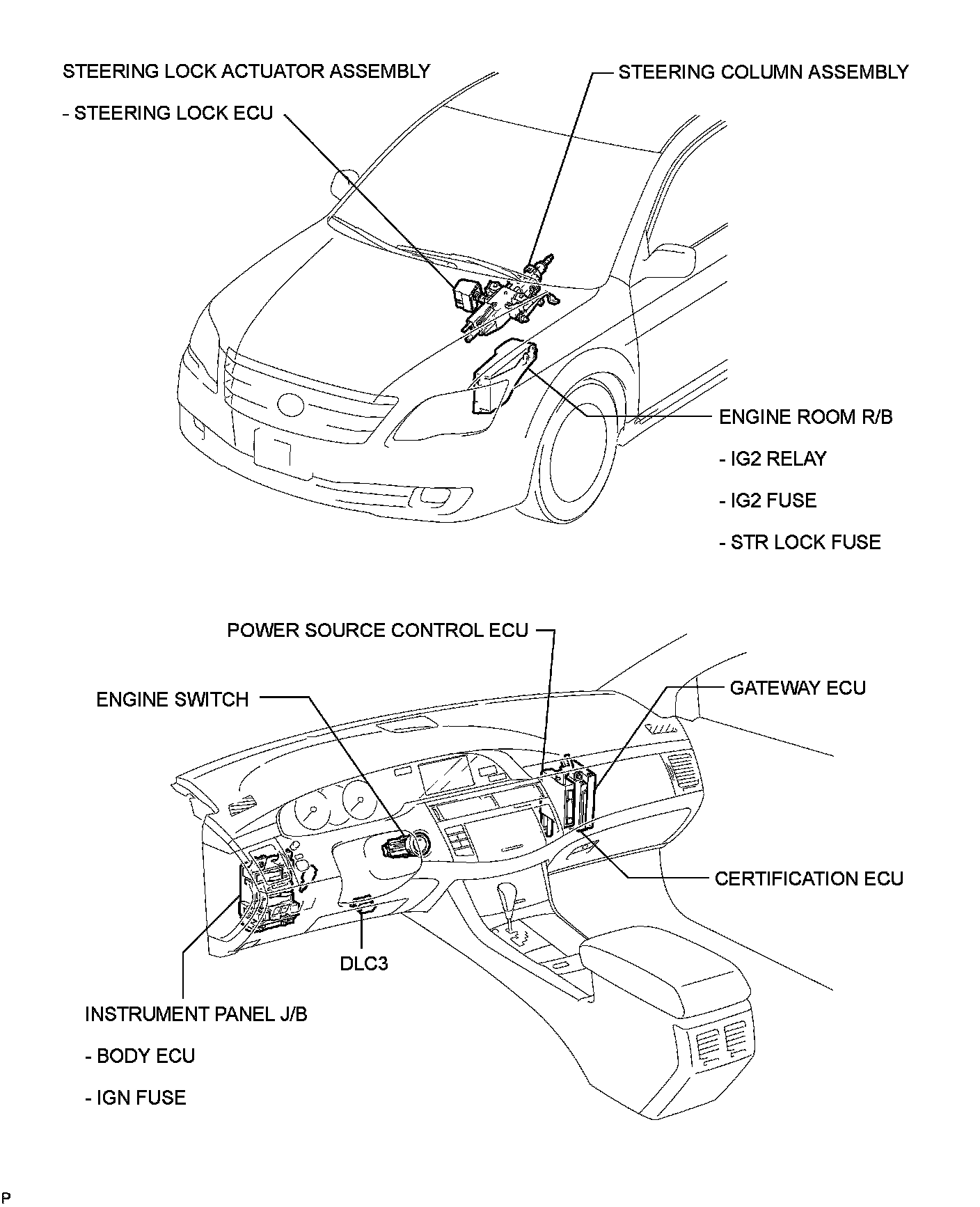

STEERING COLUMN: ELECTRIC STEERING LOCK: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION





Instrument Panel:
