Back Door Courtesy Switch
Back Door Courtesy Switch
INSPECTION
1.

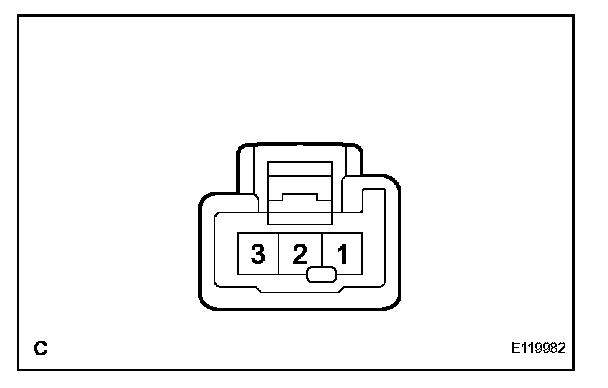

INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
a.

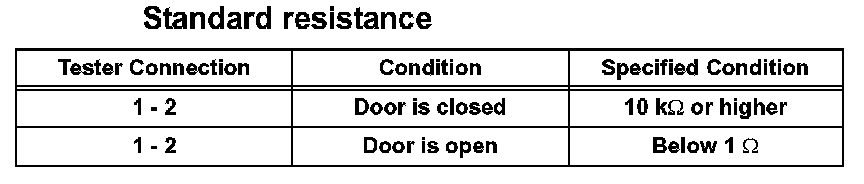

Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the luggage compartment door lock assembly.
