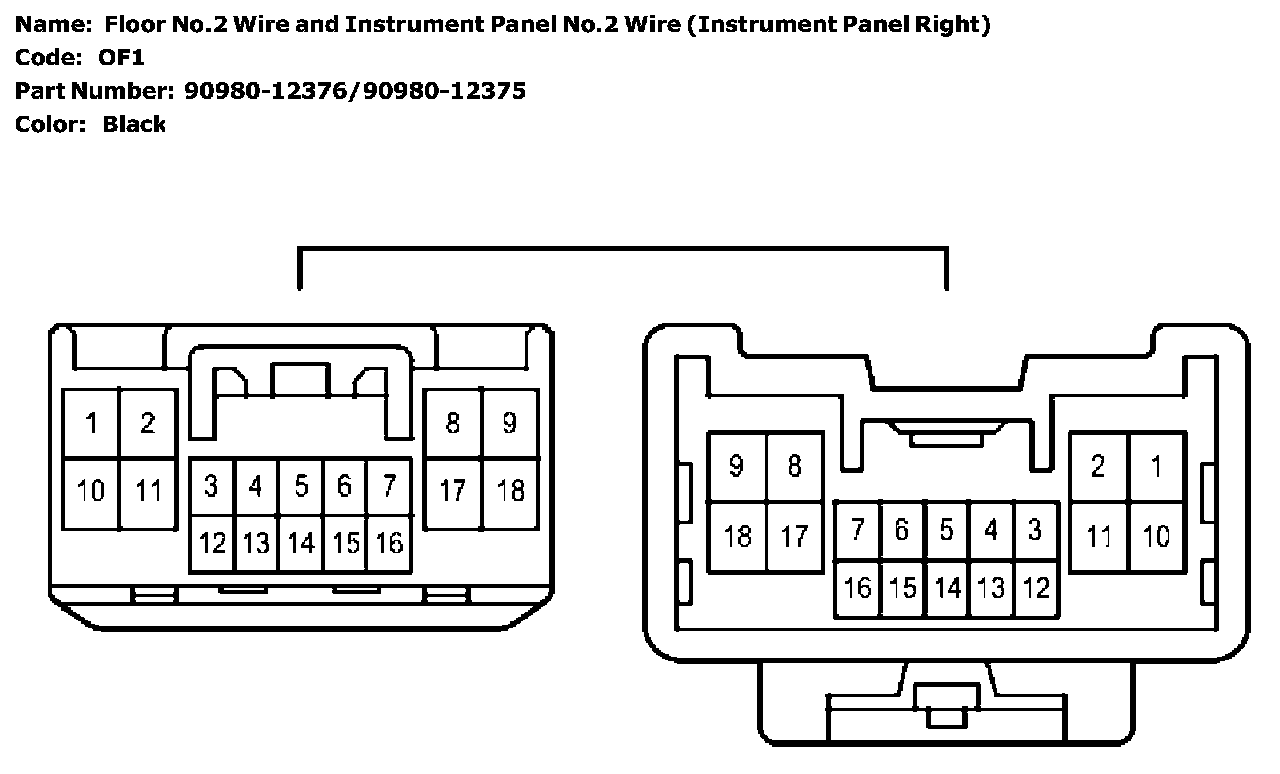

OF1 (Floor No.2 Wire and Instrument Panel No.2 Wire (Instrument Panel Right))
OF1 (Floor No.2 Wire and Instrument Panel No.2 Wire (Instrument Panel Right))
