Cylinder Head Assembly: Testing and Inspection
2AZ-FE ENGINE MECHANICAL: CYLINDER HEAD: INSPECTION
INSPECTION
1. INSPECT CYLINDER HEAD FOR FLATNESS

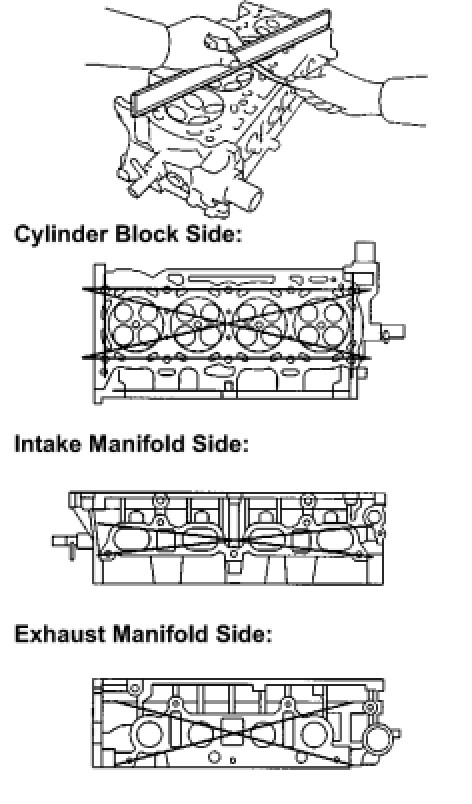

(a) Using a precision straight edge and a feeler gauge, measure the surfaces that contact the cylinder block and the manifolds for warpage.

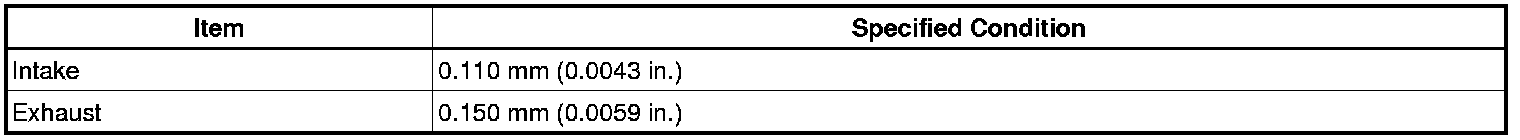

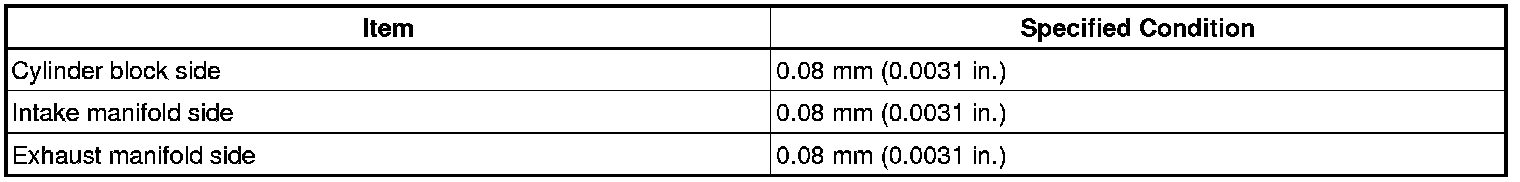

Maximum Warpage:
If the warpage is greater than the maximum, replace the cylinder head.
2. INSPECT CYLINDER HEAD FOR CRACKS

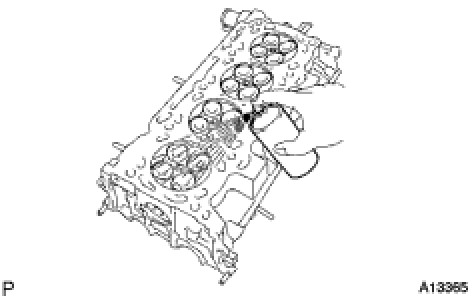

(a) Using a dye penetrant, check the intake ports, exhaust ports and cylinder head surface for cracks.
If cracked, replace the cylinder head.
3. INSPECT VALVE SEATS
(a) Apply a light coat of Prussian blue to the valve face.
(b) Lightly press the valve face against the valve seat.
(c) Check the valve face and valve seat according to the following procedure:
(1) If Prussian blue appears 360° around the valve face, the valve face is concentric. If not, replace the valve.
(2) If Prussian blue appears 360° around the valve seat, the guide and valve face are concentric. If not, resurface the valve seat.

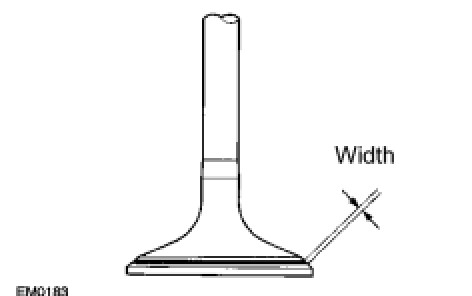

(3) Check that the valve seat contact is in the middle of the valve face with the width between 1.0 to 1.4 mm (Intake side (0.039 to 0.055 in.)).
(4) Check that the valve seat contact is in the middle of the valve face with the width between 1.2 to 1.6 mm (Exhaust side (0.047 to 0.063 in.)).
4. REPAIR VALVE SEATS
NOTICE:
- Repair the seat while checking the seating position.
- Keep the lip free from foreign matter.

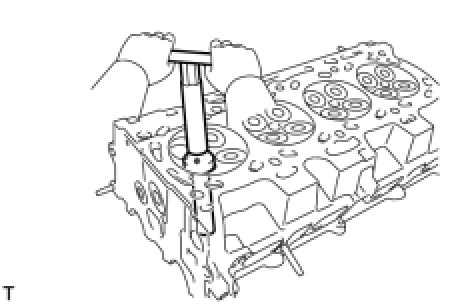

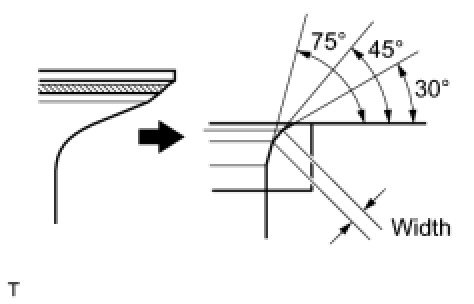

(a) Using a 45° cutter, resurface the valve seat so that the valve seat width is greater than the specification.
(b) Using 30° and 75° cutters, correct the valve seat so that the valve contacts the entire circumference of the seat. The contact should be in the center of the valve seat, and the valve seat width should be maintained within the specified range around the entire circumference of the valve seat.

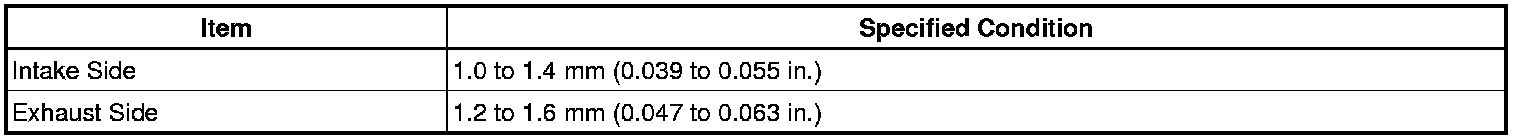

Valve Seat Width:
(c) Handrub the valve and valve seat with an abrasive compound.
(d) Check the valve seating position.
5. INSPECT CAMSHAFT THRUST CLEARANCE
(a) Install the camshafts Installation.

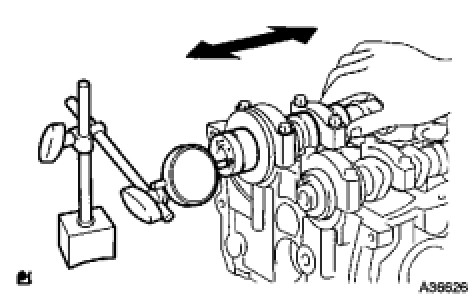

(b) Using a dial indicator, measure the thrust clearance while moving the camshaft back and forth.

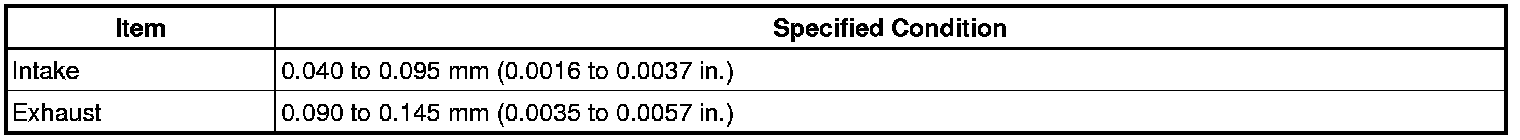

Standard Thrust Clearance:
Maximum Thrust Clearance:
If the thrust clearance is greater than the maximum, replace the cylinder head. If the thrust surface is damaged, replace the camshaft.
6. INSPECT CAMSHAFT OIL CLEARANCE
(a) Clean the bearing caps and camshaft journals.
(b) Place the camshafts on the cylinder head.

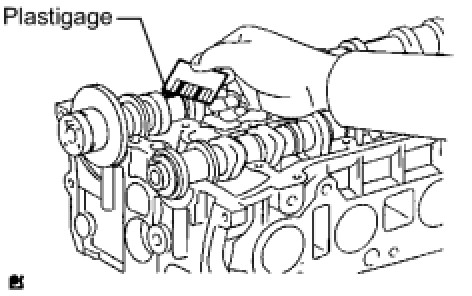

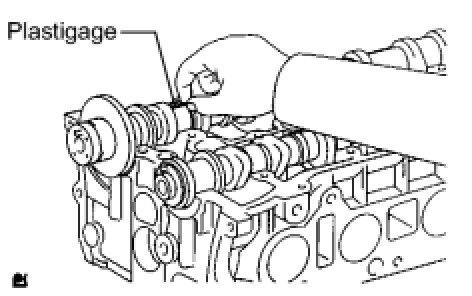

(c) Lay a strip of Plastigage across each of the camshaft journals.
(d) Install the bearing caps Installation.
NOTICE: Do not turn the camshaft.
(e) Remove the bearing caps Removal.
(f) Measure the Plastigage at its widest point.

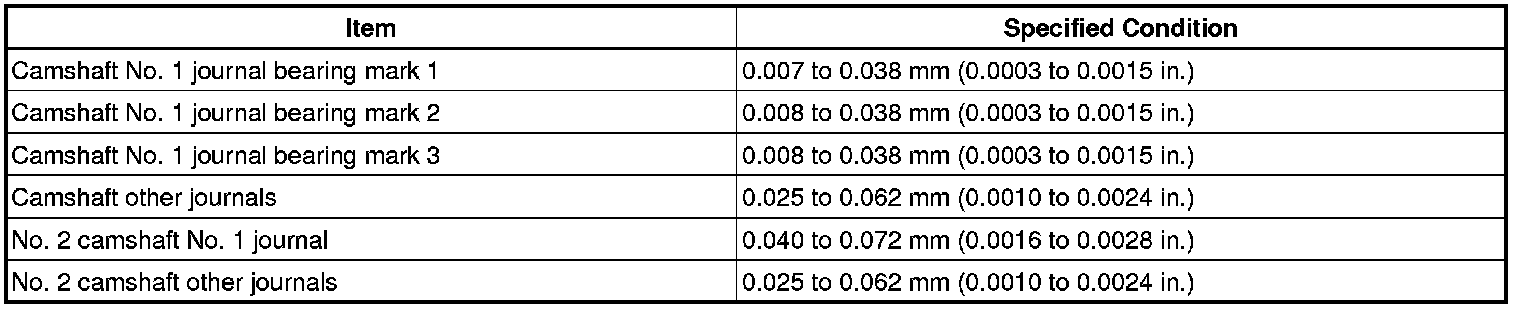

Standard Oil Clearance:
Maximum Oil Clearance:
NOTICE: Completely remove the Plastigage after the inspection.
- If the oil clearance is greater than the maximum, replace the camshaft. If necessary, replace the cylinder head.
- If the oil clearance on the camshaft No. 1 journal is greater than the maximum, choose a new bearing and install it.

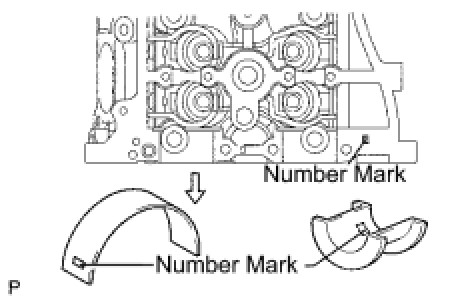

(1) Check the number mark shown in the illustration.
Cylinder Head Journal Bore Diameter:
Standard Bearing Center Wall Thickness:
Camshaft journal diameter:
35.971 to 35.985 mm (1.4162 to 1.4167 in.)
7. INSPECT INNER COMPRESSION SPRING

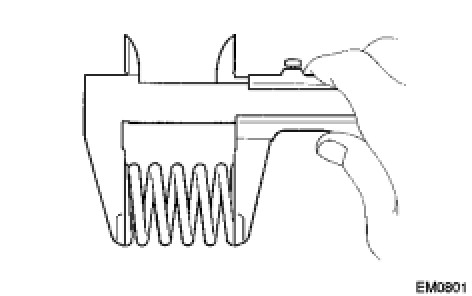

(a) Using a vernier caliper, measure the free length of the valve spring.
Free length:
47.43 mm (1.867 in.)
If the free length is not as specified, replace the valve spring.

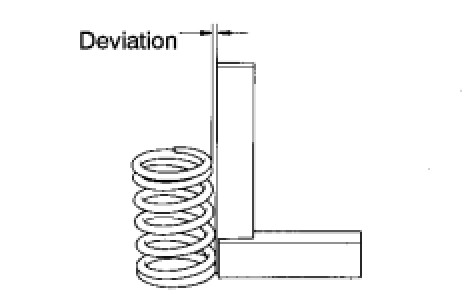

(b) Using steel squares, measure the deviation of the valve spring.
Maximum deviation:
1.6 mm (0.063 in.)
If the deviation is greater than the maximum, replace the valve spring.
8. INSPECT INTAKE VALVE

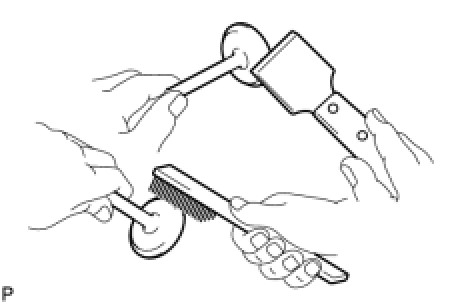

(a) Using a gasket scraper, scrape off any carbon on the intake valve head.

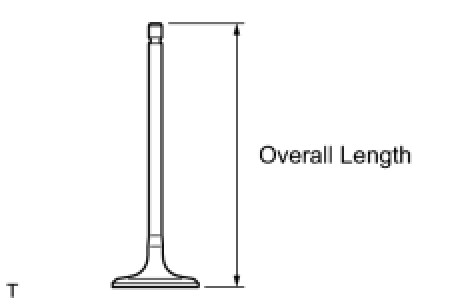

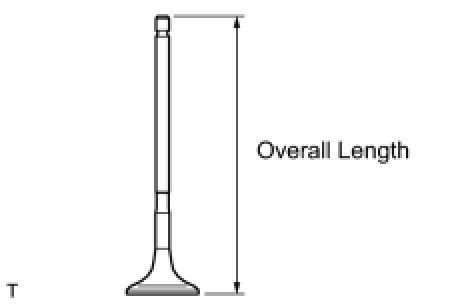

(b) Using a vernier caliper, measure the overall length of the intake valve.
Standard overall length:
101.71 mm (4.0043 in.)
Minimum overall length:
101.21 mm (3.9846 in.)
If the overall length is less than the minimum, replace the intake valve.

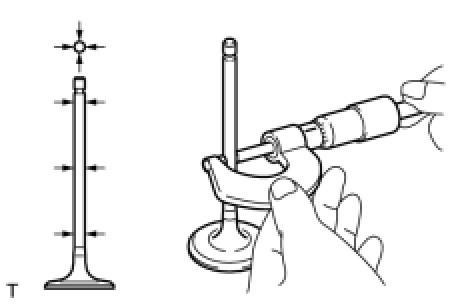

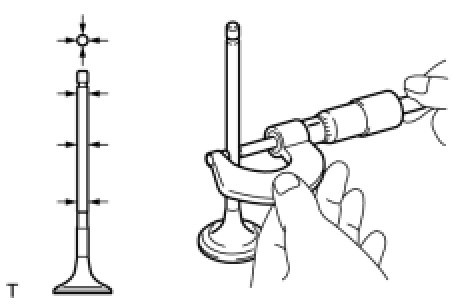

(c) Using a micrometer, measure the diameter of the intake valve stem.
Valve stem diameter:
5.470 to 5.485 mm (0.2154 to 0.2159 in.)
If the intake valve stem is not as specified, check the oil clearance.

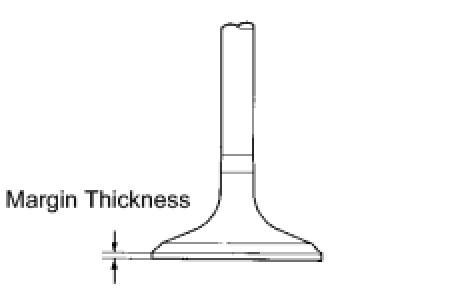

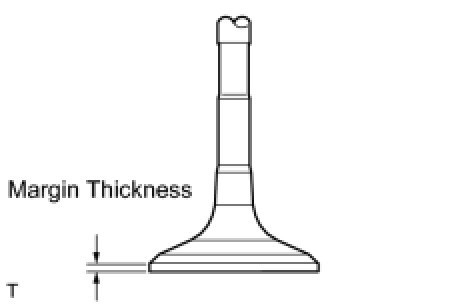

(d) Using a vernier caliper, measure the intake valve head margin thickness.
Standard margin thickness:
1.05 to 1.45 mm (0.0413 to 0.0571 in.)
Minimum margin thickness:
0.50 mm (0.0197 in.)
If the margin thickness is less than the minimum, replace the intake valve.
9. INSPECT EXHAUST VALVE
(a) Using a gasket scraper, scrape off any carbon on the exhaust valve head.
(b) Using a vernier caliper, measure the overall length of the exhaust valve.
Standard overall length:
101.15 mm (3.9823 in.)
Minimum overall length:
100.70 mm (3.9646 in.)
If the overall length is less than the minimum, replace the exhaust valve.
(c) Using a micrometer, measure the diameter of the exhaust valve stem.
Valve stem diameter:
5.465 to 5.480 mm (0.2152 to 0.2157 in.)
If the exhaust valve stem is not as specified, check the oil clearance.
(d) Using a vernier caliper, measure the exhaust valve head margin thickness.
Standard margin thickness:
1.20 to 1.60 mm (0.0472 to 0.0630 in.)
Minimum margin thickness:
0.50 mm (0.0197 in.)
If the margin thickness is less than the minimum, replace the exhaust valve.
10. INSPECT INTAKE VALVE GUIDE BUSH

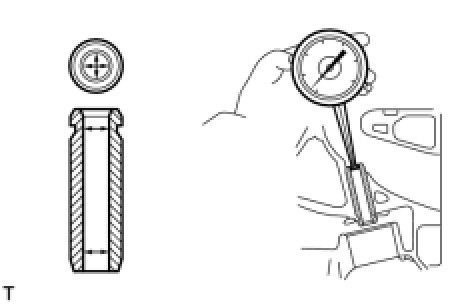

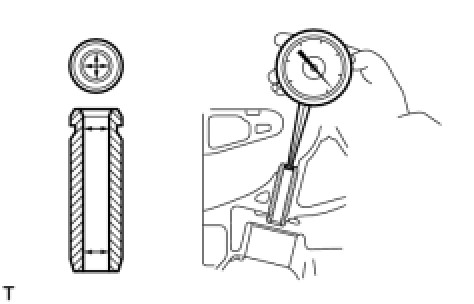

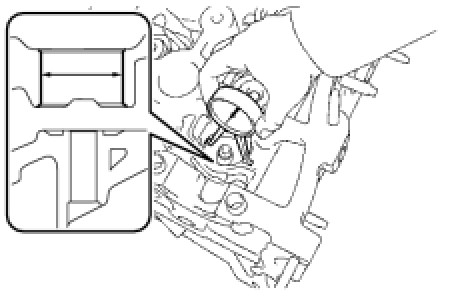

(a) Using a caliper gauge, measure the inside diameter of the guide bush.
Bush inside diameter:
5.510 to 5.530 mm (0.2169 to 0.2177 in.)
(b) Subtract the valve stem diameter measurement from the guide bush inside diameter measurement.
Standard oil clearance:
0.025 to 0.060 mm (0.0010 to 0.0024 in.)

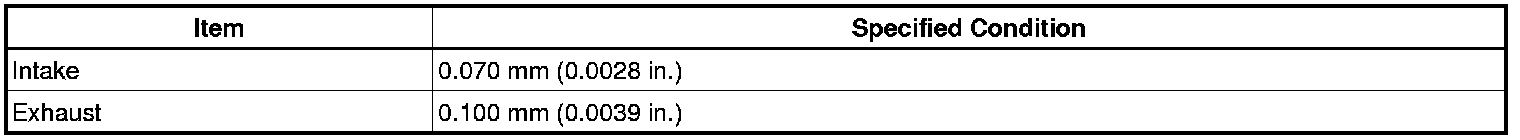

Maximum oil clearance:
0.090 mm (0.0035 in.)
If the clearance is greater than the maximum, replace the valve and guide bush.
11. INSPECT EXHAUST VALVE GUIDE BUSH
(a) Using a caliper gauge, measure the inside diameter of the guide bush.
Bush inside diameter:
5.510 to 5.530 mm (0.2169 to 0.2177 in.)
(b) Subtract the valve stem diameter measurement from the guide bush inside diameter measurement.
Standard oil clearance:
0.030 to 0.065 mm (0.0012 to 0.0026 in.)
Maximum oil clearance:
0.095 mm (0.0037 in.)
If the clearance is greater than the maximum, replace the valve and guide bush.
12. INSPECT VALVE LIFTER

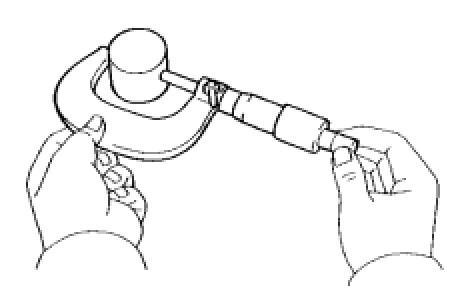

(a) Using a micrometer, measure the lifter diameter.
Lifter diameter:
30.966 to 30.976 mm (1.2191 to 1.2195 in.)
(b) Using a caliper gauge, measure the lifter bore diameter of the cylinder head.
Standard lifter bore diameter:
31.009 to 31.025 mm (1.2208 to 1.2215 in.)
(c) Subtract the lifter diameter measurement from the lifter bore diameter measurement.
Standard oil clearance:
0.033 to 0.059 mm (0.0013 to 0.0023 in.)
Maximum oil clearance:
0.079 mm (0.0031 in.)
If the oil clearance is greater than the maximum, replace the lifter. If necessary, replace the cylinder head.
13. INSPECT CYLINDER HEAD SET BOLT

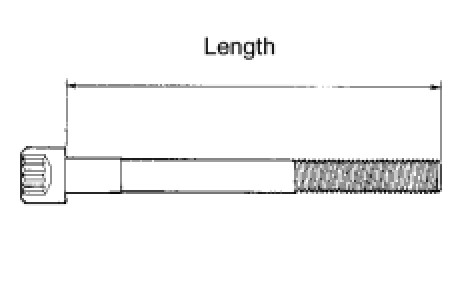

(a) Using a vernier caliper, measure the length of the head bolts from the seat to the end.
Standard bolt length:
141.3 to 142.7 mm (5.563 to 5.618 in.)
Maximum bolt length:
144.2 mm (5.677 in.)
If the bolt length is greater than the maximum, replace the cylinder head set bolt.
