Rear Power Window Motor LH Circuit

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Rear Power Window Motor LH Circuit

Rear Power Window Motor LH Circuit

DESCRIPTION

This circuit transmits signals from the power window regulator switch assembly (Rear LH) to the power window regulator motor (Rear LH).

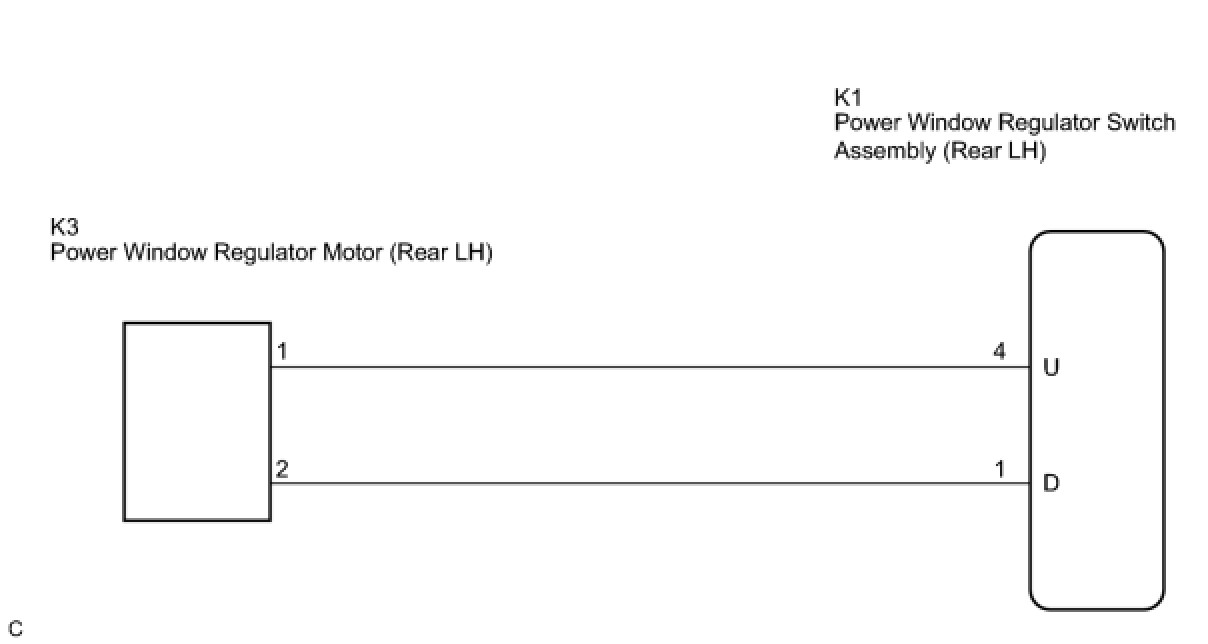

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT POWER WINDOW REGULATOR MOTOR

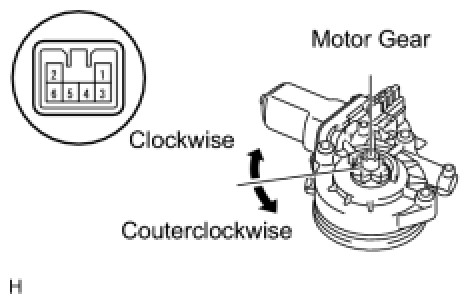

(a) Remove the power window motor.

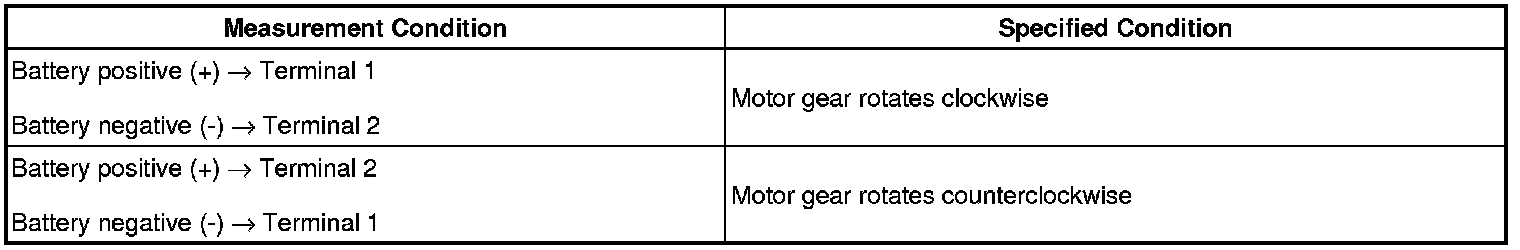

(b) Apply battery voltage to the motor connector according to the table below.
NOTICE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:






NG -- REPLACE POWER WINDOW REGULATOR MOTOR
OK -- Continue to next step.
2. CHECK WIRE HARNESS (WINDOW REGULATOR MOTOR - WINDOW REGULATOR SWITCH)

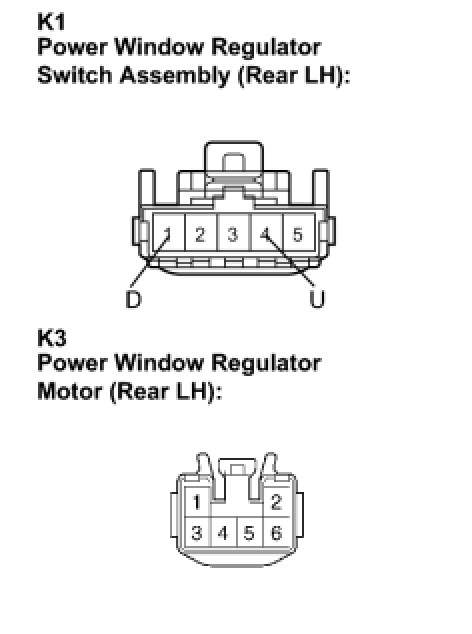

(a) Disconnect the K1 and K3 connectors.

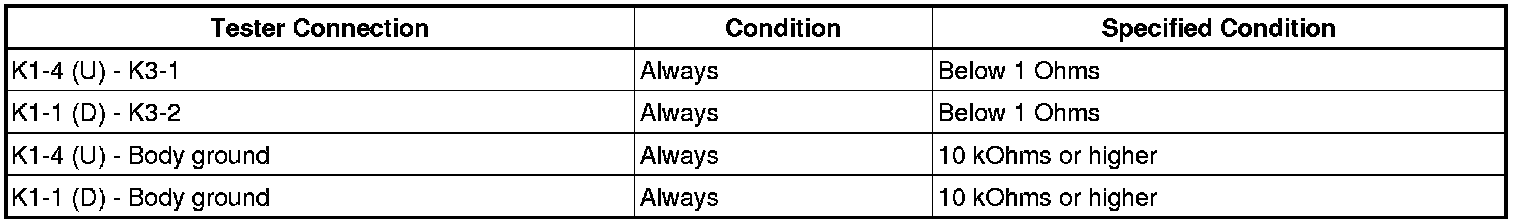

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
