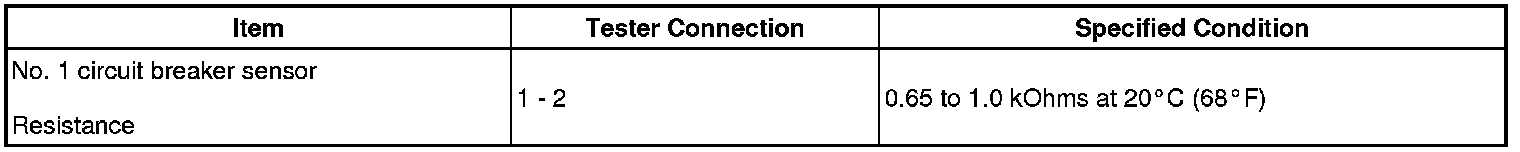

SERVICE SPECIFICATIONS: P311 HYBRID VEHICLE CONTROL: SERVICE DATA
SERVICE DATA

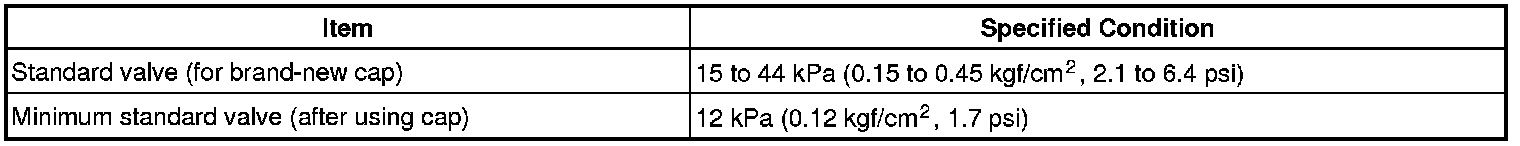

Inverter radiator cap

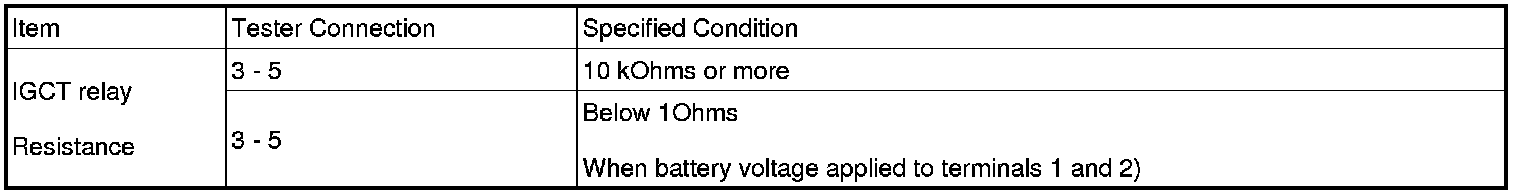

Relay
