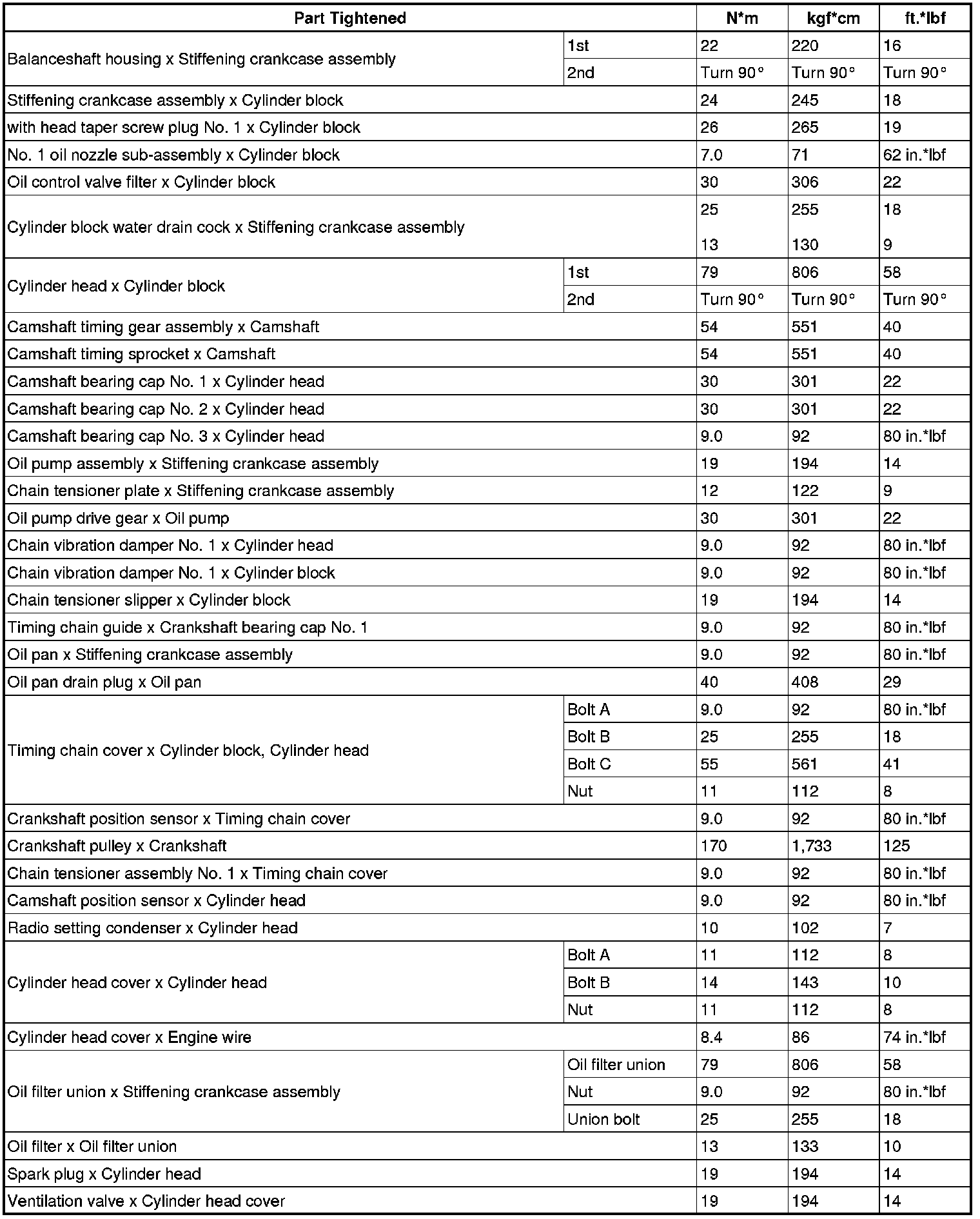

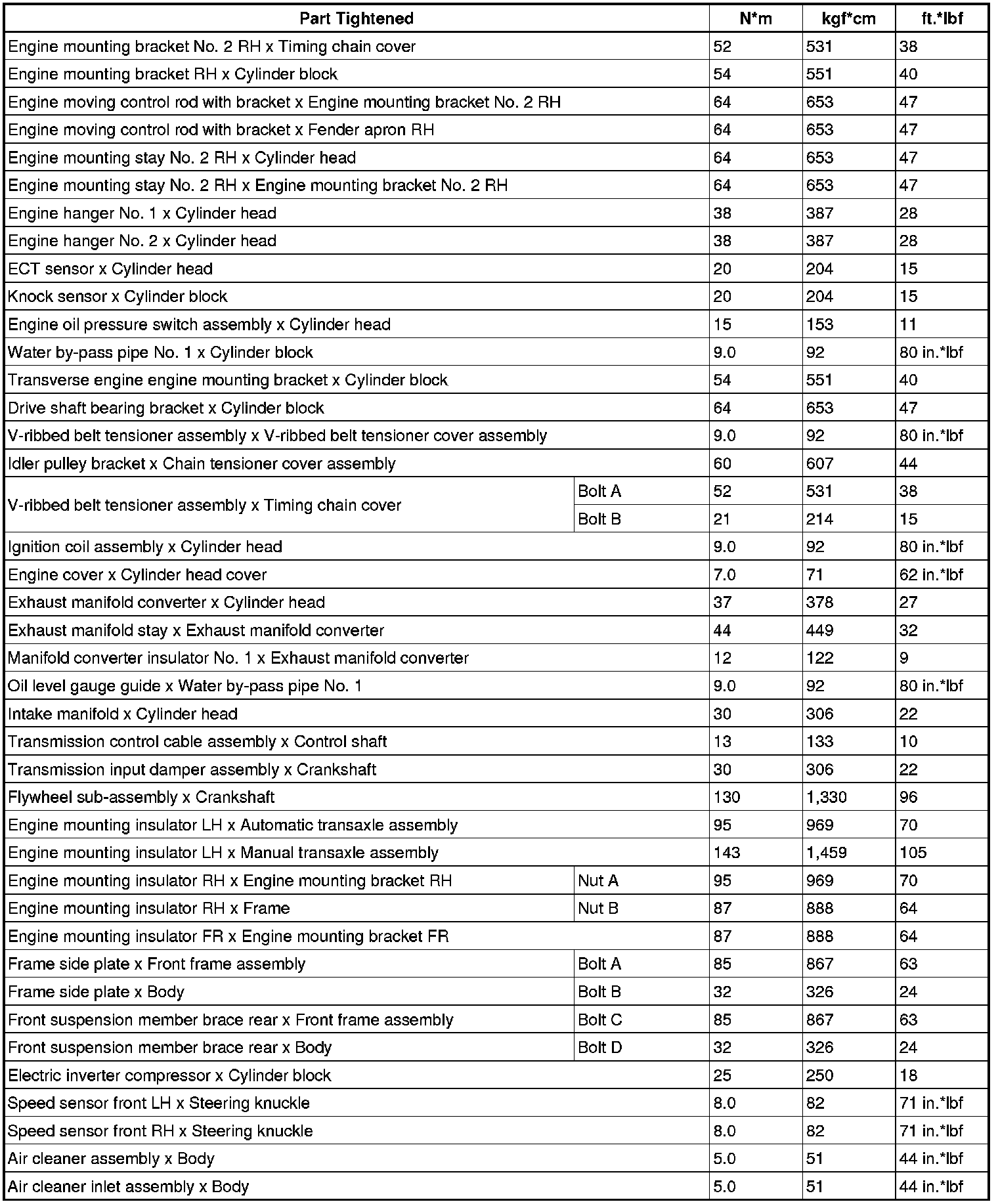

Torque Specifications








SERVICE SPECIFICATIONS: 2AZ-FXE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS
