Removal








HEATING / AIR CONDITIONING: COMPRESSOR (for 2AZ-FE): REMOVAL

REMOVAL

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE V-RIBBED BELT Removal
4. DISCONNECT SUCTION HOSE SUB-ASSEMBLY





(a) Remove the bolt and disconnect the suction hose sub-assembly from the compressor assembly with pulley.
(b) Remove the O-ring from the suction hose sub-assembly.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

5. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY





(a) Remove the bolt and disconnect the discharge hose sub-assembly from the compressor assembly with pulley.
(b) Remove the O-ring from the discharge hose sub-assembly.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

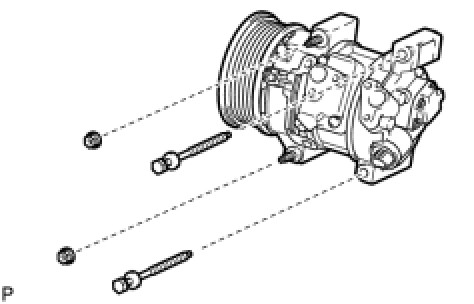

6. REMOVE COMPRESSOR ASSEMBLY WITH PULLEY
(a) Disconnect the connector.





(b) Remove the 2 bolts and the 2 nuts.





(c) Using a "TORX" socket wrench (E8), remove the 2 stud bolts and the compressor assembly with pulley.
