Pinout Values and Diagnostic Parameters

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: TERMINALS OF ECM

TERMINALS OF ECM

1. ECM

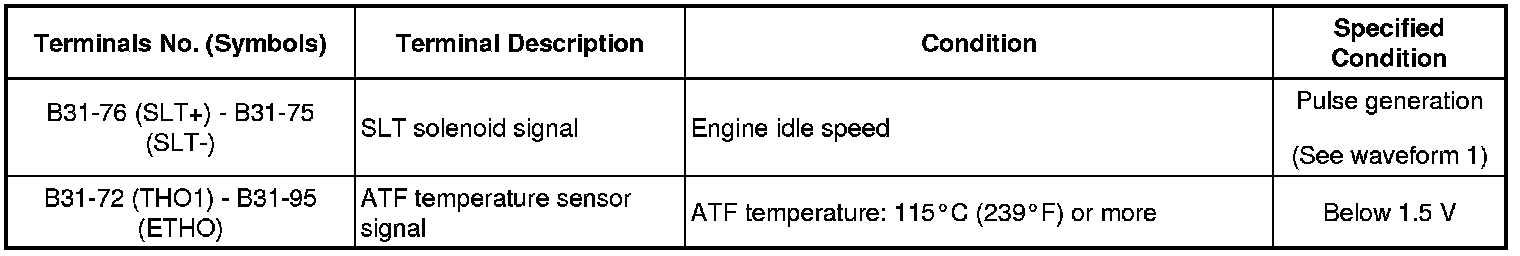

HINT: Each ECM terminal's standard voltage is shown in the table below.
In the table, first follow the information under "Condition". Look under "Terminal No. (Symbols)" for the terminals to inspected. The standard voltage between the terminals is shown under "Specific Condition".

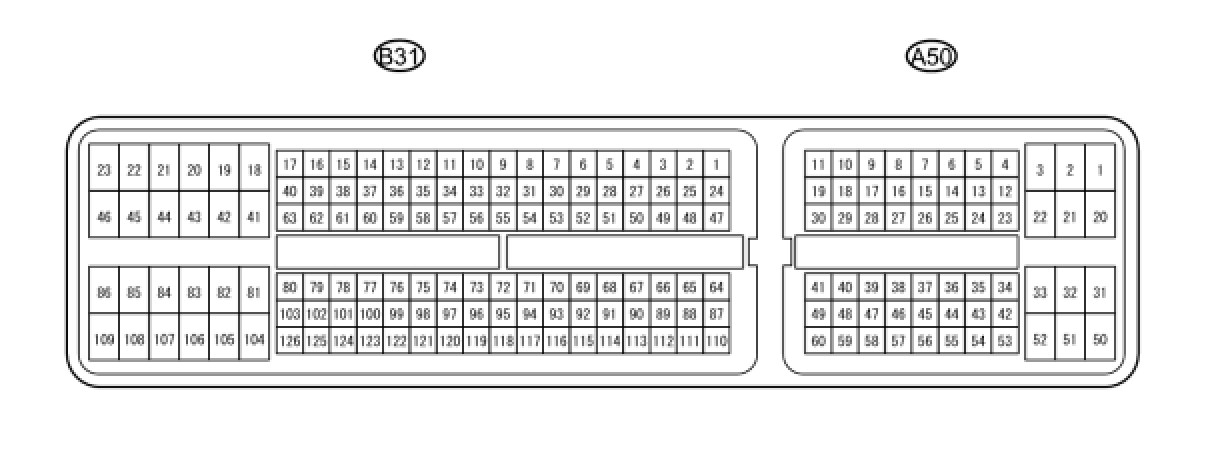

Use the illustration above as a reference for the ECM terminals.

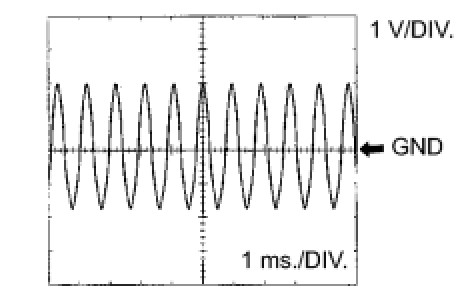

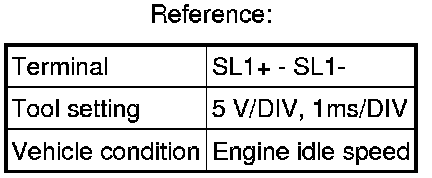

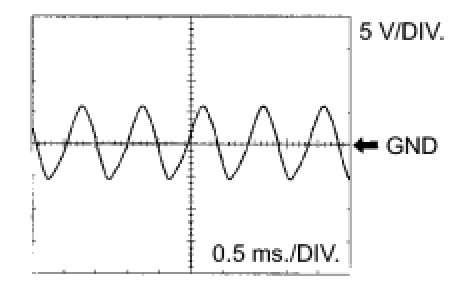

(a) Waveform 1

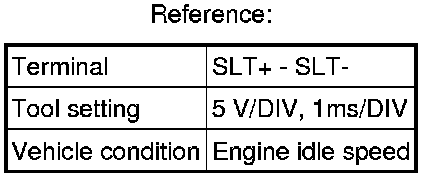

(b) Waveform 2

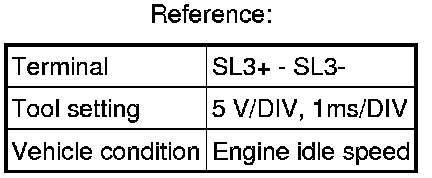

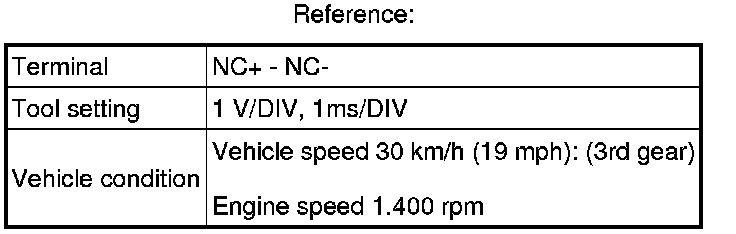

(c) Waveform 3

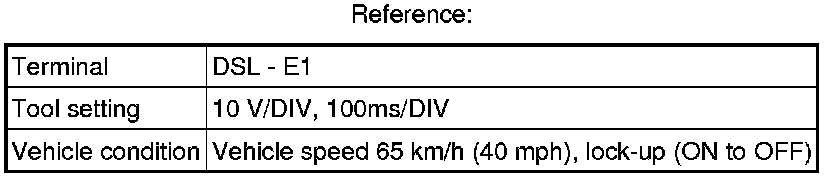

(d) Waveform 4

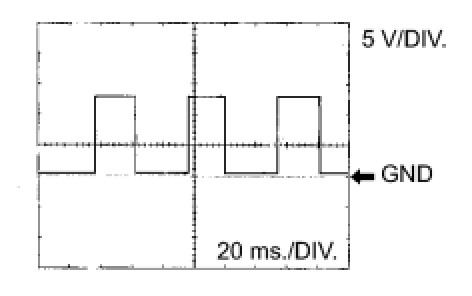

(e) Waveform 5

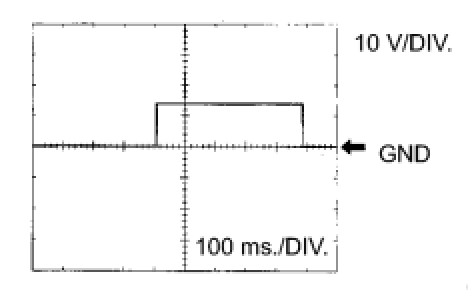

(f) Waveform 6

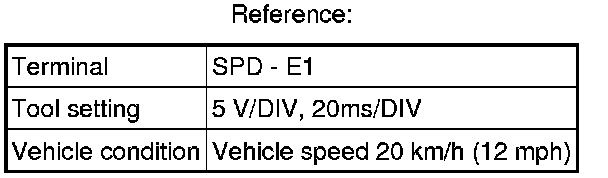

(g) Waveform 7

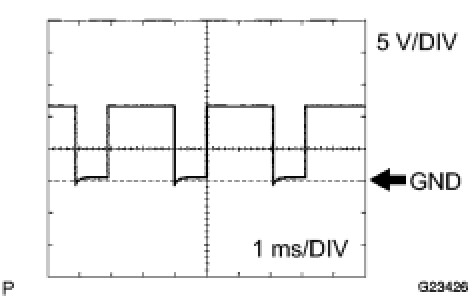

(h) Waveform 8

HINT: Depending on the vehicle, the output waveform voltage, influenced by optionally installed systems, may become 5V.
