Wiper and Washer Systems: Specifications








SERVICE SPECIFICATIONS: WIPER AND WASHER: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

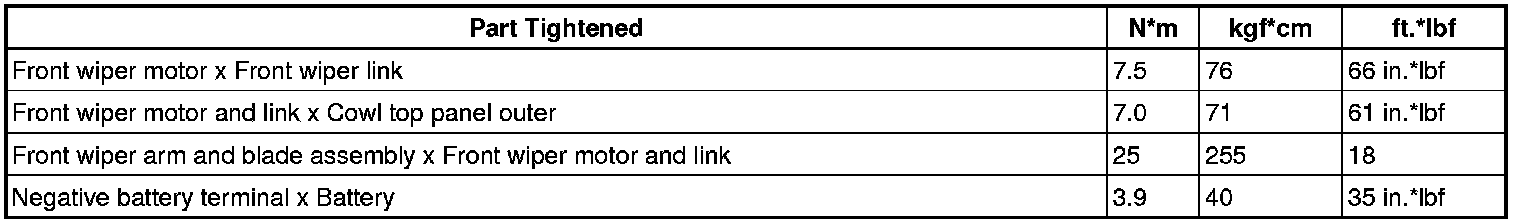

FRONT WIPER MOTOR

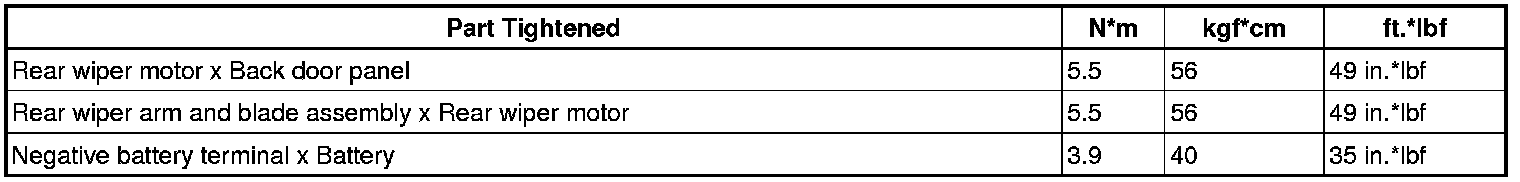

REAR WIPER MOTOR





WIPER SWITCH

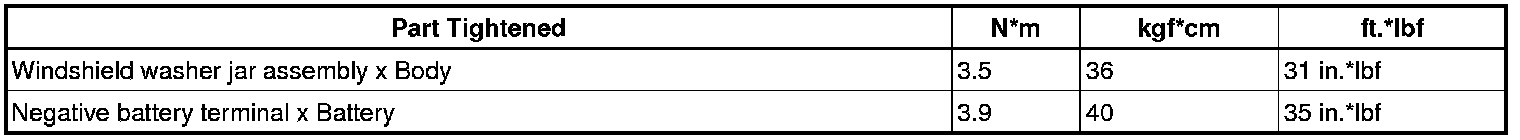

WASHER MOTOR
