1GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION





1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

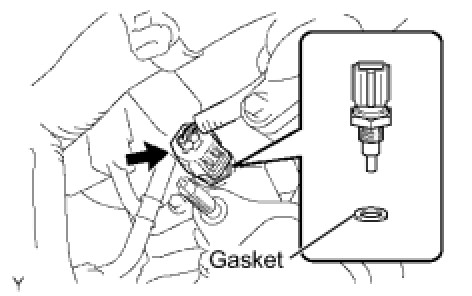

(a) Using a 19 mm deep socket wrench, install the water temperature sensor with a new gasket.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(b) Connect the connector.
2. CONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY Installation
3. INSTALL INTAKE AIR SURGE TANK Installation
4. INSTALL NO. 2 SURGE TANK STAY Installation
5. INSTALL NO. 1 SURGE TANK STAY Installation
6. INSTALL OIL BAFFLE PLATE Installation
7. INSTALL THROTTLE BODY BRACKET Installation
8. INSTALL AIR CLEANER ASSEMBLY Installation
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
10. ADD ENGINE COOLANT Service and Repair
11. CHECK FOR ENGINE COOLANT LEAKAGE Service and Repair
12. CHECK FOR FUEL LEAKAGE
13. INSTALL V-BANK COVER Installation
