Transmission Position Sensor/Switch: Locations








VF2A TRANSFER: TRANSFER SYSTEM: PARTS LOCATION

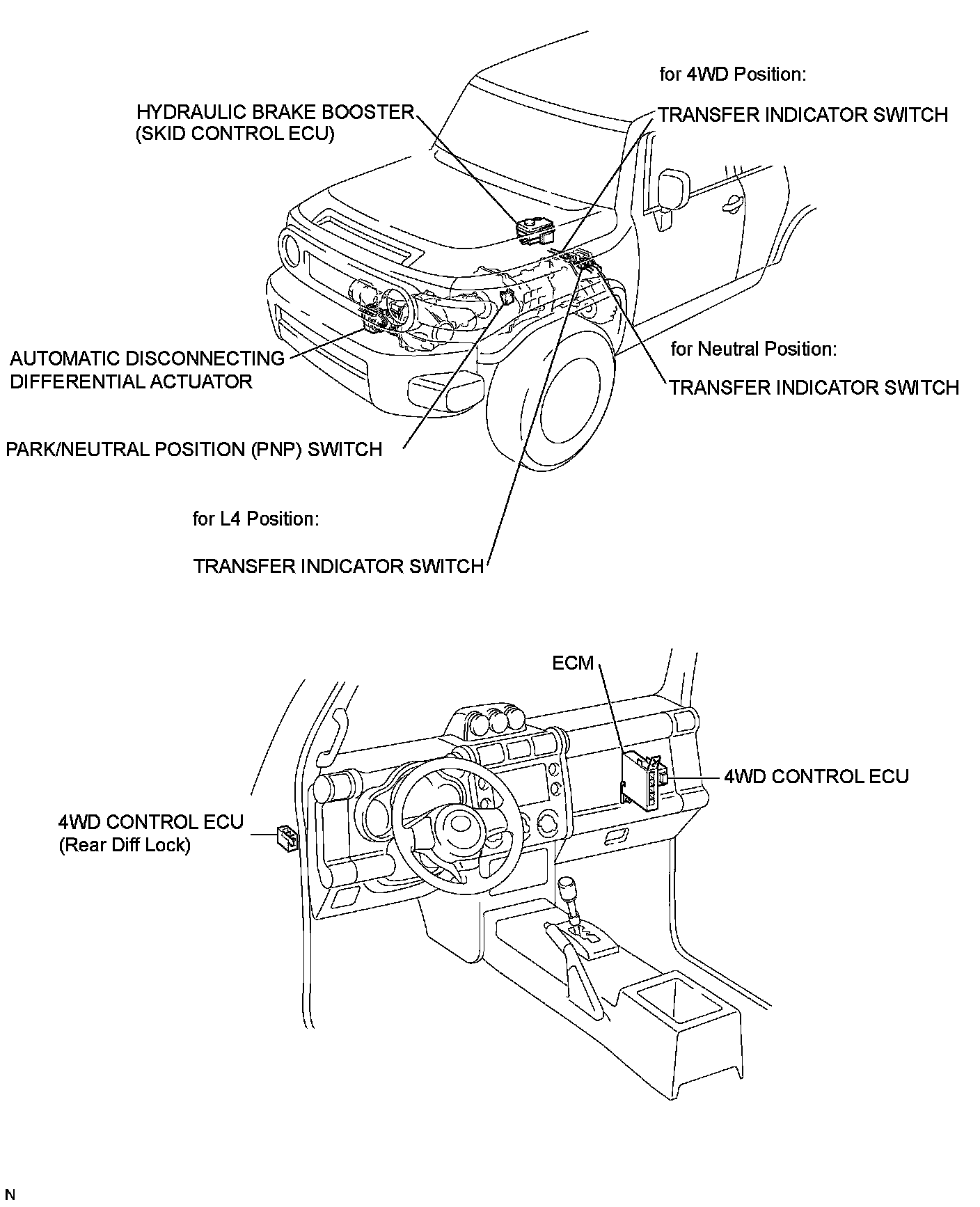

PARTS LOCATION

ILLUSTRATION
