Service Data








SERVICE SPECIFICATIONS: VF4B TRANSFER: SERVICE DATA

SERVICE DATA

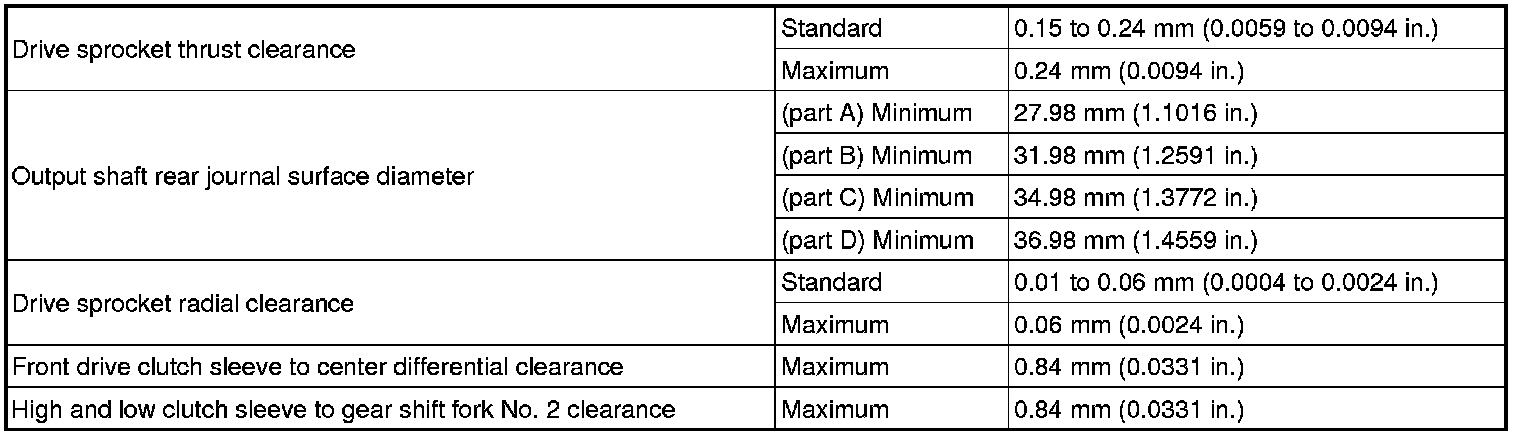

Rear output shaft

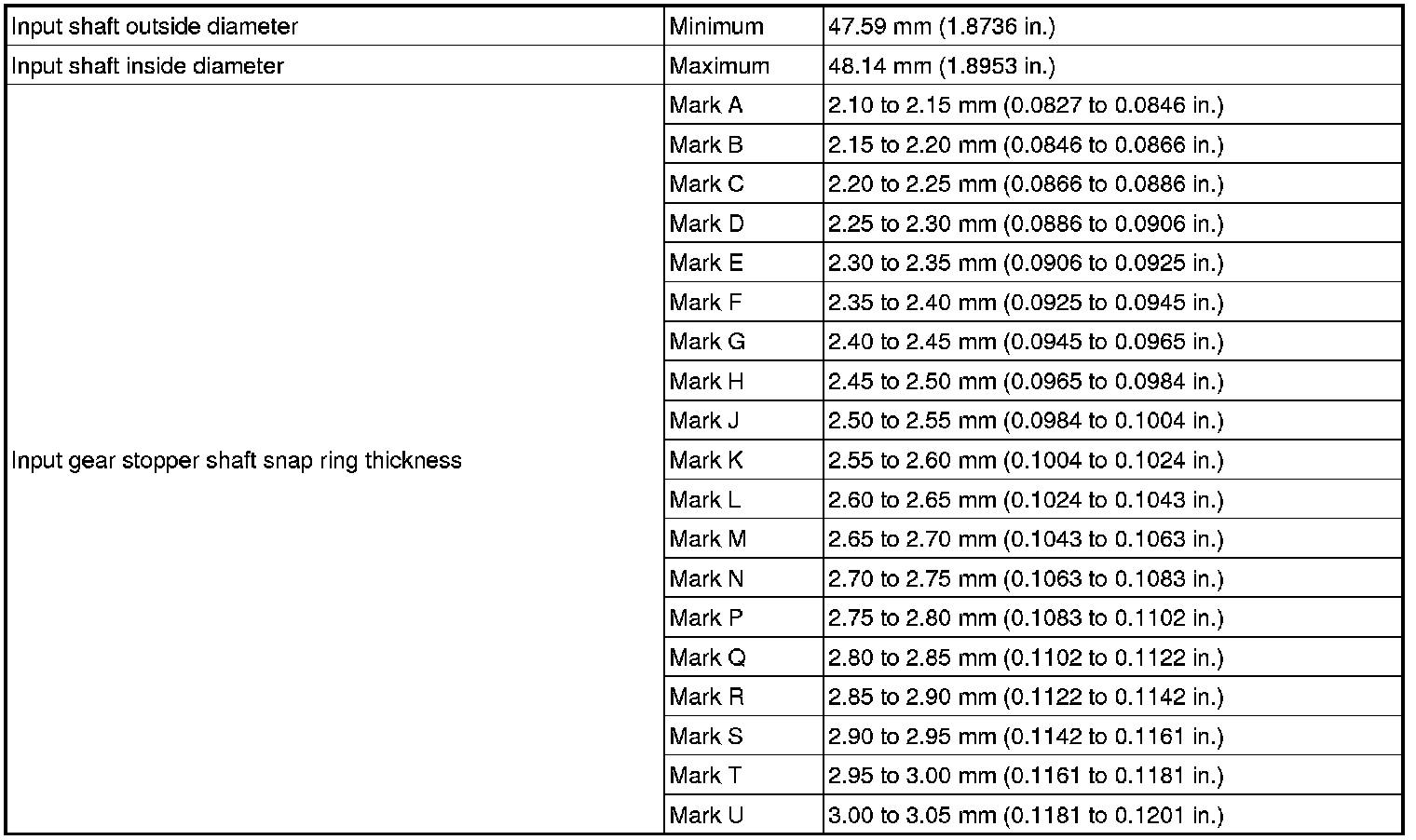

Input shaft

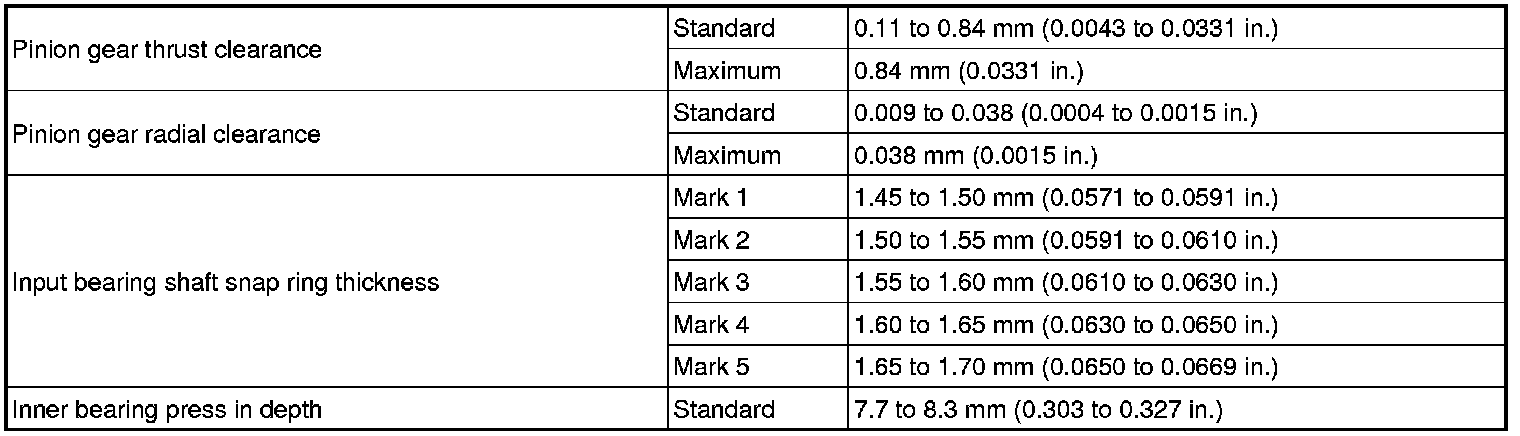

Planetary gear





Oil seal
