Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2009
>>
Highlander 2WD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Frame
>>
Cross-Member
>>
Rear Cross-Member
>>
Service and Repair
>>
Components
Components
SUSPENSION

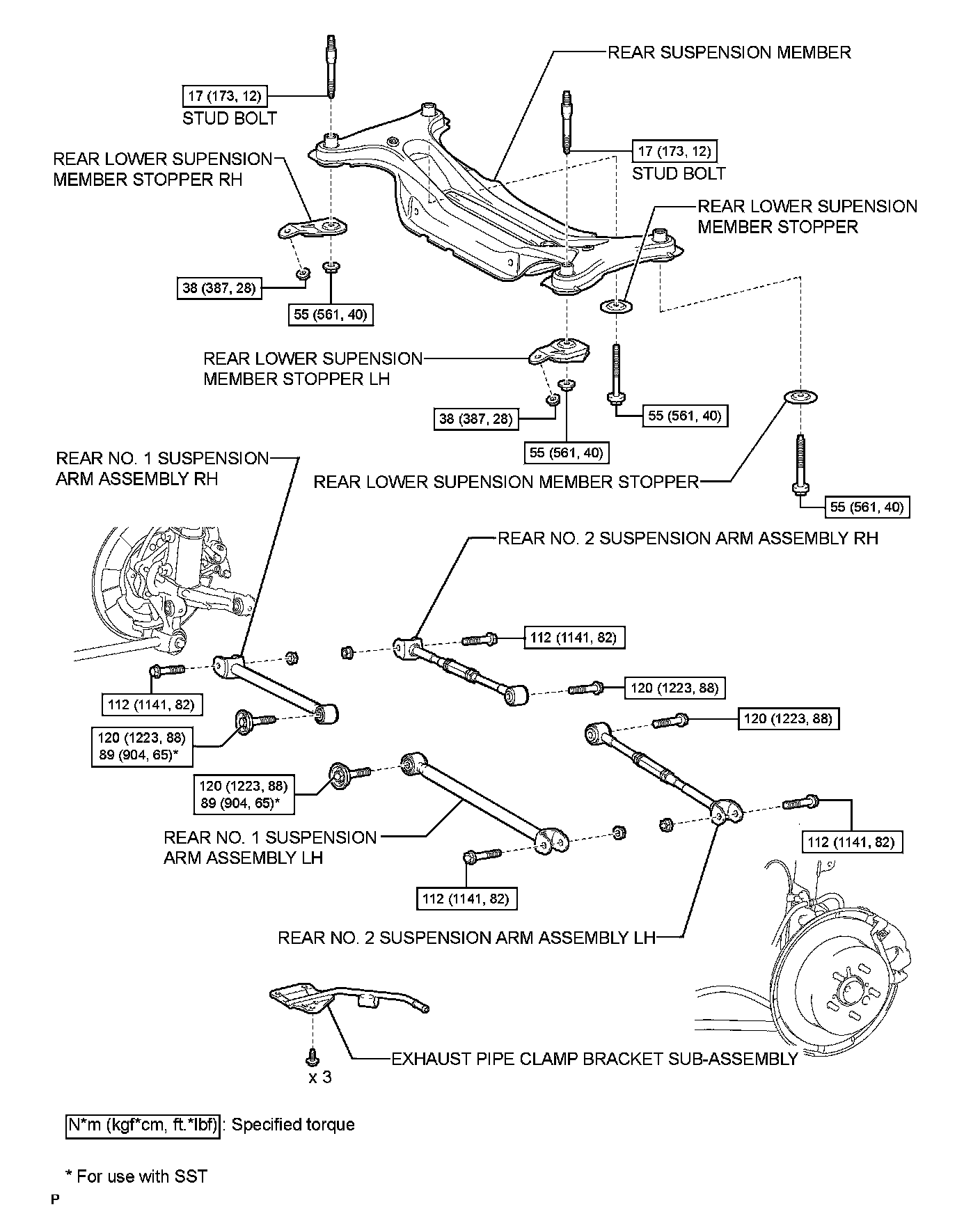

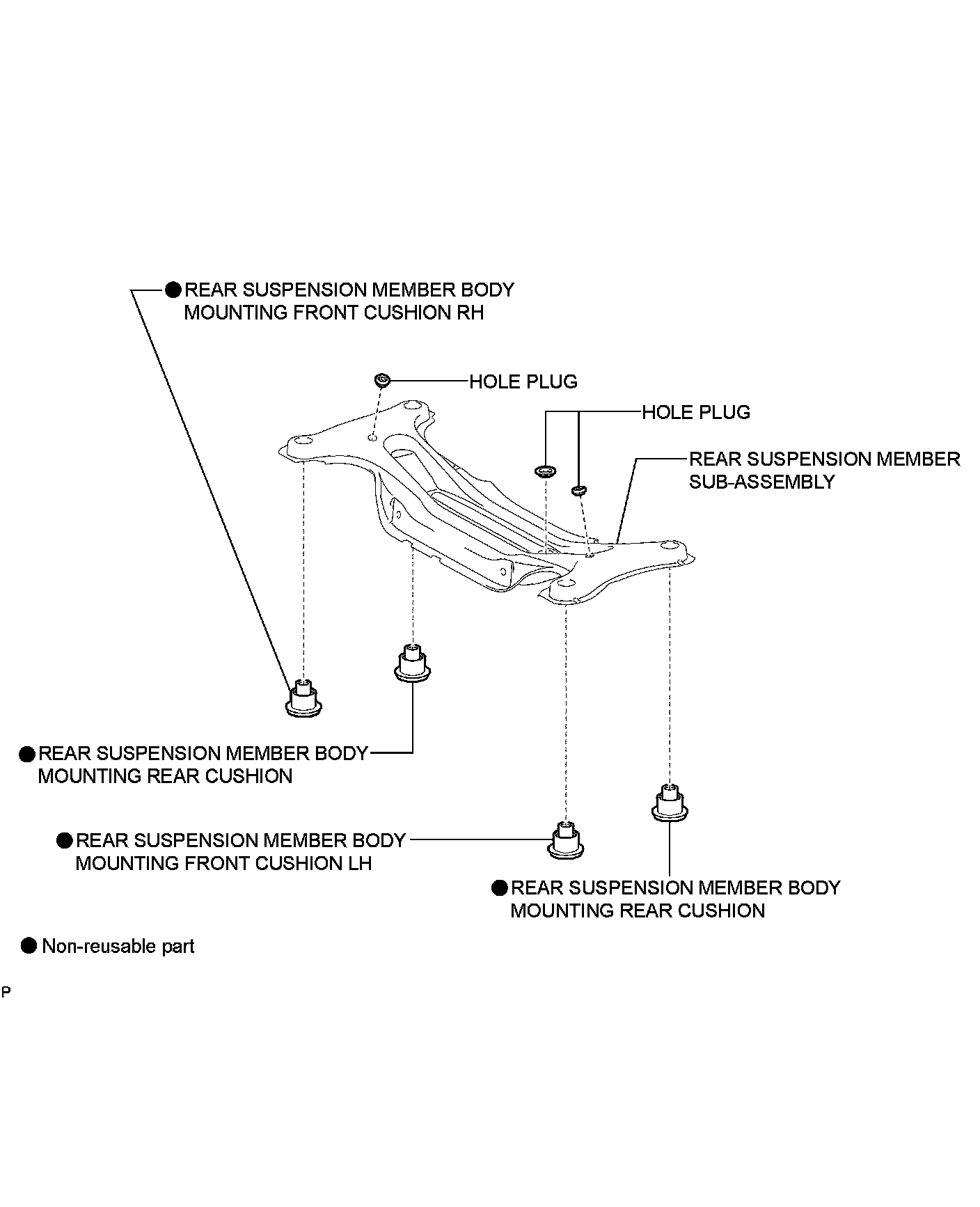

: REAR SUSPENSION MEMBER (for 2WD): COMPONENTS

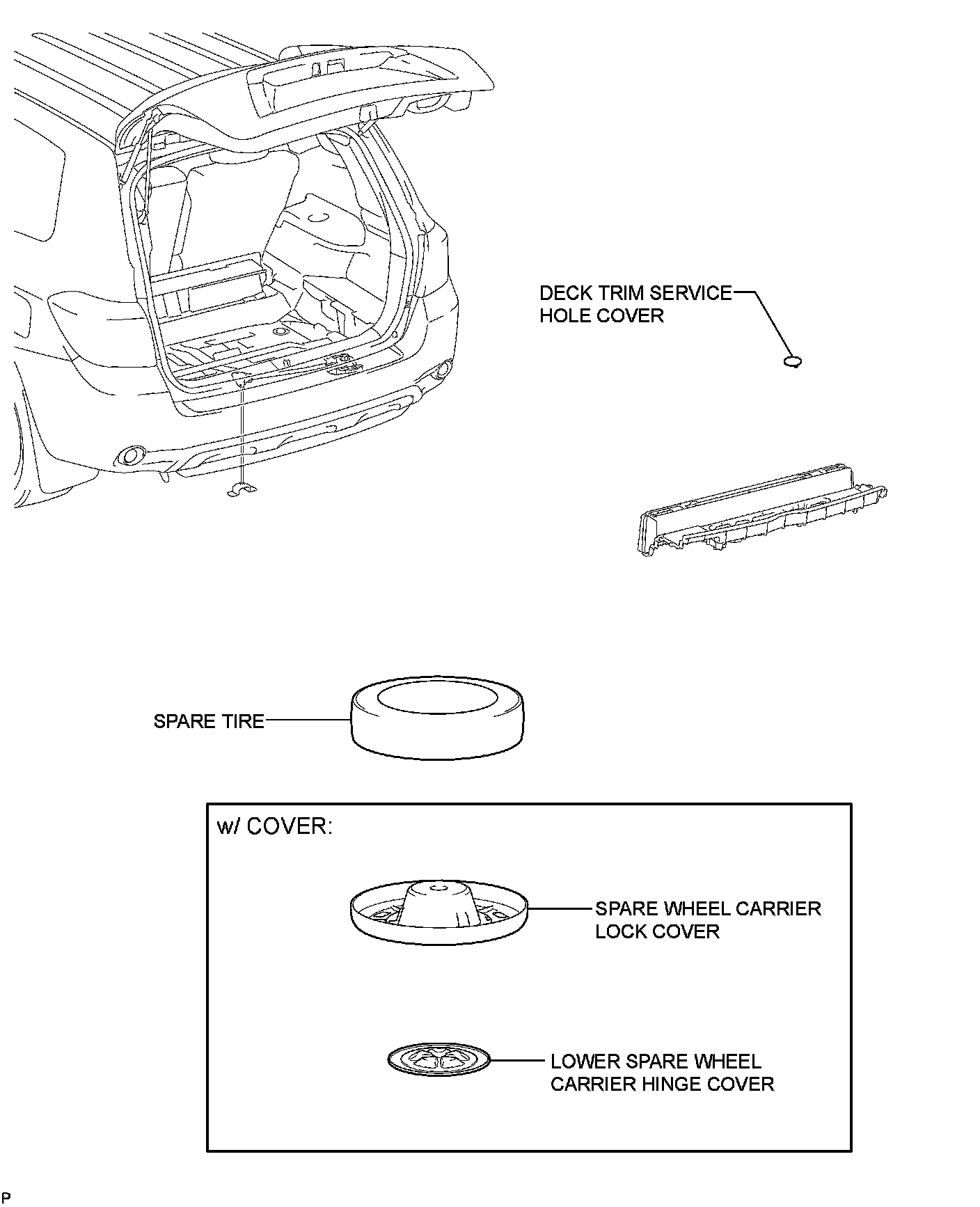

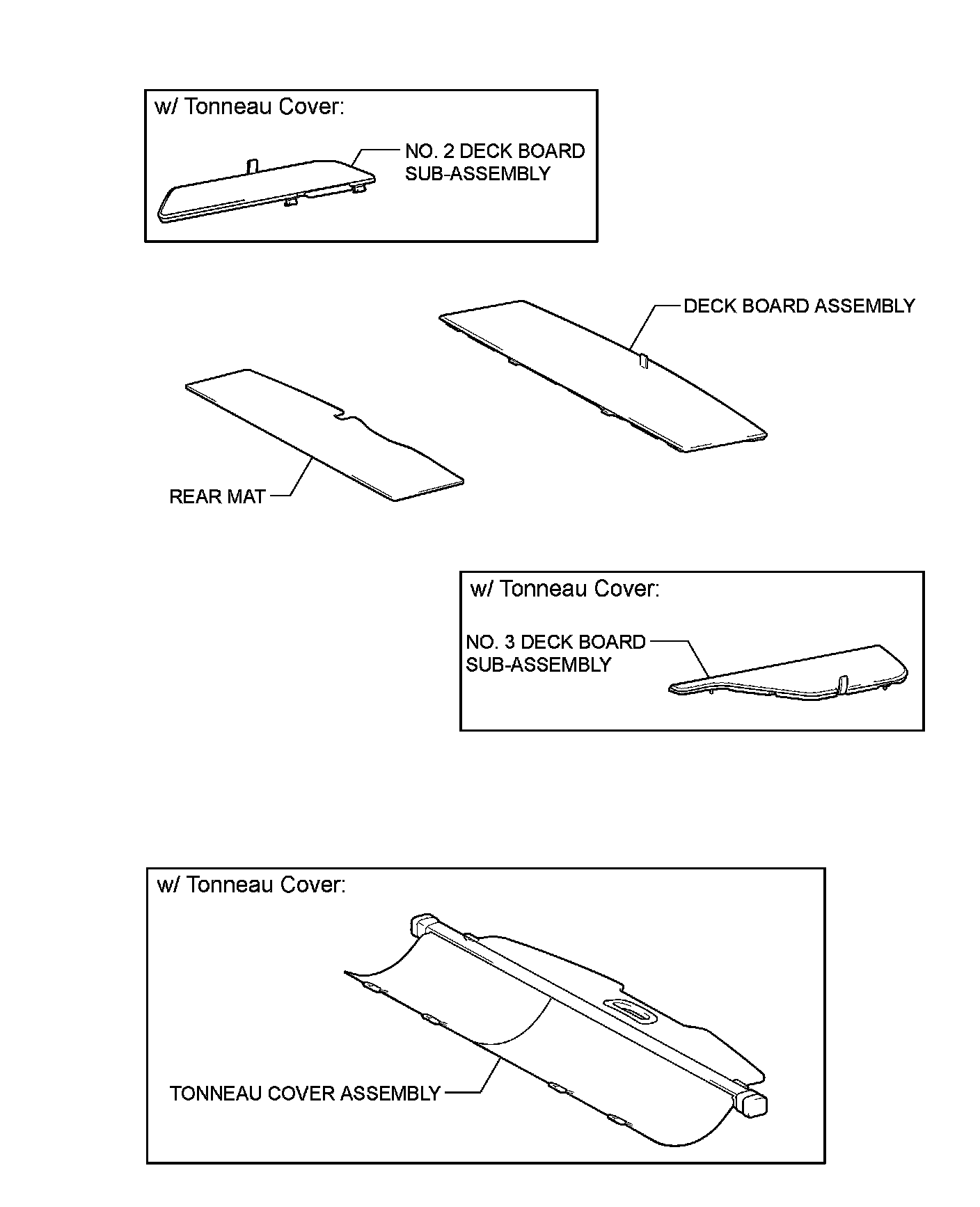

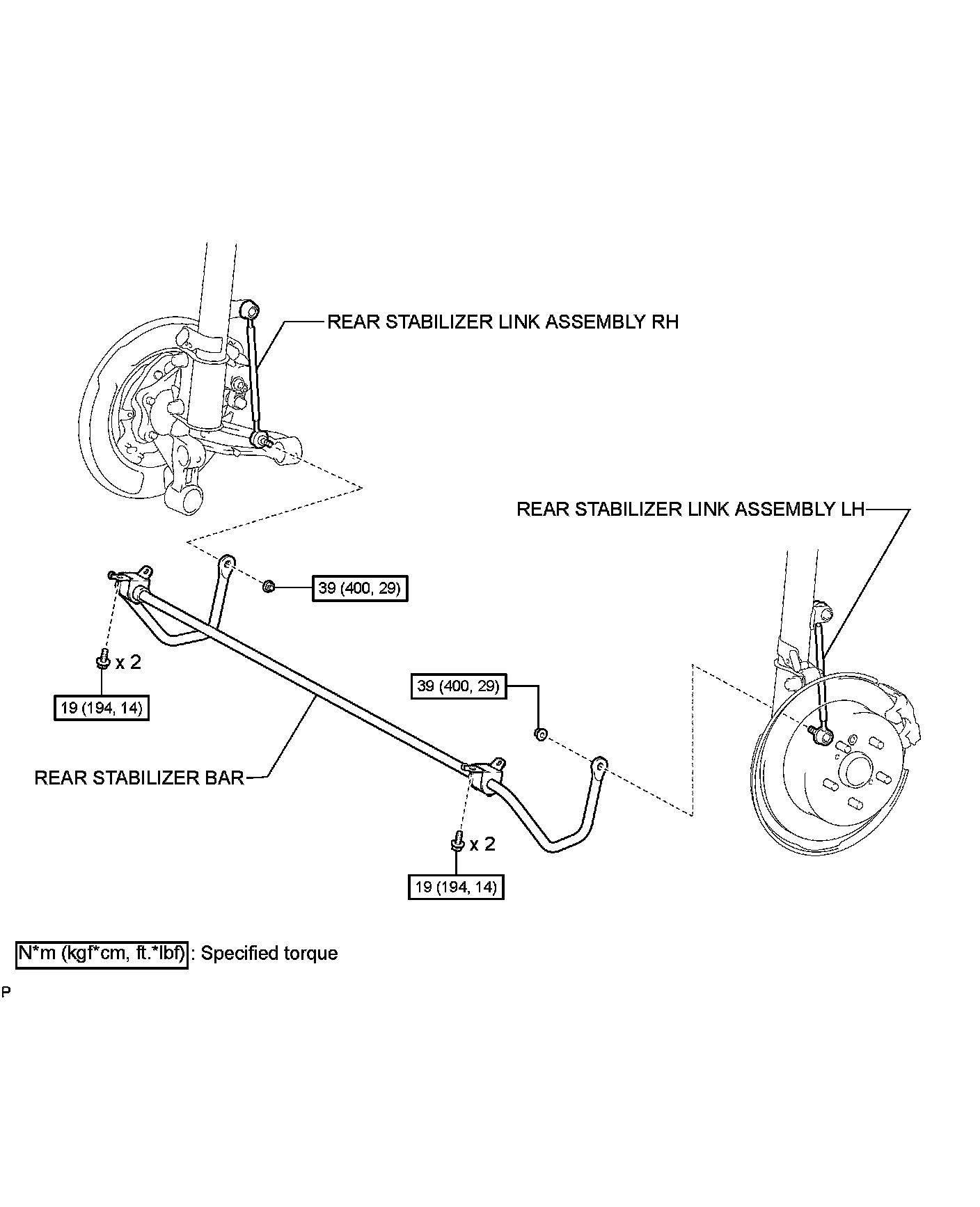

COMPONENTS
ILLUSTRATION
