AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Front): INSTALLATION

INSTALLATION

1. INSTALL FRONT ROOM TEMPERATURE SENSOR

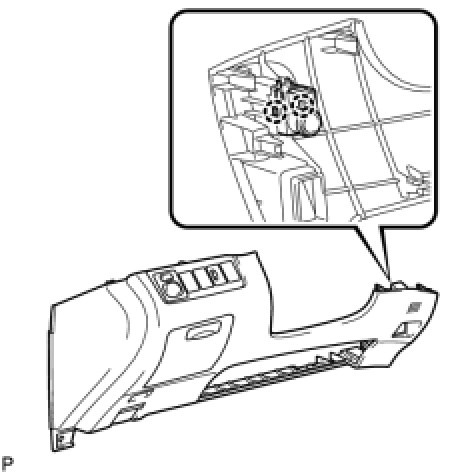

(a) Engage the 2 claws and install the front room temperature sensor.
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation
3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation
4. INSTALL FRONT DOOR SCUFF PLATE LH Installation
