1AR-FE ENGINE CONTROL SYSTEM: HEATED OXYGEN SENSOR: INSTALLATION

INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR

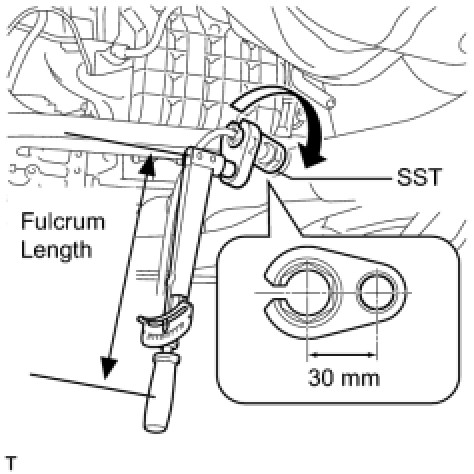

(a) Using SST, install the heated oxygen sensor to the front exhaust pipe.
SST: 09224-00010
without SST - Torque: 44 Nm (449 kgf-cm, 32 ft-lbf)
with SST - Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)

NOTICE :
- The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
- The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.) Service Precautions.
- This torque value is effective when SST is parallel to the torque wrench.

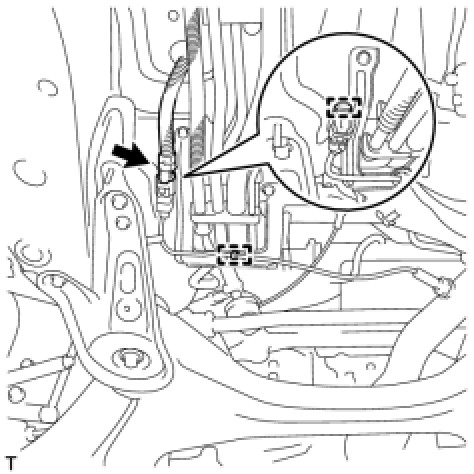

(b) Install the 2 wire harness clamps.
(c) Connect the heated oxygen sensor connector.
2. INSPECT FOR EXHAUST GAS LEAK
3. INSTALL FRONT FLOOR COVER LH Installation
