Automatic Transmission/Transaxle
SERVICE SPECIFICATIONS: U760E AUTOMATIC TRANSAXLE: SERVICE DATA

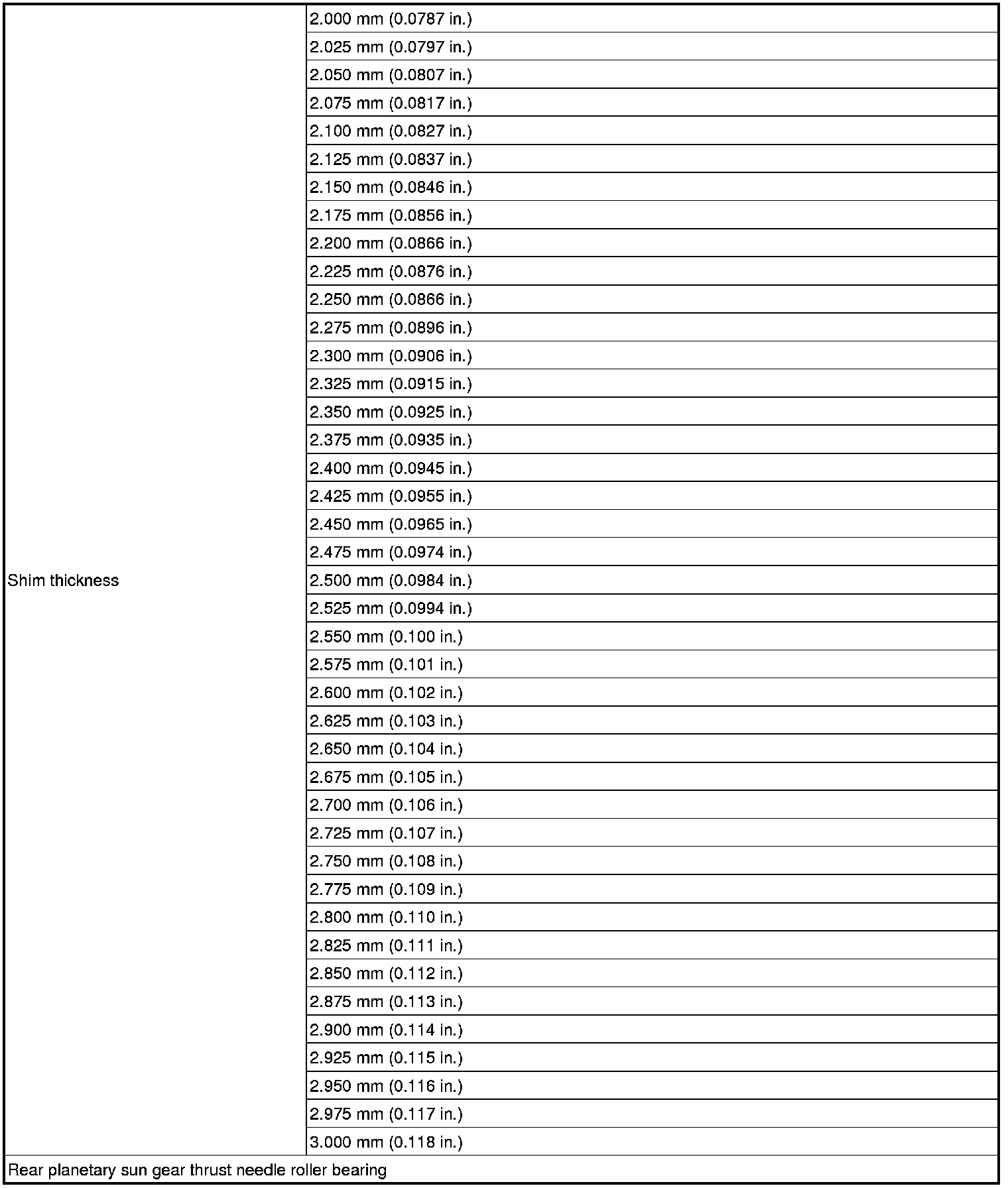

SERVICE DATA

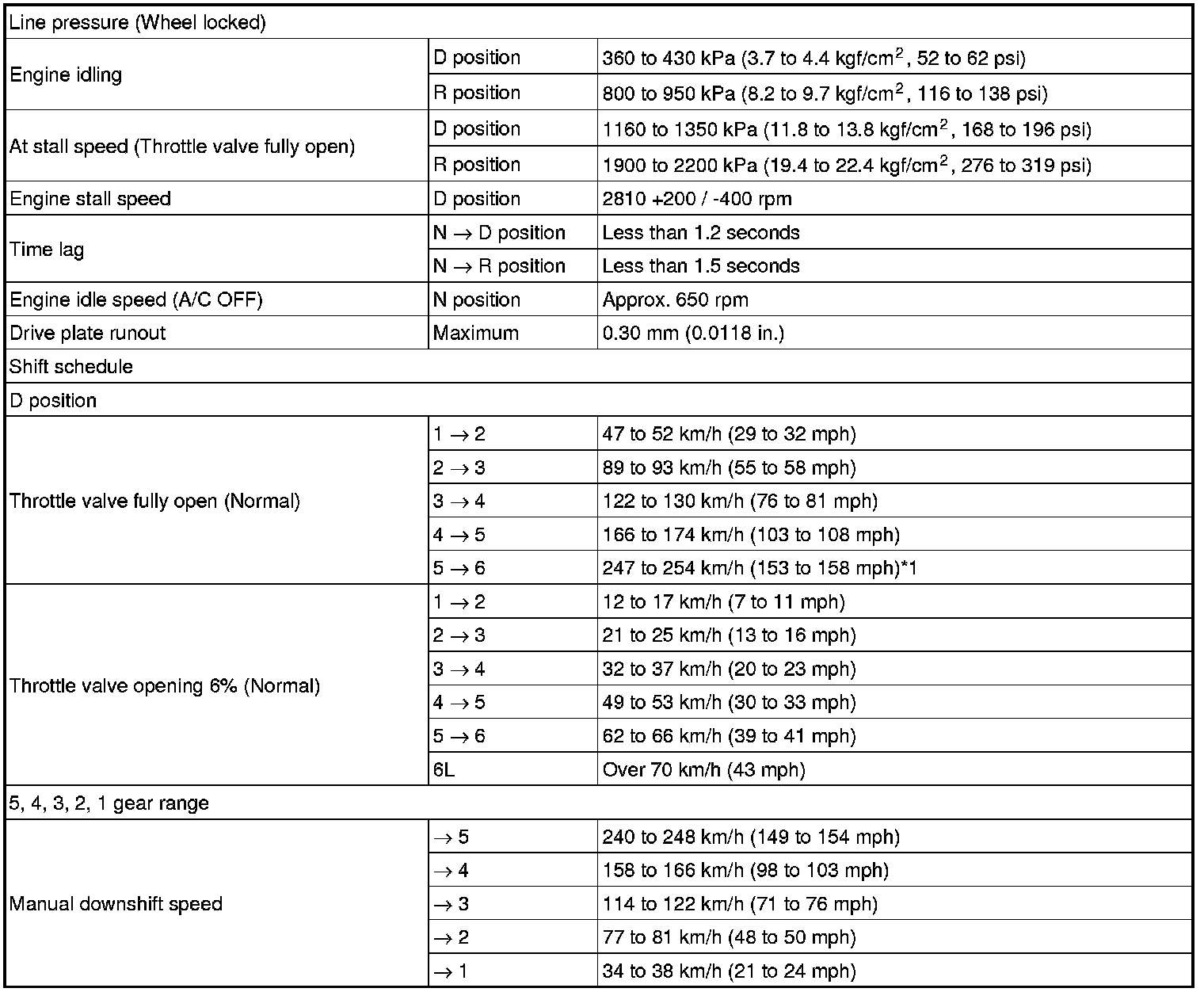

*1: Speed Limiter Active

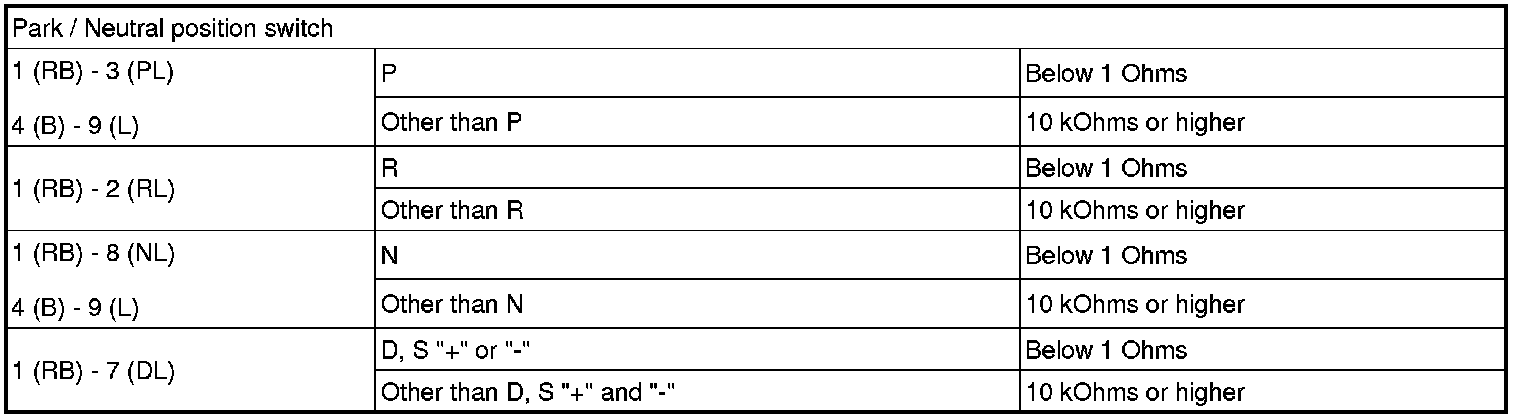

Park / Neutral Position Switch

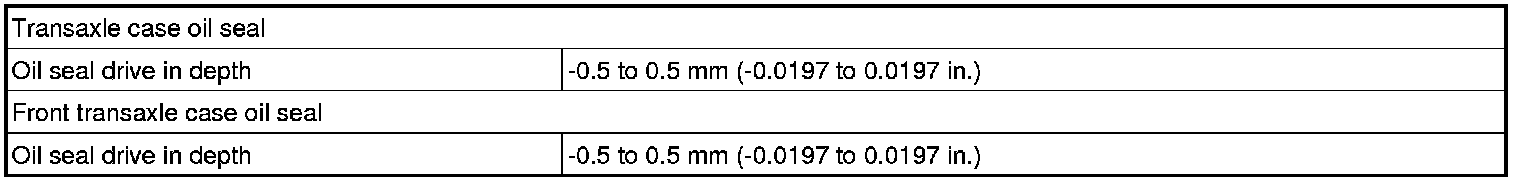

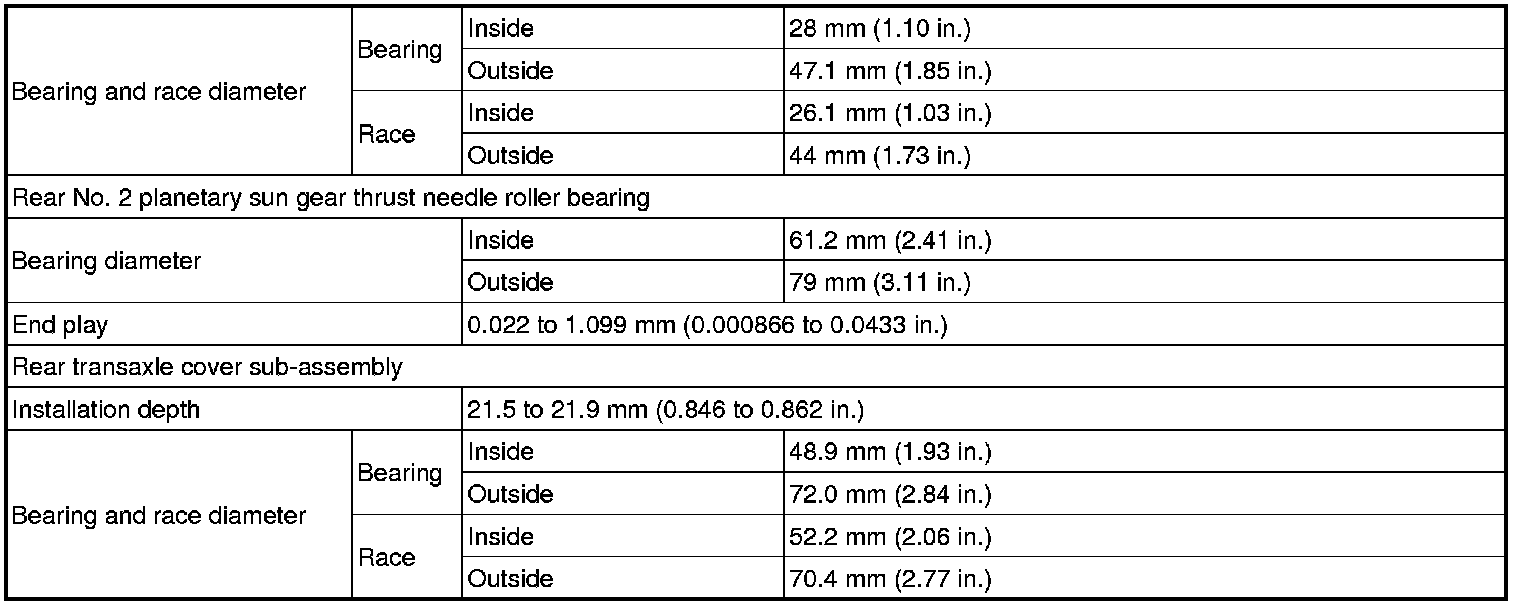

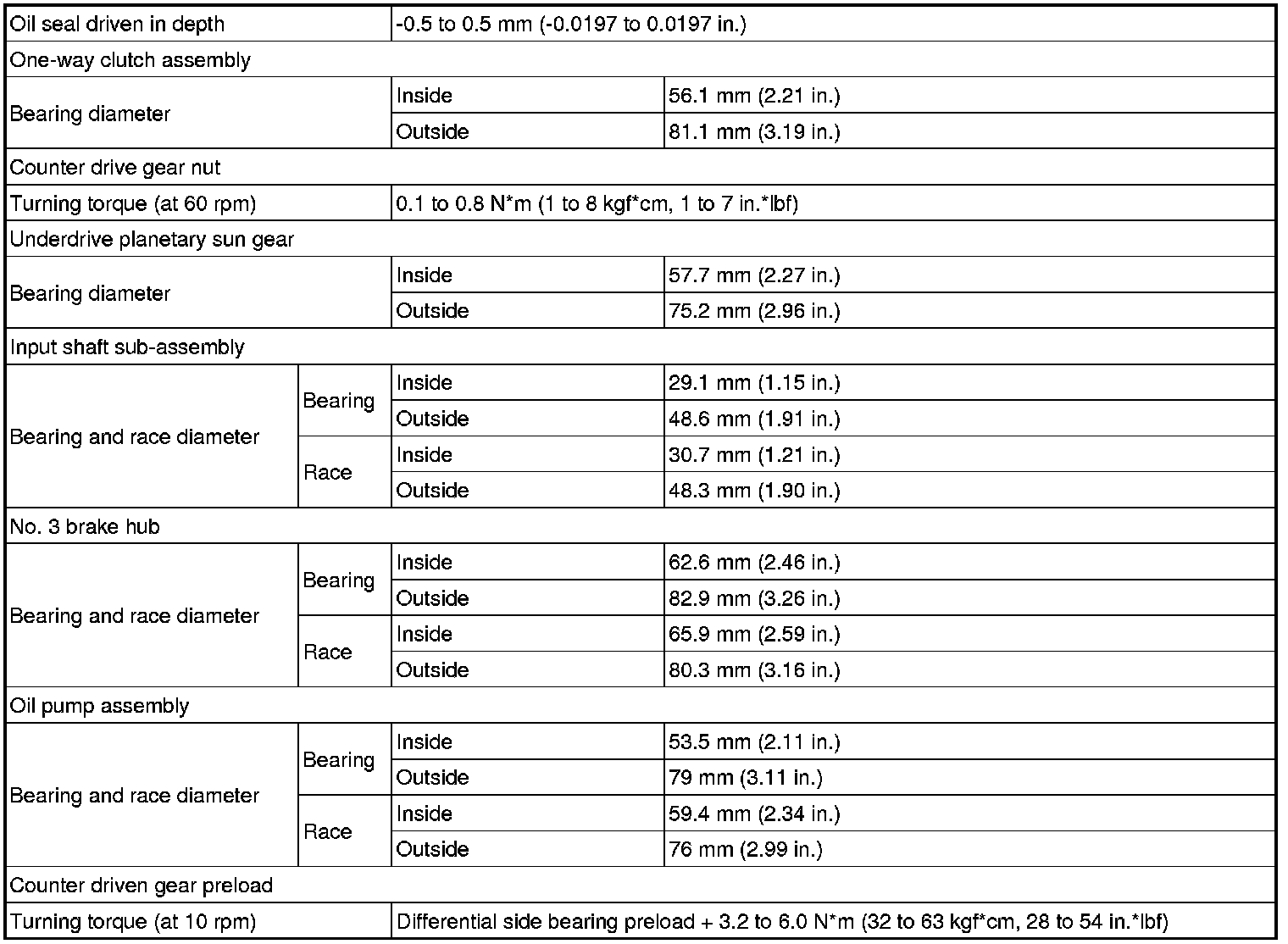

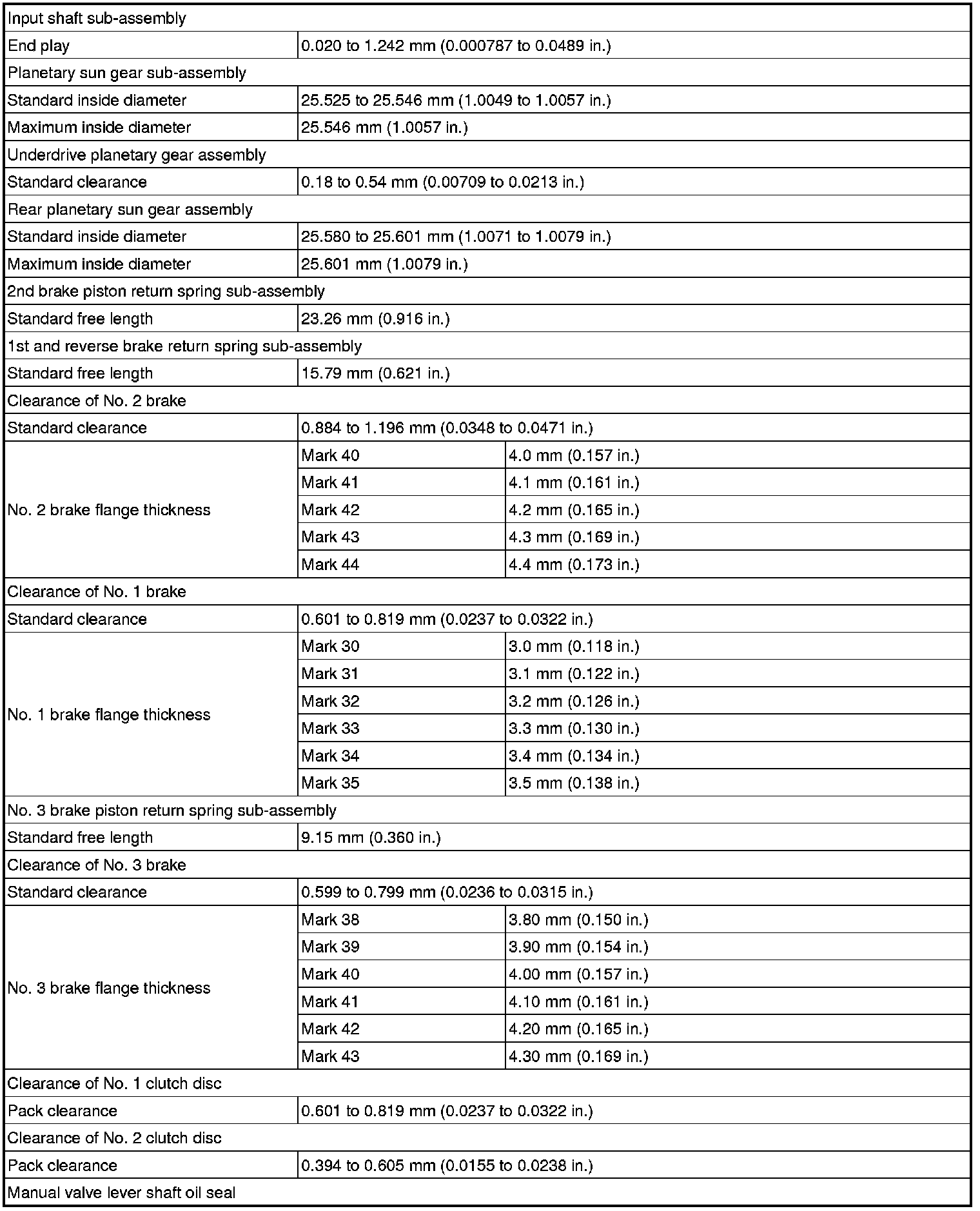

Automatic Transaxle Unit

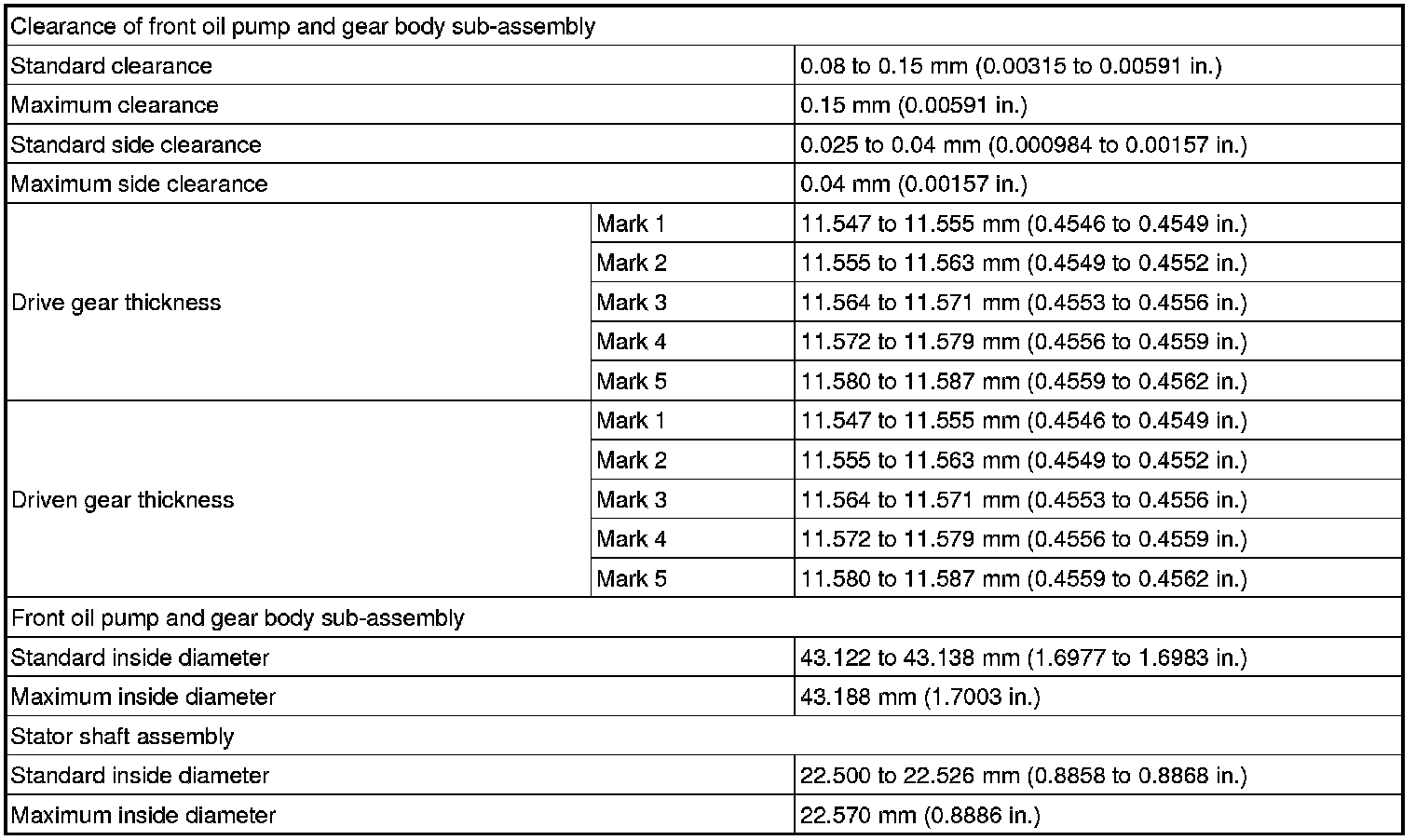

Oil Pump

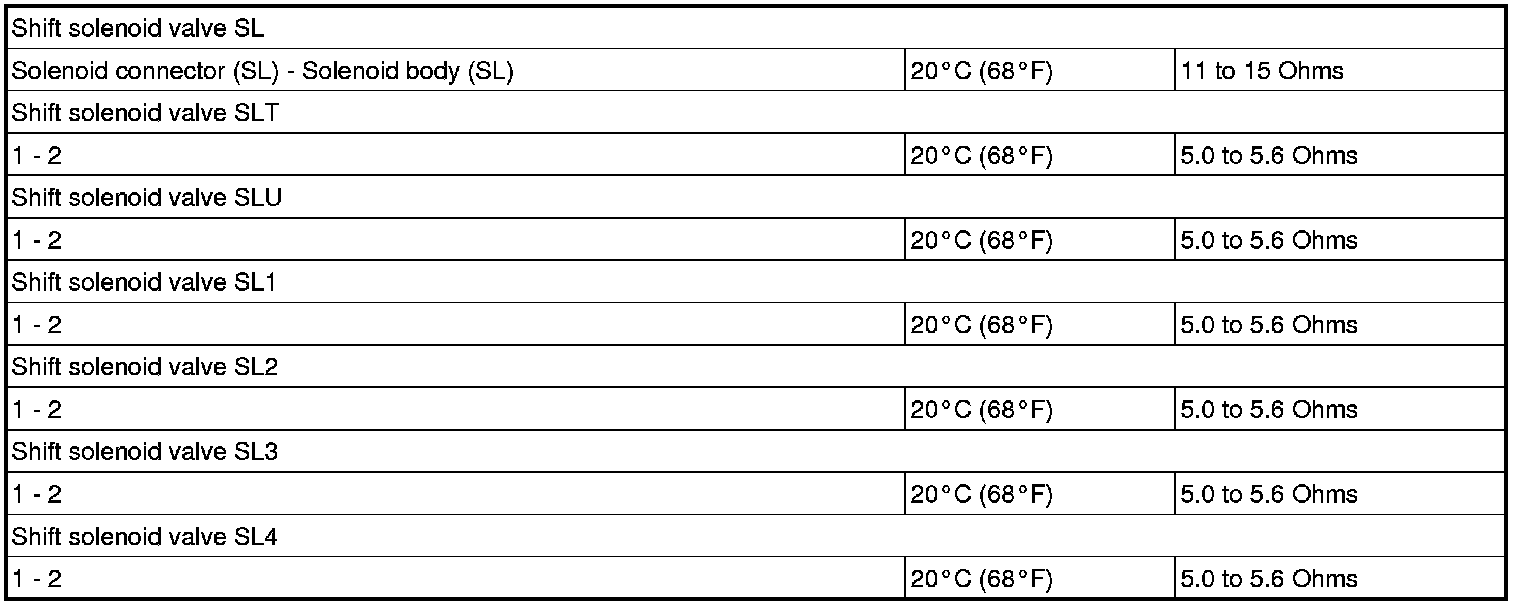

Shift Solenoid Valve

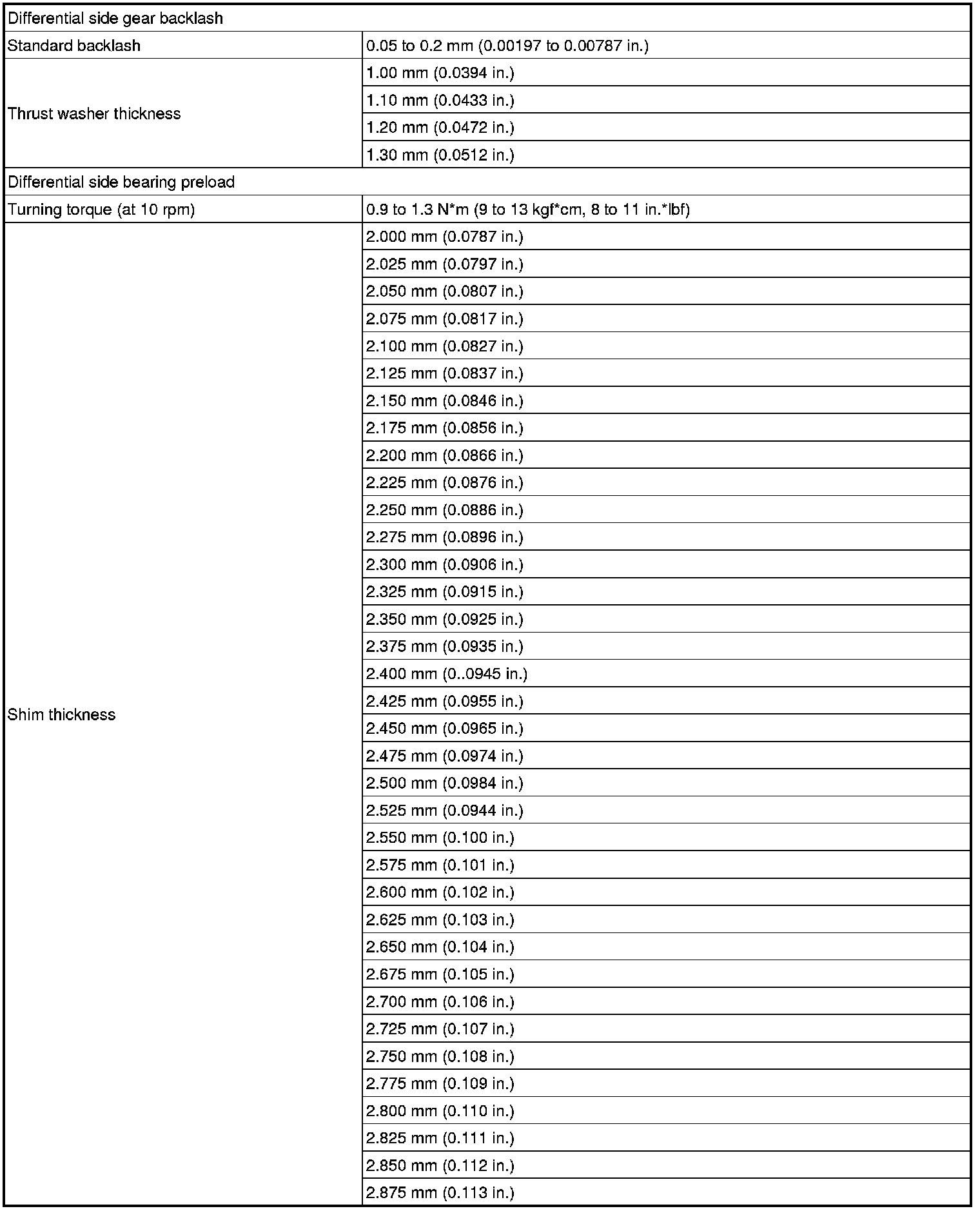

Differential Case
