Transmission Pan
AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

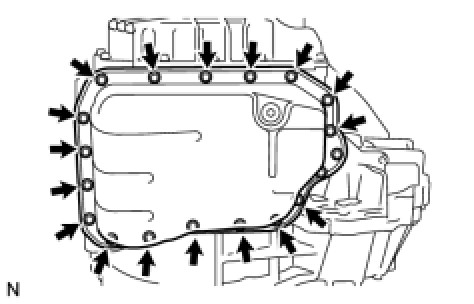

Install the automatic transaxle oil pan sub-assembly and a new gasket to the transaxle case with the 17 bolts.
Torque 7.5 Nm (76 kgf-cm, 66 in-lbf)

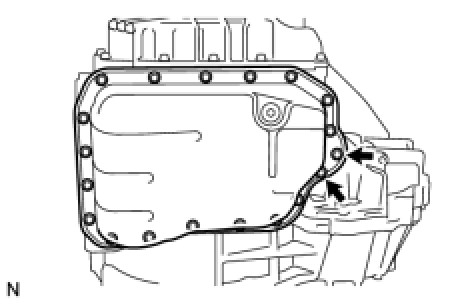

Install the automatic transaxle oil pan sub-assembly and a new gasket to the transaxle case with the 17 bolts.
Torque 7.5 Nm (76 kgf-cm, 66 in-lbf)
