Torque Specifications








SERVICE SPECIFICATIONS: U760E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

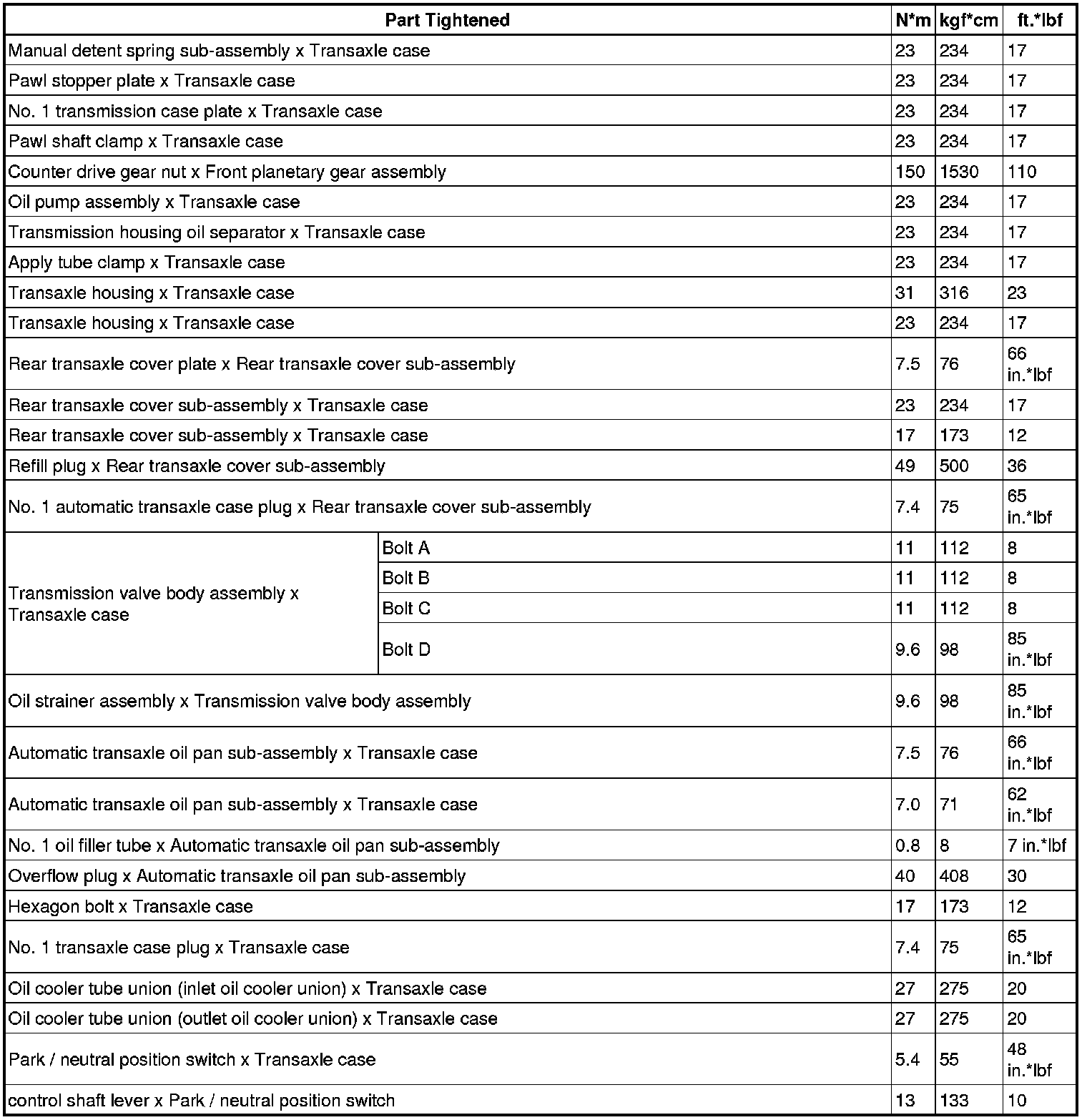

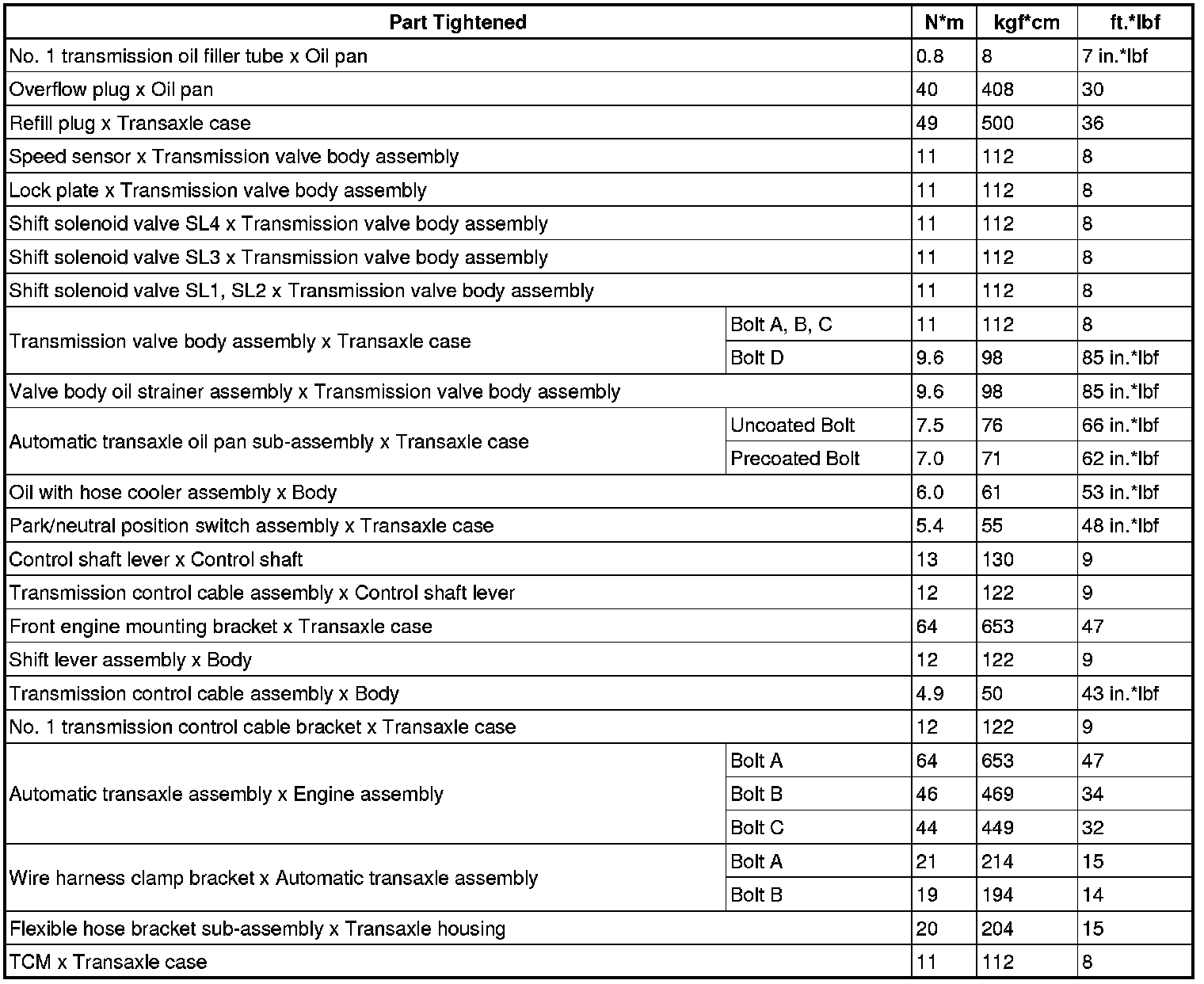

Automatic Transaxle Unit





Oil Pump

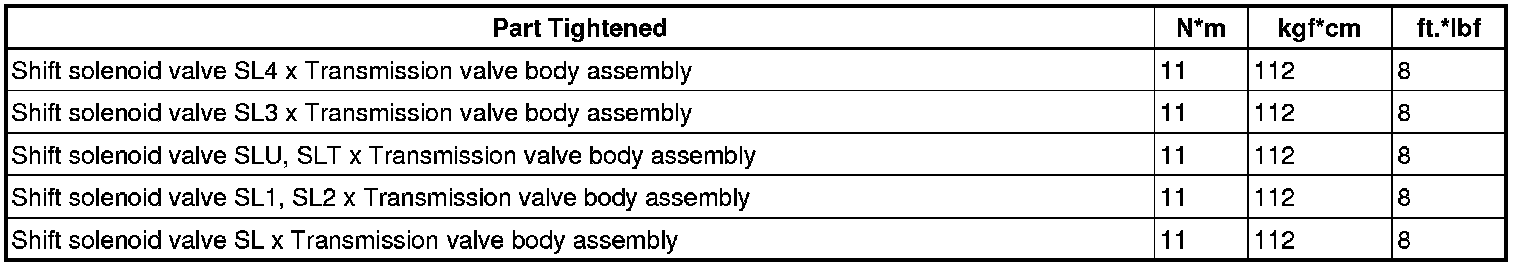

Shift Solenoid Valve





Differential Case
