Intake Manifold

INTAKE MANIFOLD





Install the intake manifold by tightening the 6 bolts in the sequence shown in the illustration.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)


THROTTLE BODY ASSEMBLY

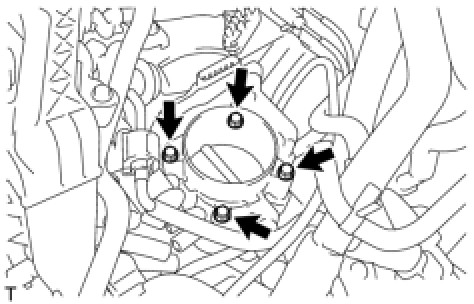

Install the throttle body assembly with the 4 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
