Camshaft
CAMSHAFT BEARING
CAP

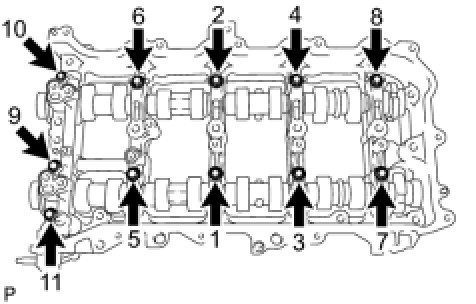

Install the 11 bolts in the order shown in the illustration.
Torque
16 Nm (163 kgf-cm, 12 ft-lbf)
