Oil Pump

Timing Chain Cover

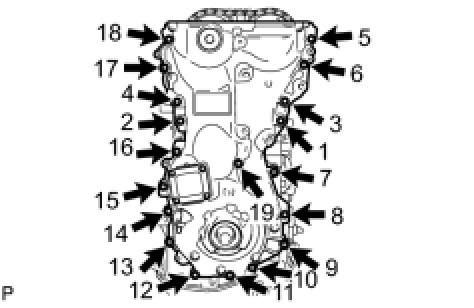

Tighten the 17 bolts and 2 nuts in several steps, in the sequence shown in the illustration.
for bolt 1, 2, 3 and 4
Torque 55 Nm (561 kgf-cm, 41 ft-lbf)
except bolt 1, 2, 3 and 4
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
