NO. 1 CHAIN TENSIONER ASSEMBLY





Install a new gasket and the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)



CRANKSHAFT PULLEY

Torque 260 Nm (2651 kgf-cm, 192 ft-lbf)

TIMING CHAIN COVER SUB-ASSEMBLY





Temporarily install the timing chain cover with the 17 bolts and 2 nuts.

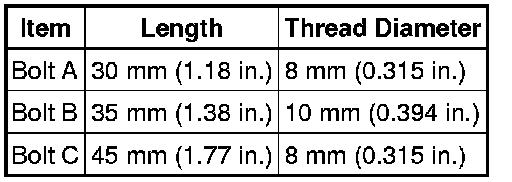

Bolt Length:

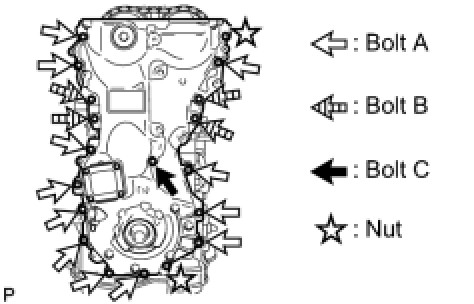

Tighten the 17 bolts and 2 nuts in several steps, in the sequence shown in the illustration.
for bolt 1, 2, 3 and 4
Torque 55 Nm (561 kgf-cm, 41 ft-lbf)
except bolt 1, 2, 3 and 4
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
