System Specifications








SERVICE SPECIFICATIONS: 1AR-FE ENGINE MECHANICAL: SERVICE DATA

SERVICE DATA

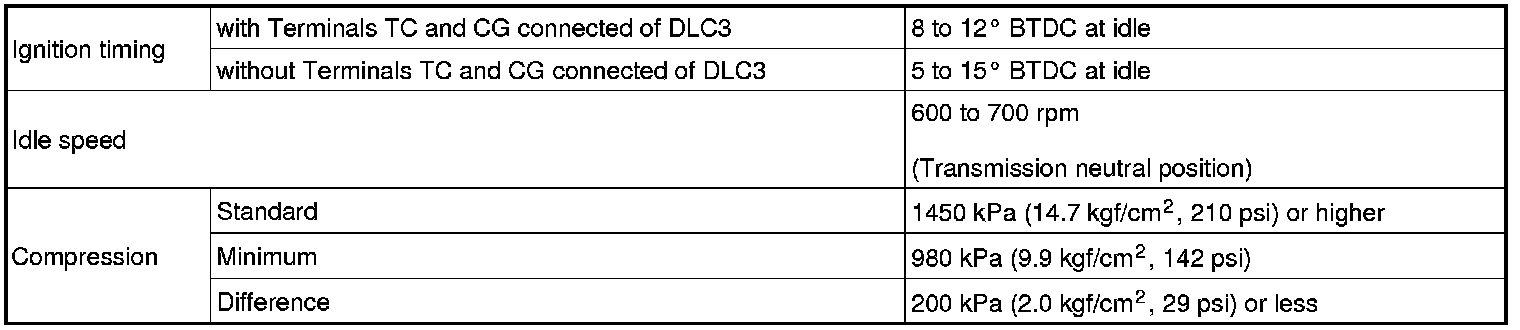

ENGINE

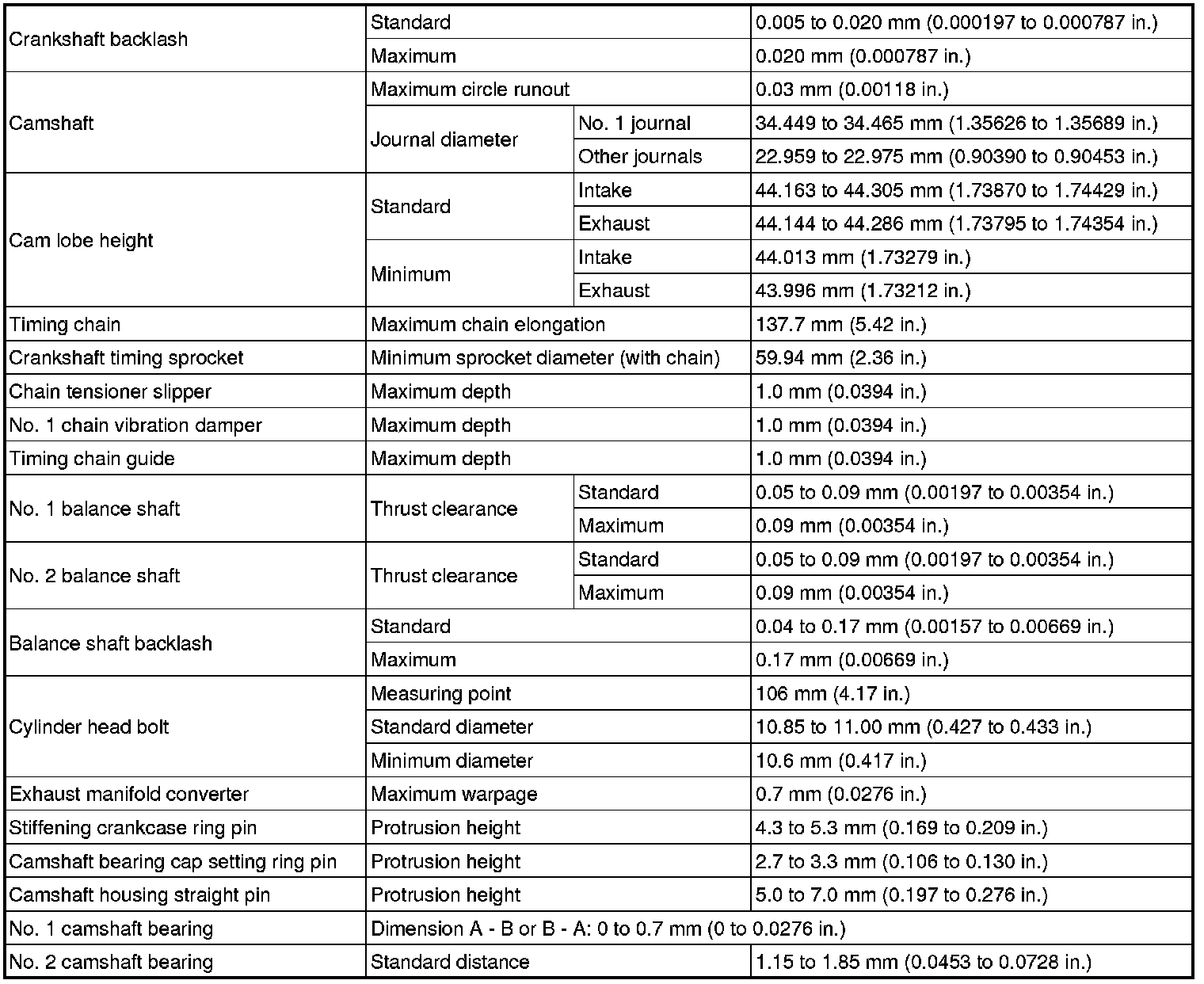

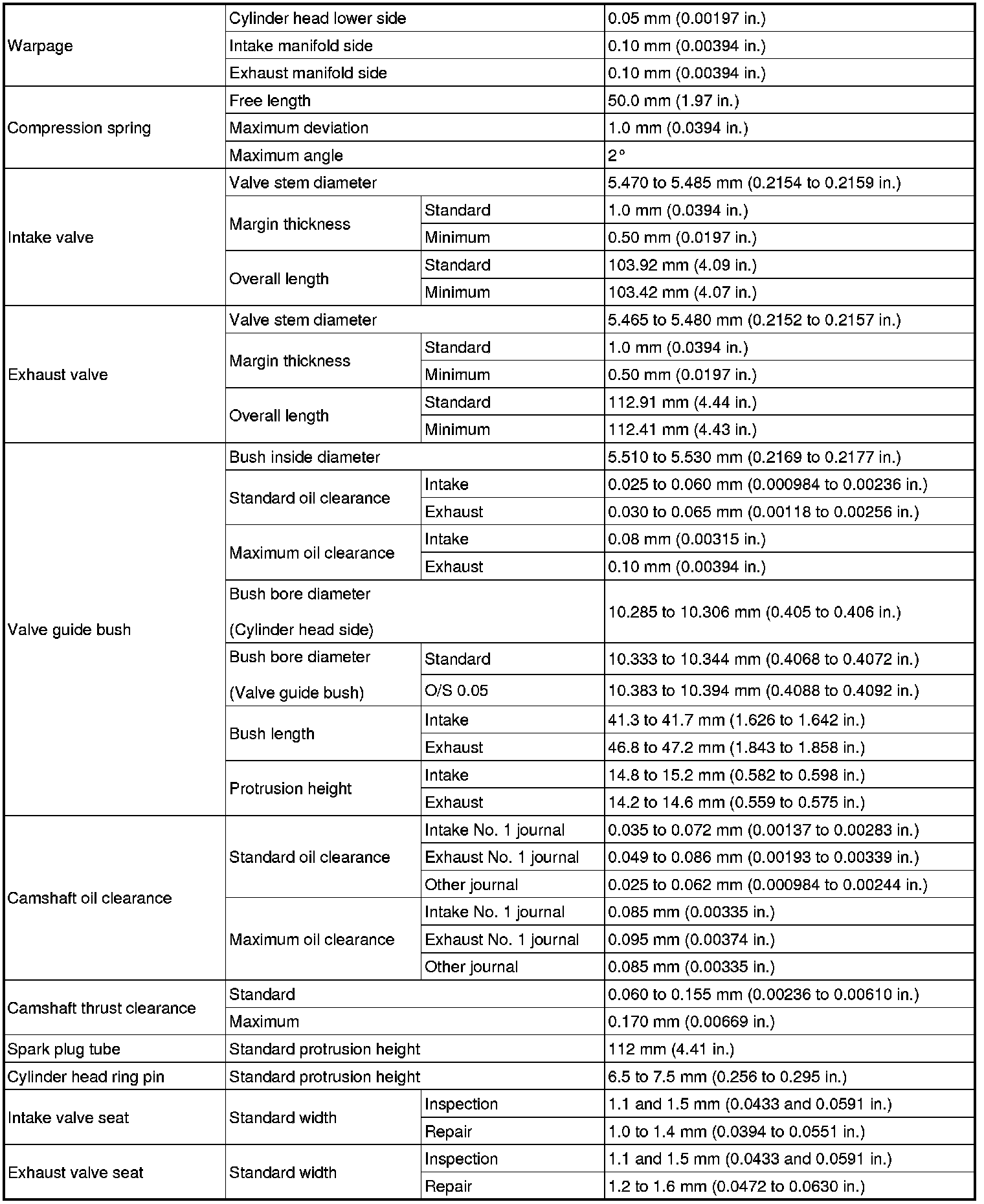

CYLINDER HEAD

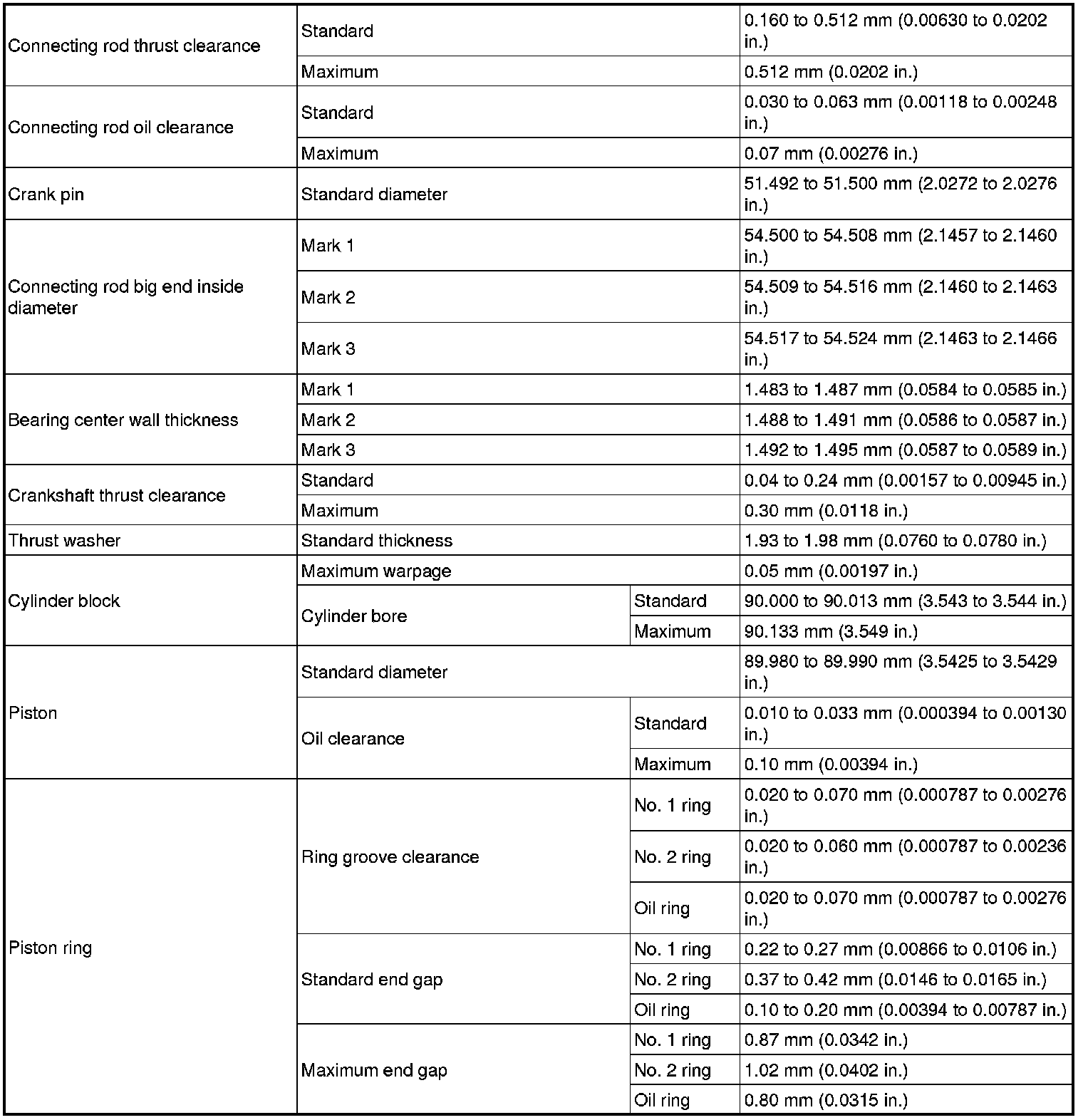

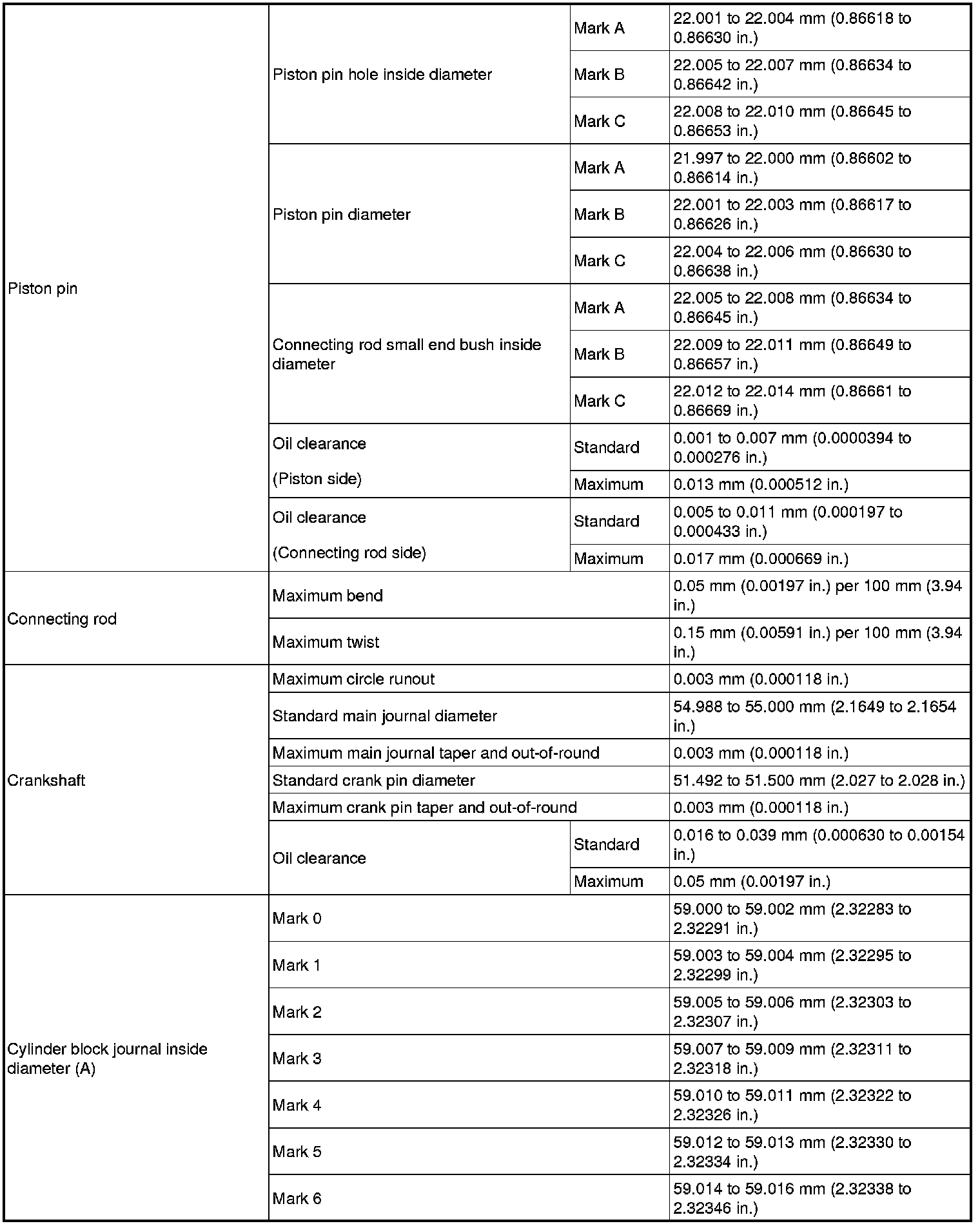

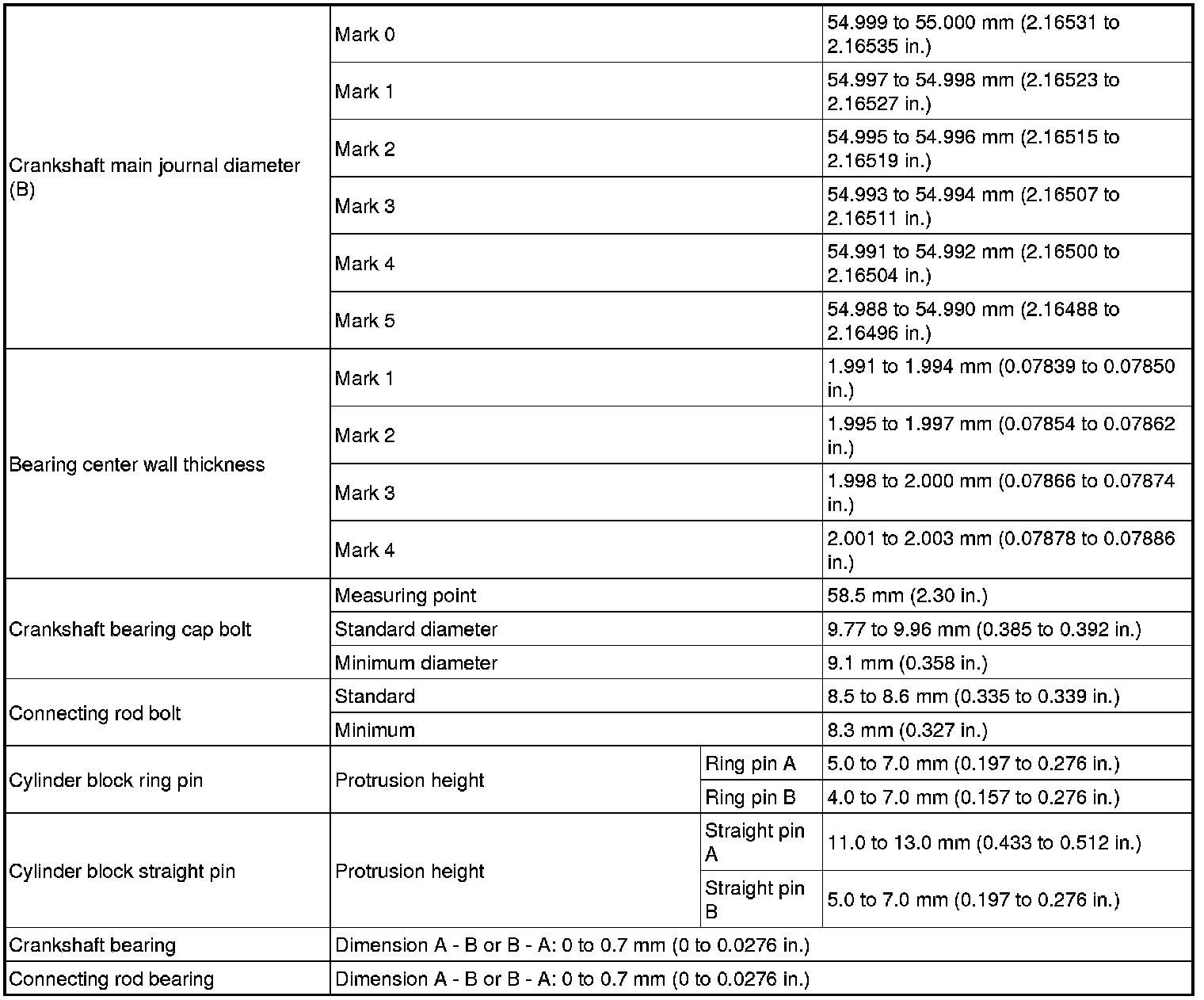

CYLINDER BLOCK













ENGINE UNIT
