2GR-FE STARTING: SMART KEY SYSTEM: B2271: Ignition Hold Monitor Malfunction

DTC B2271 - Ignition Hold Monitor Malfunction

DESCRIPTION

This DTC is output when a problem such as an open in the AM2 fuse, an open or short in the wire harness between the fuse and main body ECU (instrument panel junction block), a short in the IG output circuit inside the main body ECU (instrument panel junction block), a short between the main body ECU (instrument panel junction block) and relay, and a short in the relay is detected Engine Immobiliser System (W/ Smart Key System).
HINT: When the main body ECU (instrument panel junction block) is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.
After the main body ECU (instrument panel junction block) is replaced, perform the registration procedures for the engine immobiliser system.





WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Delete the DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT: After all DTCs are cleared, check if the trouble occurs again 6 seconds after the engine switch is turned on (IG).
(b) Check for DTCs again.
OK:
No DTC is output.
NG -- CHECK HARNESS AND CONNECTOR (MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK) - BATTERY)
OK -- USE SYMPTOM METHOD TO CHECK
2. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK) - BATTERY)

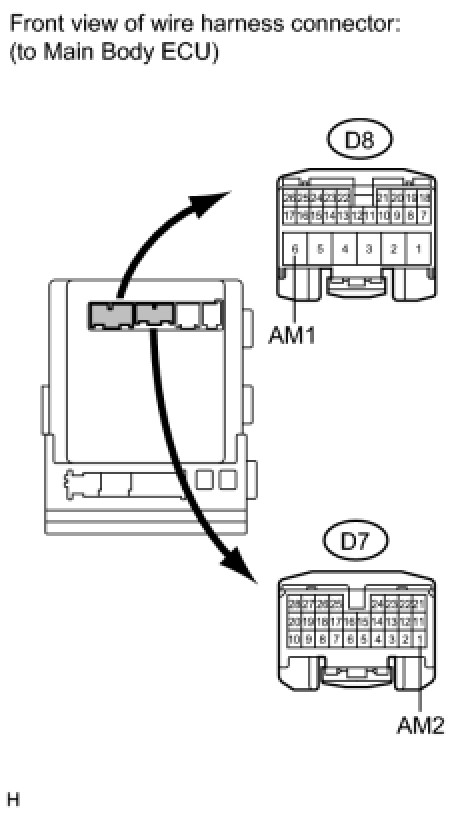

(a) Disconnect the D7 and D8 ECU connectors.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR, OR FUSE
OK -- REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)
