C1528

POWER STEERING: POWER STEERING SYSTEM: C1528: Motor Rotation Angle Sensor Malfunction

DTC C1528 - Motor Rotation Angle Sensor Malfunction

DESCRIPTION

The motor rotation angle sensor detects the motor rotation angle and sends this information to the power steering ECU.






WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK CONNECTOR CONNECTION CONDITION
(a) Check the installation condition of the motor rotation angle sensor connector.
OK:
Motor rotation angle sensor connector is securely connected to the power steering ECU.
Result:






B -- READ VALUE USING TECHSTREAM (MOTOR ROTATION ANGLE SENSOR)
A -- Continue to next step.
2. RECONFIRM DTC
(a) Reinstall motor rotation angle sensor connector.
(b) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.
OK:
DTC is not output.
Result:






B -- END
A -- Continue to next step.
3. READ VALUE USING TECHSTREAM (MOTOR ROTATION ANGLE SENSOR)
(a) Turn the ignition switch off.
(b) Connect Techstream to the DLC3.
(c) Turn the ignition switch on (IG).
(d) Turn Techstream on.
(e) Enter the following menus: Chassis / EMPS / Data List.
(f) Select the item "Motor Rotation Angle" in the Data List and read the value displayed on Techstream.

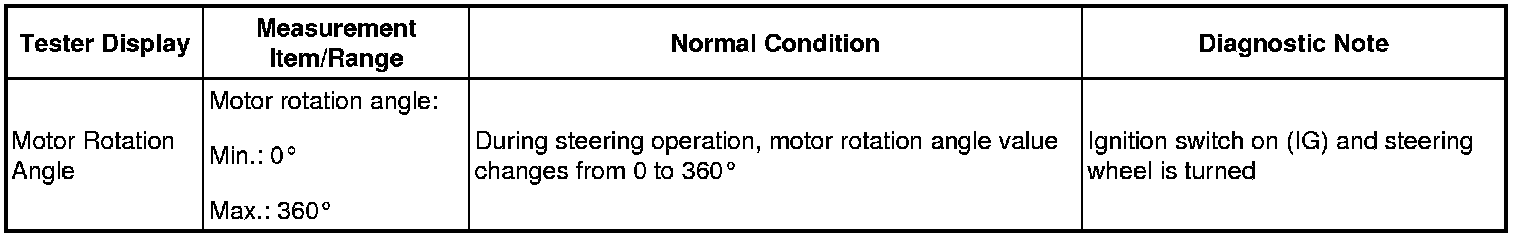

EMPS:





OK:
During steering operation, motor rotation angle value changes from 0 to 360°
NG -- REPLACE STEERING COLUMN ASSEMBLY
OK -- REPLACE POWER STEERING ECU
