2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0011,P0012,P0021,P0022: Camshaft Position "A" - Timing Over-Advanced or System Performance (Bank 1)
DTC P0011 - Camshaft Position "A" - Timing Over-Advanced or System Performance (Bank 1)
DTC P0012 - Camshaft Position "A" - Timing Over-Retarded (Bank 1)
DTC P0021 - Camshaft Position "A" - Timing Over-Advanced or System Performance (Bank 2)
DTC P0022 - Camshaft Position "A" - Timing Over-Retarded (Bank 2)
CAUTION / NOTICE / HINT
HINT: If DTC P0011, P0012, P0021 or P0022 is present, check the VVT (Variable Valve Timing) system.
DESCRIPTION
The Variable Valve Timing (VVT) system includes the ECM, camshaft oil control valve and VVT controller. The ECM sends a target duty-cycle control signal to the camshaft oil control valve. This control signal regulates the oil pressure supplied to the VVT controller. Camshaft timing control is performed according to engine operating conditions such as intake air volume, throttle valve position and engine coolant temperature. The ECM controls the camshaft oil control valve, based on the signals transmitted by several sensors. The VVT controller regulates the intake camshaft angle using oil pressure through the camshaft oil control valve. As a result, the relative positions of the camshaft and crankshaft are optimized, the engine torque and fuel economy improves, and the exhaust emissions decrease under overall driving conditions. The ECM detects the actual intake valve timing using signals from the camshaft and crankshaft position sensors, and performs feedback control. This is how the target intake valve timing is verified by the ECM.
MONITOR DESCRIPTION
The ECM optimizes the intake valve timing using the VVT (Variable Valve Timing) system to control the intake camshaft. The VVT system includes the ECM, the oil control valve and the VVT controller. The ECM sends a target duty-cycle control signal to the camshaft timing oil control valve. This control signal regulates the oil pressure applied to the VVT controller. The VVT controller can advance or retard the intake camshaft.
If the difference between the target and actual intake valve timings is large, and changes in actual intake valve timing are small, the ECM interprets this as the VVT controller stuck malfunction and sets a DTC.
Example:
A DTC will be set when the following conditions 1), 2) and 3) are met:
1) It takes 5 seconds or more to change the valve timing by 5° CA.
2) After above conditions 1) and 2) are met, the camshaft timing oil control valve is forcibly activated 63 times or more.
DTCs P0011 and P0021 (Advanced Cam Timing) are detected with 1 trip detection logic.
DTCs P0012 and P0022 (Retarded Cam Timing) are detected with 2 trip detection logic.
These DTCs indicate that the VVT controller cannot operate properly due to camshaft timing oil control valve malfunctions or the presence of foreign objects in the camshaft timing oil control valve.
The monitor will not run unless the following conditions are met:
- The engine is warm (the engine coolant temperature is 75°C [167°F] or more).
- The vehicle has been driven at more than 40 mph (64 km/h) for 3 minutes.
- The engine has idled for 3 minutes.
MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS
P0011, P0021:
P0012, P0022:
If the difference between the target and actual camshaft timings is greater than the specified value, the ECM operates the VVT actuator.
Then, the ECM monitors the camshaft timing change for 5 seconds.
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
- If DTC P0011 or P0012 is displayed, check the bank 1 VVT system circuit.
- Bank 1 refers to the bank that includes cylinder No. 1.
- If DTC P0021 or P0022 is displayed, check the bank 2 VVT system circuit.
- Bank 2 refers to the bank that does not include cylinder No. 1.
- Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
PROCEDURE
1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0011, P0012, P0021 OR P0022)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch on (IG) and turn the tester on.
(c) Select the following menu items: Powertrain / Engine and ECT / Trouble Code.
(d) Read the DTCs.
Result:
HINT: If any DTCs other than P0011, P0012, P0021 or P0022 are output, troubleshoot those DTCs first.
B -- GO TO DTC CHART
A -- Continue to next step.
2. PERFORM ACTIVE TEST USING TECHSTREAM (OPERATE OIL CONTROL VALVE FOR INTAKE CAMSHAFT)
(a) Connect the Techstream to the DLC3.
(b) Start the engine and turn the tester on.
(c) Warm up the engine.
(d) Select the following menu items: Powertrain / Engine and ECT / Active Test / Control the VVT System (Bank 1) or Control the VVT System (Bank 2).
(e) Check the engine speed while operating the oil control valve using the tester.
OK:
NG -- CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMPED TEETH ON TIMING CHAIN)
OK -- Continue to next step.
3. CHECK WHETHER DTC OUTPUT RECURS (DTC P0011, P0012, P0021 OR P0022)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch on (IG) and turn the tester on.
(c) Clear the DTCs DTC Check / Clear.
(d) Start the engine and warm it up.
(e) Switch the check mode using the tester Check Mode Procedure.
(f) Drive the vehicle for more than 10 minutes.
(g) Read the DTCs using the tester.
OK:
No DTC output.
NG -- CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMPED TEETH ON TIMING CHAIN)
OK -- SYSTEM IS OK
4. CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMPED TEETH ON TIMING CHAIN)
(a) Remove the cylinder head covers RH and LH.
(b) Turn the crankshaft to align the timing marks of the crankshaft.
(c) Align the notch of the crankshaft pulley to the "0" position.

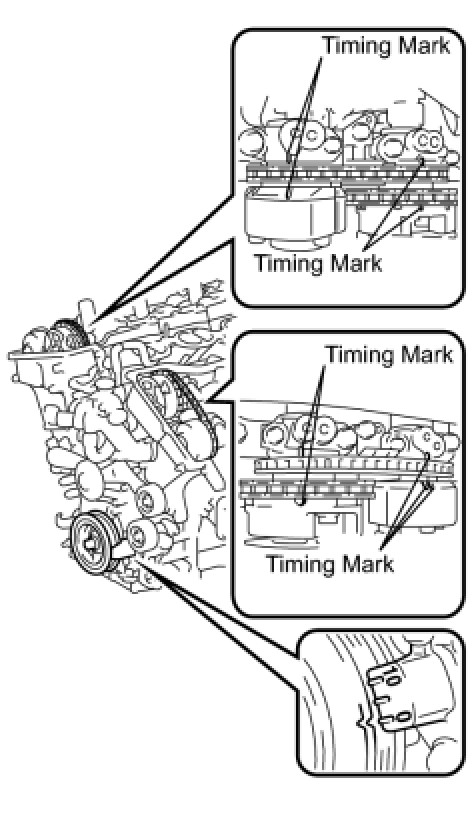

(d) Check if the timing marks of the camshaft pulley and camshaft bearing cap align.
(e) Turn the crankshaft clockwise by 360° if the timing marks do not align. Check if they align once again.
OK:
The timing marks of the camshaft pulley and the camshaft bearing cap align when the notch of the crankshaft pulley is in the "0" position.
NG -- ADJUST VALVE TIMING
OK -- Continue to next step.
5. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT)
(a) Remove the intake camshaft timing oil control valve.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
(c) Apply the positive battery voltage to terminal 1 and the negative battery voltage to terminal 2. Check the valve operation.
OK:
Valve moves quickly.
(d) Reinstall the camshaft timing oil control valve.
NG -- REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
OK -- Continue to next step.
6. CHECK OIL PIPE AND OIL CONTROL VALVE FILTER
(a) Remove the oil pipe No. 1 or oil pipe assembly.
(b) Remove the oil control valve filter.
(c) Check that the filter and pipe are not clogged.
OK:
The filter and pipe are not clogged.
NG -- REPLACE OIL CONTROL VALVE FILTER OR PIPE
OK -- Continue to next step.
7. REPLACE CAMSHAFT TIMING GEAR ASSEMBLY
NEXT -- Continue to next step.
8. CHECK WHETHER DTC OUTPUT RECURS
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch on (IG) and turn the tester on.
(c) Clear the DTCs DTC Check / Clear.
(d) Start the engine and warm it up.
(e) Switch the check mode using the tester Check Mode Procedure.
(f) Drive the vehicle for more than 10 minutes.
(g) Confirm that no DTC is set using the tester.
OK:
No DTC output.
HINT: DTC P0011, P0012, P0021 or P0022 is output when foreign objects in engine oil are caught in some parts of the system. These codes will stay output even if the system returns to normal after a short time. These foreign objects are then captured by the oil filter, thus eliminating the source of the problem.
NG -- REPLACE ECM
OK -- SYSTEM IS OK
