P0171
2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0171,P0172,P0174,P0175: System Too Lean (Bank 1)
DTC P0171 - System Too Lean (Bank 1)
DTC P0172 - System Too Rich (Bank 1)
DTC P0174 - System Too Lean (Bank 2)
DTC P0175 - System Too Rich (Bank 2)
DESCRIPTION
The fuel trim is related to the feedback compensation value, not to the basic injection time. The fuel trim consists of both the short-term and long-term fuel trims.
The short-term fuel trim is fuel compensation that is used to constantly maintain the air fuel ratio at stoichiometric levels. The signal from the air fuel ratio sensor indicates whether the air fuel ratio is rich or lean compared to the stoichiometric ratio. This triggers a reduction in the fuel injection volume if the air fuel ratio is rich and an increase in the fuel injection volume if it is lean.
Factors such as individual engine differences, wear over time and changes in operating environment cause short-term fuel trim to vary from the central value. The long-term fuel trim, which controls overall fuel compensation, compensates for long-term deviations in the fuel trim from the central value caused by the short- term fuel trim compensation.

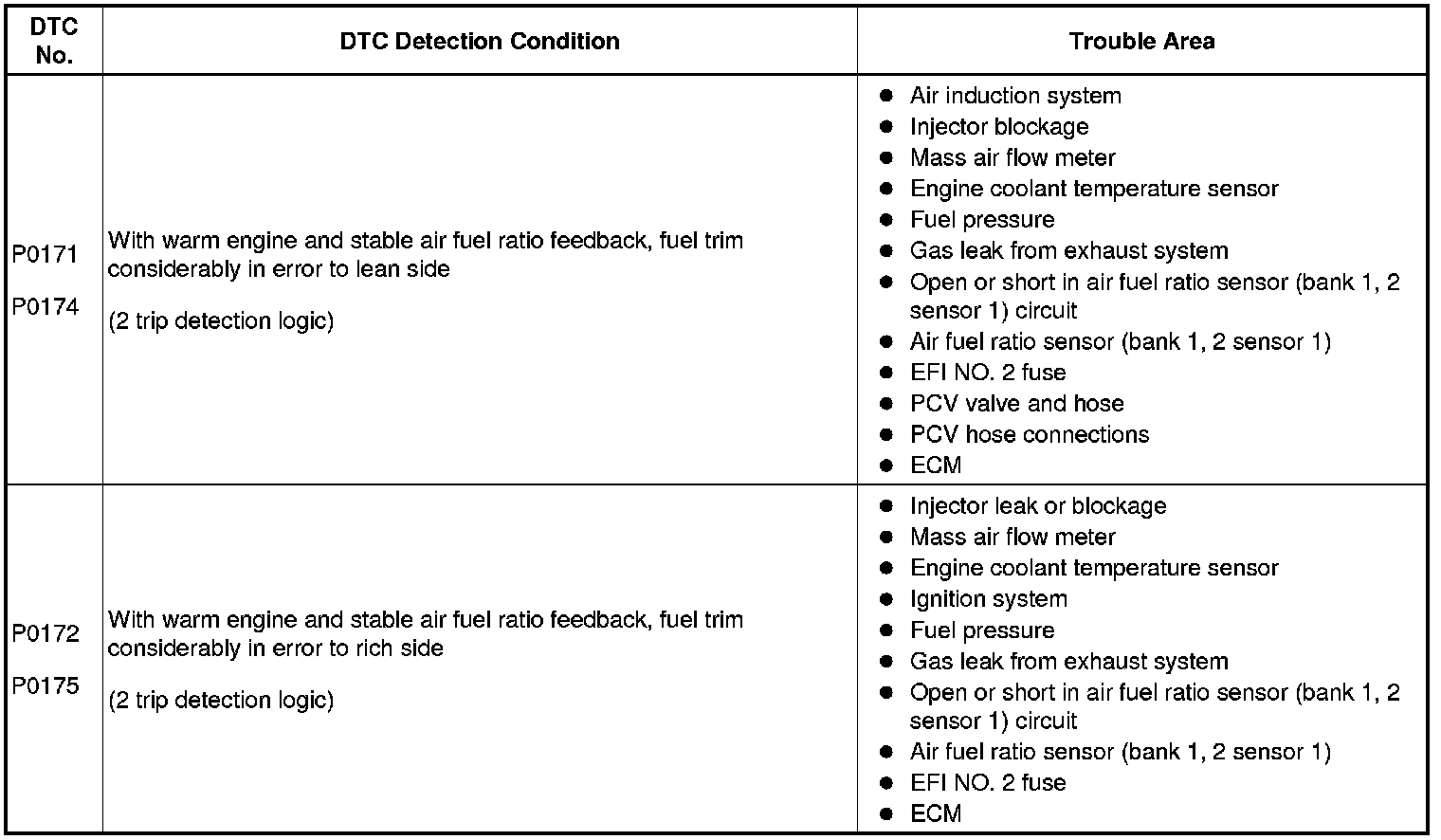

If both the short-term and long-term fuel trims are lean or rich beyond predetermined values, it is interpreted as a malfunction, and the ECM illuminates the MIL and sets a DTC.
HINT:
- When DTC P0171 or P0174 is set, the actual air fuel ratio is on the lean side. When DTC P0172 or P0175 is set, the actual air fuel ratio is on the rich side.
- If the vehicle runs out of fuel, the air fuel ratio is lean and DTC P0171 or P0174 may be set. The MIL is then illuminated.
- When the total of the short-term and long-term fuel trim values is within the malfunction threshold (and the engine coolant temperature is more than 75°C [167°F]), the system is functioning normally.
MONITOR DESCRIPTION
Under closed-loop fuel control, fuel injection volumes that deviate from those estimated by the ECM cause changes in the long-term fuel trim compensation value. The long-term fuel trim is adjusted when there are persistent deviations in the short-term fuel trim values. Deviations from the ECM's estimated fuel injection volumes also affect the average fuel trim learning value, which is a combination of the average short-term fuel trim (fuel feedback compensation value) and the average long-term fuel trim (learning value of the air fuel ratio). If the average fuel trim learning value exceeds the malfunction thresholds, the ECM interprets this a fault in the fuel system and sets a DTC.
Example:
The average fuel trim learning value is more than +35% or less than -35%, the ECM interprets this as a fuel system malfunction.

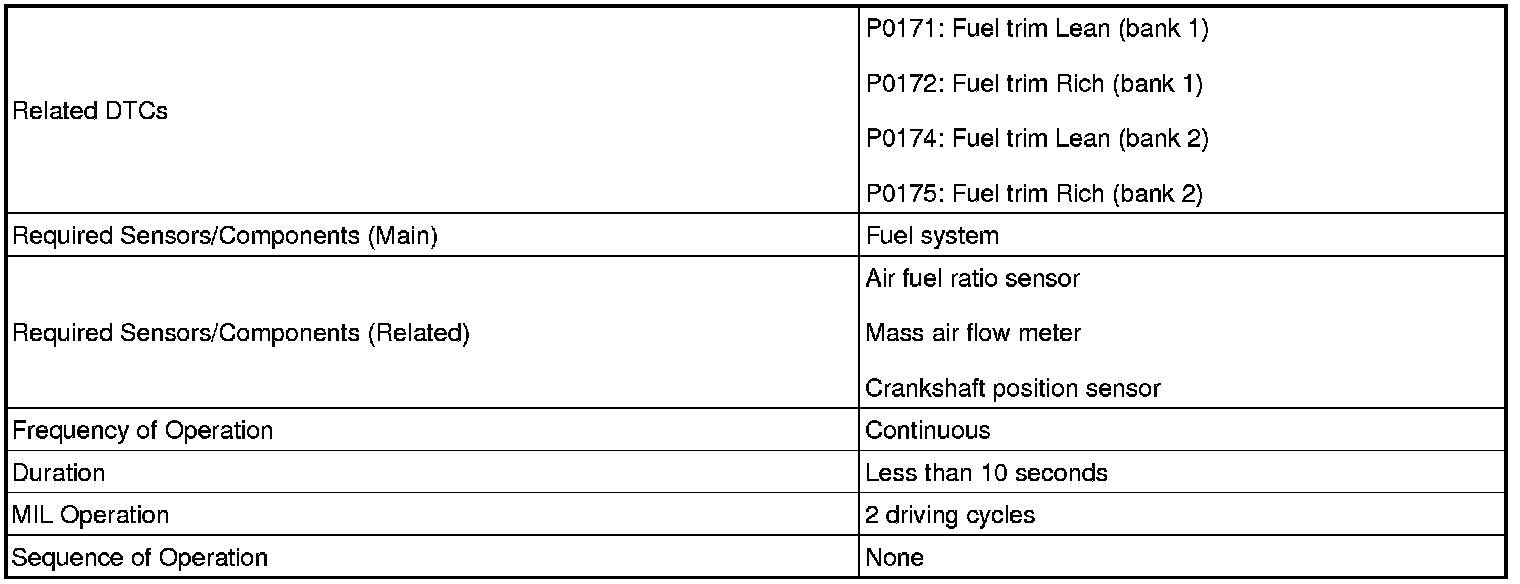

MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
Fuel-trim:
TYPICAL MALFUNCTION THRESHOLDS
Fuel-trim:
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT: Malfunctioning areas can be identified by performing the Control the Injection Volume for A/F sensor function provided in the Active Test. The Control the Injection Volume for A/F sensor function can help to determine whether the air fuel ratio sensor, heated oxygen sensor and other potential trouble areas are malfunctioning.
The following instructions describe how to conduct the Control the Injection Volume for A/F sensor operation using the Techstream.
1. Connect the Techstream to the DLC3.
2. Start the engine.
3. Turn the tester on.
4. Warm up the engine at an engine speed of 2500 rpm for approximately 90 seconds.
5. Select the following menu items: Powertrain / Engine and ECT / Active Test / Control the Injection Volume for A/F sensor.
6. Perform the Active Test operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume.)
7. Monitor the output voltages of the air fuel ratio and heated oxygen sensors (AFS Voltage B1 S1 or AFS Voltage B2 S1 and O2S B1 S2 or O2S B2 S2) displayed on the tester.
HINT:
- The Control the Injection Volume for A/F sensor operation lowers the fuel injection volume by 12.5% or increases the injection volume by 25%.
- Each sensor reacts in accordance with increases and decreases in the fuel injection volume.
NOTE: The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.
- Following the Control the Injection Volume for A/F sensor procedure enables technicians to check and graph the voltage outputs of both the air fuel ratio and heated oxygen sensors.
- To display the graph, select the following menu items:
Powertrain / Engine and ECT / Active Test / Control the Injection Volume for A/F Sensor / A/F Control System / AFS Voltage B1 S1 or AFS Voltage B2 S1 and O2S B1 S2 or O2S B2 S2; then press the graph button on the Data List view.
HINT:
- Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
- A low air fuel ratio sensor voltage could be caused by a rich air fuel mixture. Check for conditions that would cause the engine to run rich.
- A high air fuel ratio sensor voltage could be caused by a lean air fuel mixture. Check for conditions that would cause the engine to run lean.
PROCEDURE
1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0171, P0172, P0174 OR P0175)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch on (IG).
(c) Turn the tester on.
(d) Select the following menu items: Powertrain / Engine and ECT / Trouble Codes.
(e) Read DTCs.
Result:
HINT: If any DTCs other than P0171, P0172, P0174 or P0175 are output, troubleshoot those DTCs first.
B -- GO TO DTC CHART
A -- Continue to next step.
2. CHECK PCV HOSE CONNECTIONS
OK:
PCV hose is connected correctly and is not damaged.
NG -- REPAIR OR REPLACE PCV HOSE
OK -- Continue to next step.
3. CHECK AIR INDUCTION SYSTEM
(a) Check the air induction system for vacuum leak Intake System.
OK:
No leak from air induction system.
NG -- REPAIR OR REPLACE AIR INDUCTION SYSTEM
OK -- Continue to next step.
4. PERFORM ACTIVE TEST USING TECHSTREAM (AIR FUEL RATIO CONTROL)
(a) Connect the Techstream to the DLC3.
(b) Start the engine.
(c) Turn the tester on.
(d) Warm up the engine at an engine speed of 2500 rpm for approximately 90 seconds.
(e) Select the following menu items: Powertrain / Engine and ECT / Active Test / Control the Injection Volume for A/F Sensor.
(f) Perform the Control the Injection Volume for A/F Sensor operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume).
(g) Monitor the voltage outputs of the air fuel ratio sensor and the heated oxygen sensor (AFS Voltage B1 S1 or AFS Voltage B2 S1 and O2S B1 S2 or O2S B2 S2) displayed on the tester.
HINT:
- The Control the Injection Volume for A/F Sensor operation lowers the fuel injection volume by 12.5% or increases the injection volume by 25%.
- Each sensor reacts in accordance with increases and decreases in the fuel injection volume.
Standard:
Result
Lean: During Control the Injection Volume for A/F Sensor, the air fuel ratio sensor output voltage (AFS) is consistently more than 3.5 V, and the heated oxygen sensor output voltage (O2S) is consistently less than 0.4 V.
Rich: During Control the Injection Volume for A/F Sensor, the AFS is consistently less than 3.1 V, and the O2S is consistently more than 0.55 V.
Lean/Rich: During Control the Injection Volume for A/F Sensor of the Active Test, the output voltage of the heated oxygen sensor alternates correctly.
C -- PERFORM CONFIRMATION DRIVING PATTERN
B -- INSPECT AIR FUEL RATIO SENSOR (HEATER RESISTANCE)
A -- Continue to next step.
5. READ VALUE USING TECHSTREAM (COOLANT TEMP)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch on (IG).
(c) Turn the tester on.
(d) Select the following menu items: Powertrain / Engine and ECT / Data List / All Data / Coolant Temp.
(e) Read the Data List twice, when the engine is both cold and warmed up.
Standard value:
With cold engine: Same as ambient air temperature.
With warm engine: 80 to 100°C (176 to 212°F).
NG -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR
OK -- Continue to next step.
6. INSPECT MASS AIR FLOW METER
(a) Read the values using the Techstream (mass air flow).
NOTICE:
- Turn the ignition switch off.
- Perform the inspection with the vehicle indoors and on a level surface.
- Perform the inspection of the mass air flow meter while it is installed in the air cleaner case (installed on the vehicle).
- During the test, do not use the exhaust air duct to perform suction on the exhaust pipe.
(1) Turn the ignition switch on (IG) (do not start the engine).
(2) Turn the tester on.
(3) Select the following menu items: Select: Powertrain / Engine and ECT / Data List / MAF.
(4) Wait for 30 seconds, and read the values on the tester.
Standard value:
Less than 0.70 g/sec
(b) Inspect the mass air flow meter.
(1) Remove the mass air flow meter Components.
(2) Using a work light, check that the platinum filament (heater portion) in the mass air flow meter has no foreign matter attached.
OK:
No foreign matter attached.
(3) Reinstall the mass air flow meter Components.
NG -- REPLACE MASS AIR FLOW METER
OK -- Continue to next step.
7. CHECK FUEL PRESSURE
(a) Check the fuel pressure Testing and Inspection.
NG -- REPAIR OR REPLACE FUEL SYSTEM
OK -- Continue to next step.
8. CHECK FOR EXHAUST GAS LEAK
OK:
No gas leak.
NG -- REPAIR OR REPLACE EXHAUST SYSTEM
OK -- Continue to next step.
9. CHECK SPARK AND IGNITION
HINT:
- Refer to the ignition system inspection procedure Testing and Inspection.
- If the spark plugs or ignition system malfunctions, engine misfire may occur. The misfire count can be read using the Techstream. Select the following menu items: Powertrain / Engine and ECT / Data List / All Data / Cylinder #1 Misfire Rate (to Cylinder #6 Misfire Rate)
NG -- REPAIR OR REPLACE IGNITION SYSTEM
OK -- Continue to next step.
10. INSPECT FUEL INJECTOR ASSEMBLY (INJECTION AND VOLUME)
HINT:
- Refer to the fuel injector inspection procedure Testing and Inspection.
- If the injectors malfunction, engine misfire may occur. The misfire count can be read using the Techstream. Select the following menu items: Powertrain / Engine and ECT / Data List / All Data / Cylinder #1 Misfire Rate (to Cylinder #6 Misfire Rate).
NG -- REPLACE FUEL INJECTOR ASSEMBLY
OK -- Continue to next step.
11. INSPECT AIR FUEL RATIO SENSOR (HEATER RESISTANCE)
(a) Disconnect the air fuel ratio sensor connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Bank 1
Bank 2
(c) Reconnect the air fuel ratio sensor connector.
NG -- REPLACE AIR FUEL RATIO SENSOR
OK -- Continue to next step.
12. CHECK TERMINAL VOLTAGE (POWER SOURCE OF AIR FUEL RATIO SENSOR)
(a) Disconnect the air fuel ratio sensor connector.
(b) Turn the ignition switch on (IG).
(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:
Bank 1
Bank 2
(d) Reconnect the air fuel ratio sensor connector.
NG -- INSPECT FUSE (A/F FUSE)
OK -- Continue to next step.
13. CHECK HARNESS AND CONNECTOR (AIR FUEL RATIO SENSOR - ECM)
(a) Disconnect the air fuel ratio sensor connector.
(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance (Check for open):
Bank 1
Bank 2
Standard resistance (Check for short):
Bank 1
Bank 2
(d) Reconnect the ECM connector.
(e) Reconnect the air fuel ratio sensor connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
14. REPLACE AIR FUEL RATIO SENSOR
(a) Replace the air fuel ratio sensor Components.
NEXT -- Continue to next step.
15. PERFORM CONFIRMATION DRIVING PATTERN
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch on (IG).
(c) Turn the tester on.
(d) Clear DTCs DTC Check / Clear.
(e) Switch the ECM from normal mode to check mode using the tester Check Mode Procedure.
(f) Start the engine and warm it up with all the accessories switched OFF.
(g) Drive the vehicle at between 40 mph and 75 mph (64 km/h and 120 km/h) and at an engine speed of between 1400 rpm and 3200 rpm for 3 to 5 minutes.
HINT: If the system is still malfunctioning, the MIL will be illuminated during step (g).
NOTE: If the conditions in this test are not strictly followed, no malfunction will be detected.
NEXT -- Continue to next step.
16. CHECK WHETHER DTC OUTPUT RECURS (DTC P0171, P0172, P174 OR P0175)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch on (IG).
(c) Turn the tester on.
(d) Select the following menu items: Powertrain / Engine and ECT / Trouble Codes / Pending.
(e) Read DTCs.
Result:
B -- REPLACE ECM
A -- END
17. INSPECT FUSE (A/F FUSE)
(a) Remove the A/F fuse from the engine room relay block.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
(c) Reinstall the A/F fuse.
NG -- CHECK FOR SHORT IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE
OK -- Continue to next step.
18. INSPECT ENGINE ROOM JUNCTION BLOCK ASSEMBLY (A/F RELAY)
(a) Inspect the A/F relay Testing and Inspection.
NG -- REPLACE ENGINE ROOM JUNCTION BLOCK ASSEMBLY
OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (AIR FUEL RATIO FUSE - AIR FUEL RATIO SENSOR)
