2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2120,P2122,P2123,P2125,P2127,P2128,P2138: Throttle / Pedal Position Sensor / Switch "D" Circuit
DTC P2120 - Throttle / Pedal Position Sensor / Switch "D" Circuit
DTC P2122 - Throttle / Pedal Position Sensor / Switch "D" Circuit Low Input
DTC P2123 - Throttle / Pedal Position Sensor / Switch "D" Circuit High Input
DTC P2125 - Throttle / Pedal Position Sensor / Switch "E" Circuit
DTC P2127 - Throttle / Pedal Position Sensor / Switch "E" Circuit Low Input
DTC P2128 - Throttle / Pedal Position Sensor / Switch "E" Circuit High Input
DTC P2138 - Throttle / Pedal Position Sensor / Switch "D" / "E" Voltage Correlation
CAUTION / NOTICE / HINT
DESCRIPTION
HINT: This electronic throttle control system does not use a throttle cable.
The accelerator pedal position sensor is integrated with the accelerator pedal bracket and has 2 sensor circuits: VPA (main) and VPA2 (sub). This sensor is a non-contact type, and uses Hall-effect elements, in order to yield accurate signals, even in extreme driving conditions, such as at high speeds as well as very low speeds. The voltage, which is applied to terminals VPA and VPA2 of the ECM, varies between 0 V and 5 V in proportion to the operating angle of the accelerator pedal (throttle valve). A signal from VPA indicates the actual accelerator pedal opening angle (throttle valve opening angle) and is used for engine control. A signal from VPA2 conveys the status of the VPA circuit and is used to check the accelerator pedal position sensor itself.
The ECM monitors the actual accelerator pedal opening angle (throttle valve opening angle) through the signals from VPA and VPA2, and controls the throttle actuator according to these signals.
HINT: When any of these DTCs are set, check the accelerator pedal position sensor voltage by selecting the following menu items on the Techstream: Select the following menu items: Powertrain / Engine and ECT / Data List / Accel Sensor Out No. 1 and Accel Sensor Out No. 2.
HINT: Accelerator pedal positions are expressed as voltages.
MONITOR DESCRIPTION
When either of the voltage outputs of VPA or VPA2 deviates from the standard range, or the difference between the voltage outputs of the 2 sensor circuits is less than the threshold, the ECM determines that there is a malfunction in the accelerator pedal position sensor. The ECM then illuminates the MIL and sets a DTC.
Example:
When the voltage output of VPA drops below 0.4 V for more than 0.5 seconds when the accelerator pedal is fully depressed, DTC P2122 is set.
If the malfunction is not repaired successfully, a DTC is set 2 seconds after the engine is next started.
MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS

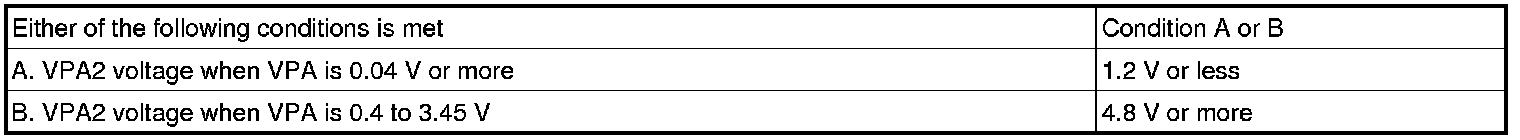

TYPICAL MALFUNCTION THRESHOLDS
P2120:
P2122:
P2123:
P2125:
P2127:
P2128:
P2138:
COMPONENT OPERATING RANGE
FAIL-SAFE
When any of DTCs P2120, P2121, P2122, P2123, P2125, P2127, P2128 and P2138 are set, the ECM enters fail-safe mode. If either of the 2 sensor circuits malfunctions, the ECM uses the remaining circuit to calculate the accelerator pedal position to allow the vehicle to continue driving. If both of the circuits malfunction, the ECM regards the accelerator pedal as being released. As a result, the throttle valve is closed and the engine idles.
Fail-safe mode continues until a pass condition is detected, and the ignition switch is turned off.
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT: Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
PROCEDURE
1. READ VALUE USING TECHSTREAM (ACCELERATOR PEDAL POSITION SENSOR)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch on (IG) and turn the tester on.
(c) Select the following menu items: Powertrain / Engine and ECT / Data List / Accel Sensor Out No. 1 and Accel Sensor Out No. 2.
(d) Read the values displayed on the tester.
Standard voltage:
Result:
B -- CHECK WHETHER DTC OUTPUT RECURS (ACCELERATOR PEDAL POSITION SENSOR DTCS)
A -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (ACCELERATOR PEDAL POSITION SENSOR - ECM)
(a) Disconnect the accelerator pedal position sensor connector.
(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Check for open
Check for short
(d) Reconnect the accelerator pedal position sensor connector.
(e) Reconnect the ECM connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (ACCELERATOR PEDAL POSITION SENSOR - ECM)
OK -- Continue to next step.
3. INSPECT ECM (VCPA AND VCP2 VOLTAGE)
(a) Disconnect the accelerator pedal position sensor connector.
(b) Turn the ignition switch on (IG).
(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:
(d) Reconnect the accelerator pedal position sensor connector.
NG -- REPLACE ECM
OK -- Continue to next step.
4. REPLACE ACCELERATOR PEDAL ROD
(a) Replace the accelerator pedal rod assembly Components.
NEXT -- Continue to next step.
5. CHECK WHETHER DTC OUTPUT RECURS (ACCELERATOR PEDAL POSITION SENSOR DTCS)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch on (IG) and turn the tester on.
(c) Clear the DTCs DTC Check / Clear.
(d) Start the engine.
(e) Allow the engine to idle for 15 seconds.
(f) Select the following menu items: Powertrain / Engine and ECT / Trouble Codes.
(g) Read the DTCs.
Result:
B -- SYSTEM OK
A -- REPLACE ECM
