CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

INSTALLATION

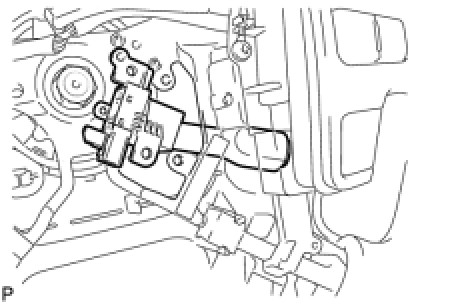

1. INSTALL CRUISE CONTROL MAIN SWITCH





(a) Install the switch.





(b) Install the 2 screws.





(c) Connect the connector and clamp.
2. INSTALL STEERING PAD Installation
3. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation
4. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
