Torque Specifications








SPECIFICATIONS: 3UR-FE COOLING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Cylinder Block Drain Cock Plug

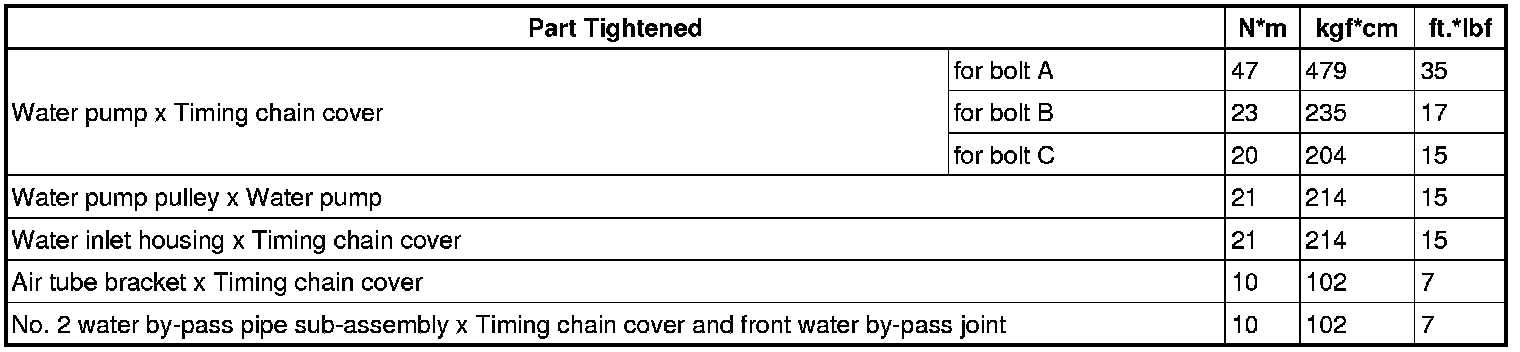

Water Pump

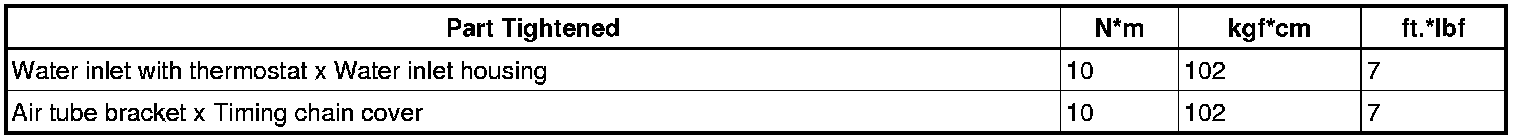

Thermostat

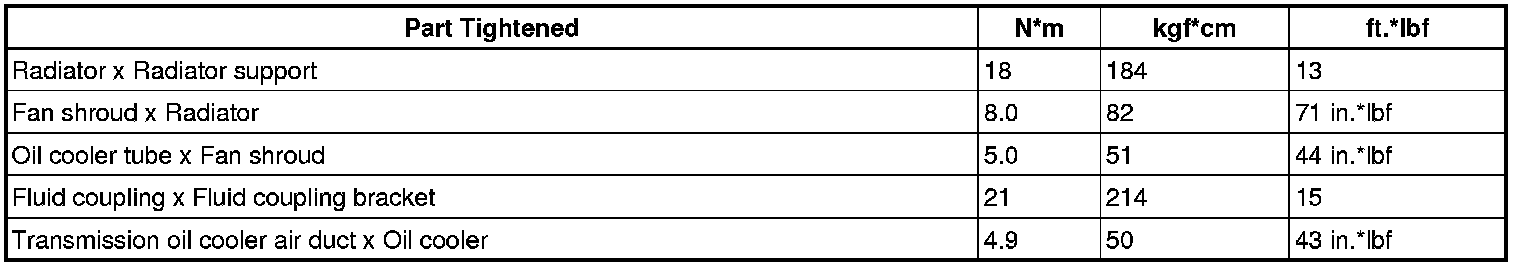

Radiator
