Power Distribution Module: Locations

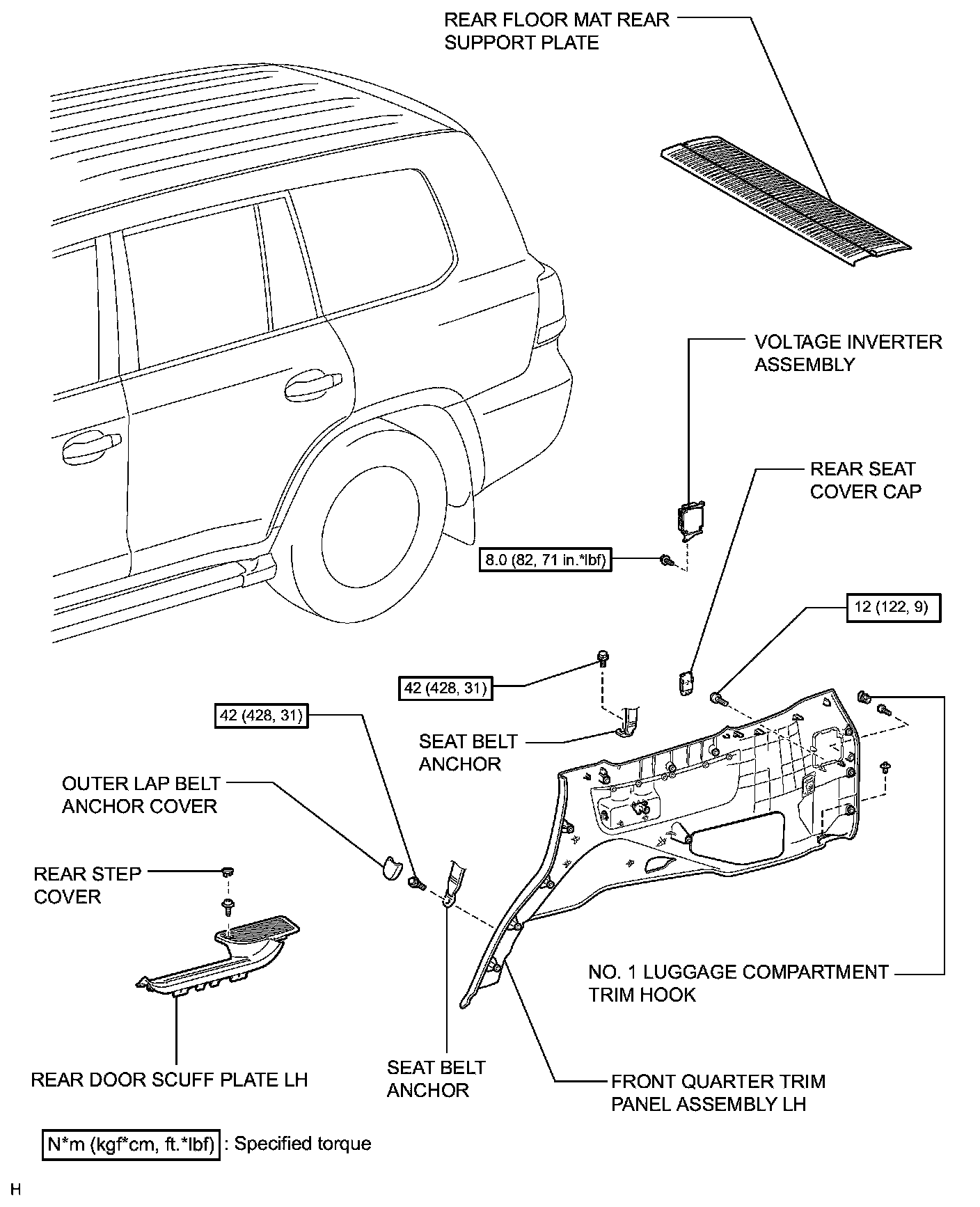

POWER OUTLETS (INT): VOLTAGE INVERTER: COMPONENTS
COMPONENTS
ILLUSTRATION
