Installation

3UR-FE STARTING: ENGINE SWITCH: INSTALLATION

INSTALLATION

1. INSTALL ENGINE SWITCH

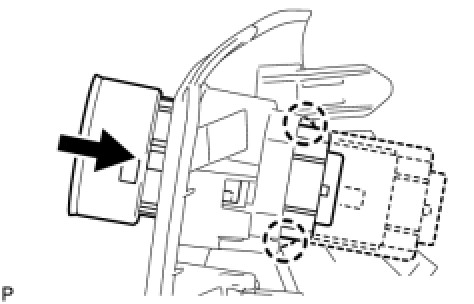

(a) Attach the 2 claws to install the switch.

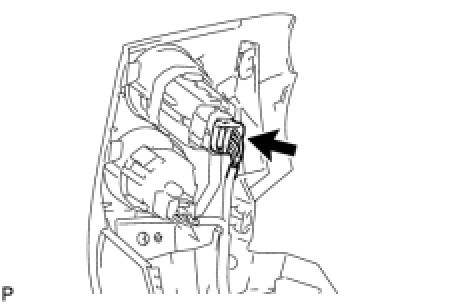

(b) Connect the switch connector.
2. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation
3. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
