Components








1NZ-FXE EMISSION CONTROL: FUEL TANK PRESSURE SENSOR: COMPONENTS

COMPONENTS

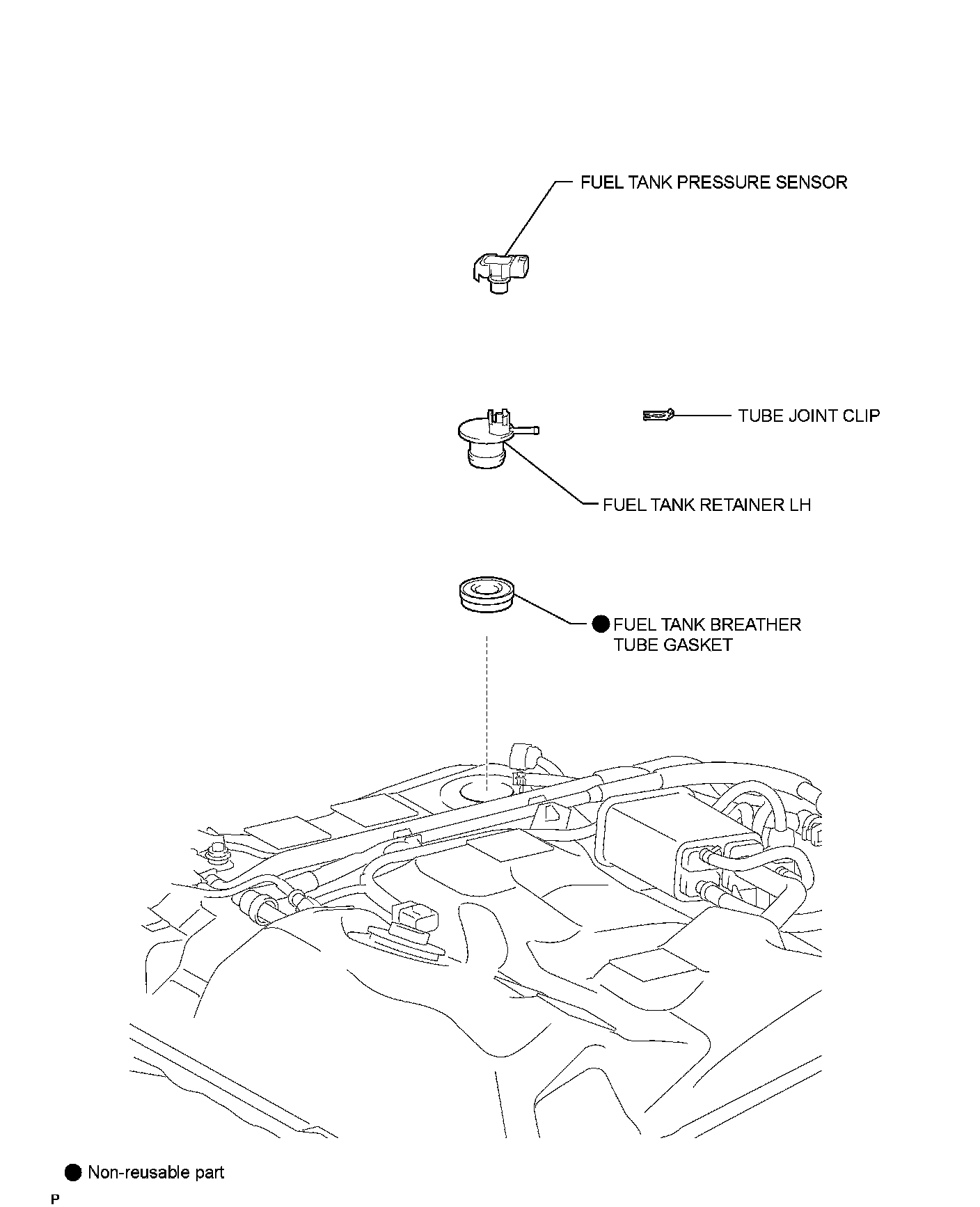

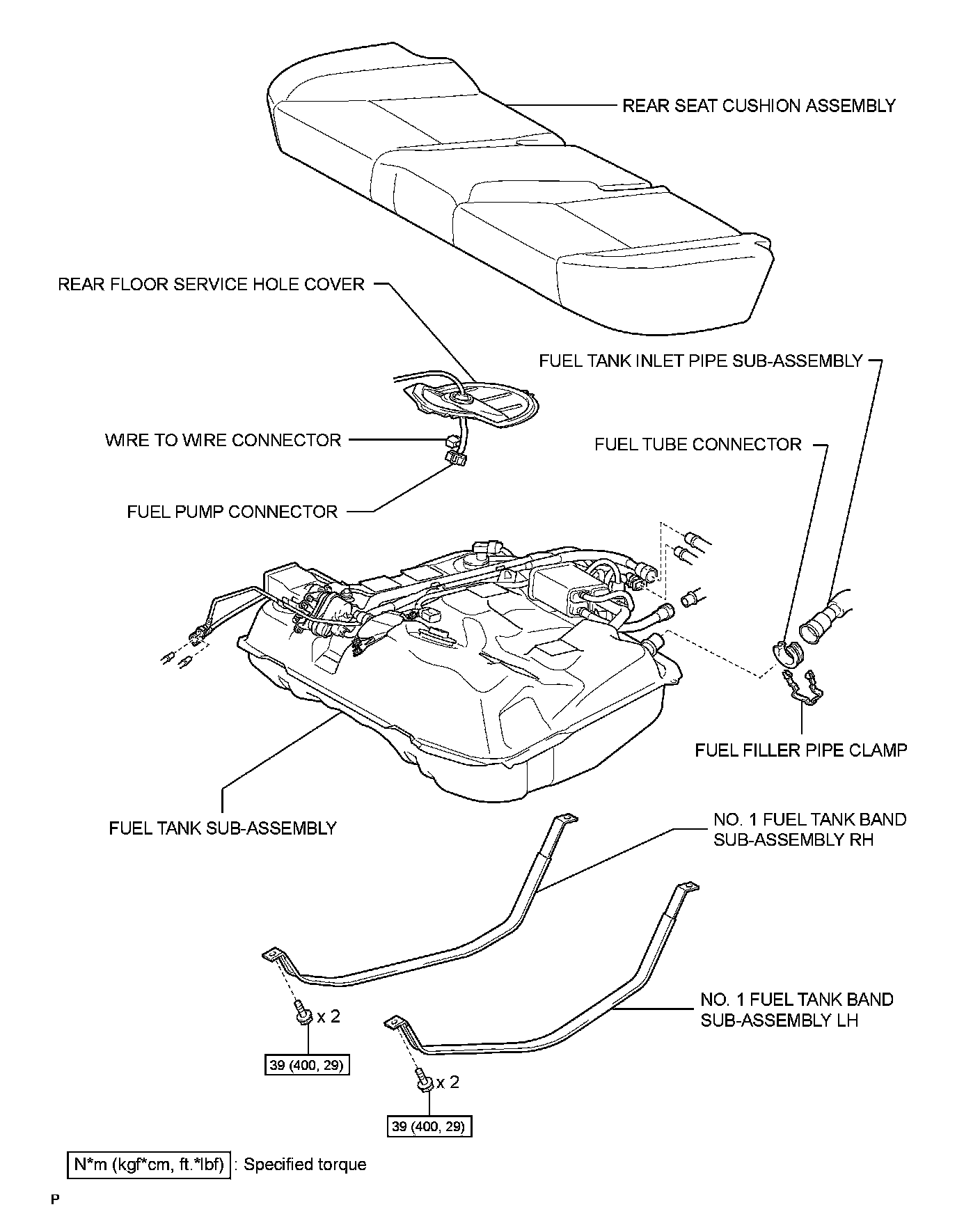

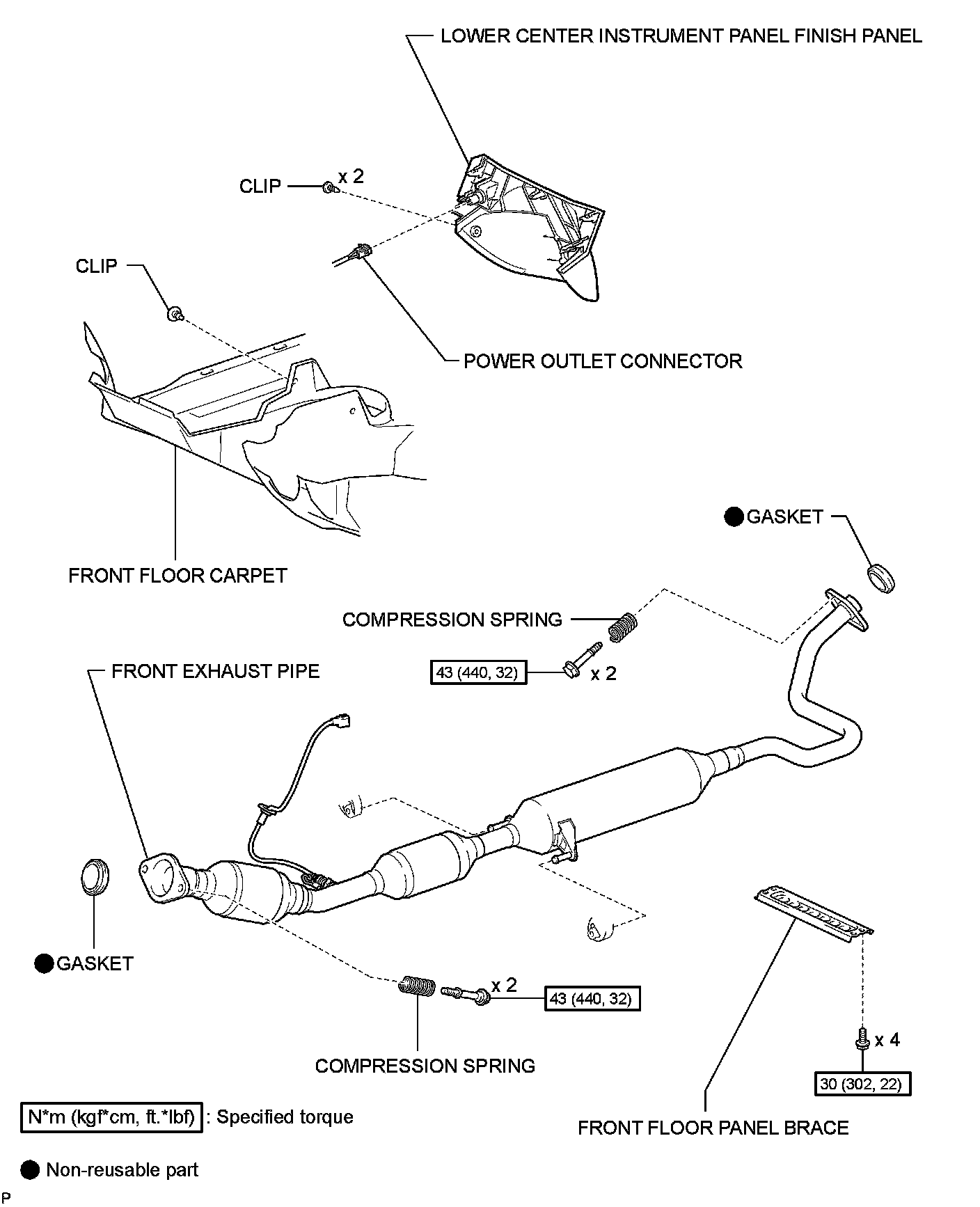

ILLUSTRATION
