Transmission Control Systems: Locations

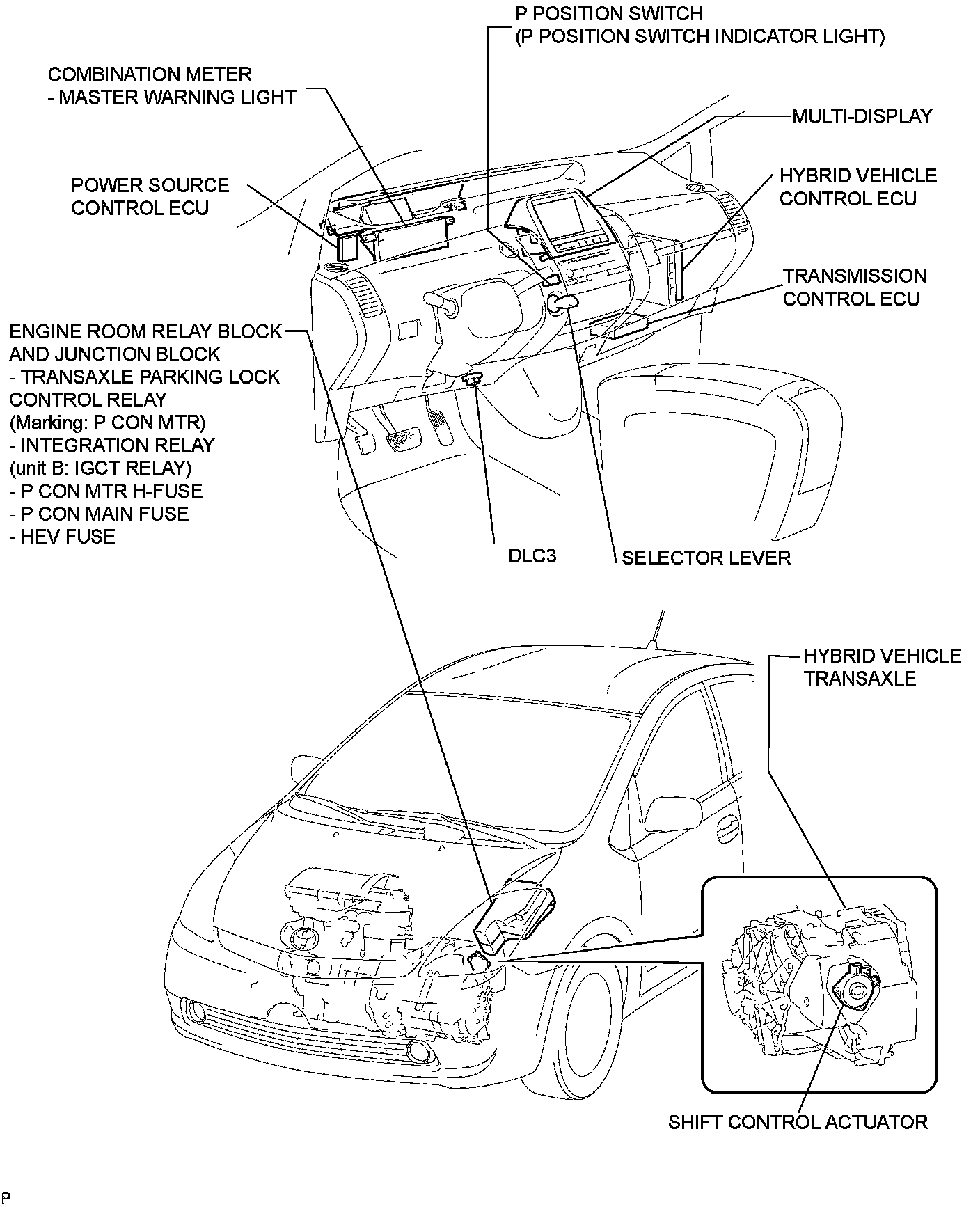

HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
