Trunk / Liftgate Lock: Testing and Inspection

DOOR LOCK: BACK DOOR LOCK: INSPECTION

INSPECTION

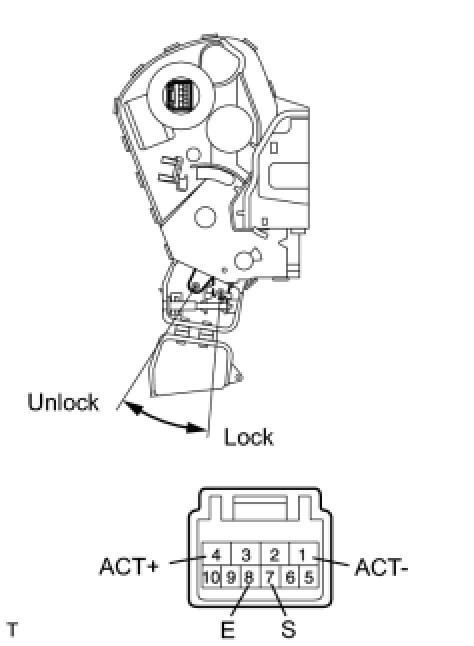

1. INSPECT BACK DOOR WITH MOTOR LOCK ASSEMBLY





(a) Apply the battery voltage to the door lock motor and check the operation of the door lock motor.

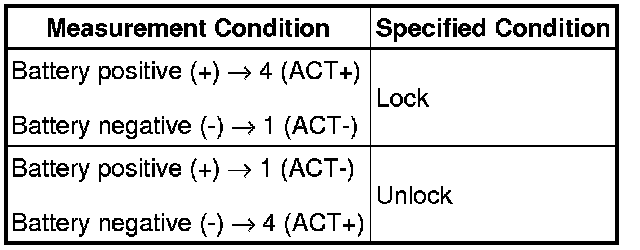

OK:





If the result is not as specified, replace the door lock assembly.

(b) Measure the resistance of the door lock position switch.
Standard resistance:





- If the result is not as specified, replace the door lock assembly.
